JST EH Series Right Angle Through Hole PCB Header, 11 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S11B-EH (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

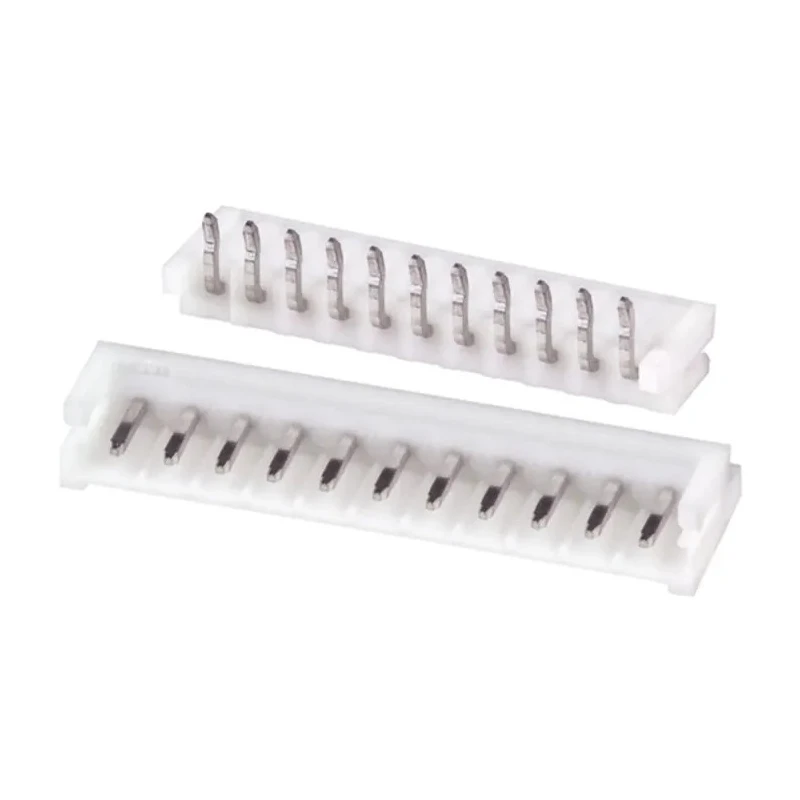

JST EH Series Right Angle Through Hole PCB Header, 11 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S11B-EH (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S11B-EH (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	11
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

This shrouded header ensures correct polarization with integral keying.
Designed for wire-to-board connection with solder termination type.
Constructed with polyamide housing and brass male contacts plated with tin.
Operates reliably between -25°C to 85°C with maximum voltage rating of 250V and current rating of 3A.
Features a mating pin length of 3.2 mm and right-angle orientation for compact PCB layouts.
Suitable for industrial electronics, PCB manufacturing, and assembly applications.

Product Description

The JST S11B-EH (LF) (SN) is a high-quality EH Series right angle through hole PCB header designed for robust electronic connections on printed circuit boards. Featuring 11 male contacts arranged in a single row with 2.5 mm pitch, this shrouded connector provides excellent mechanical stability and correct polarization through its integral keying system.

Manufactured with a durable polyamide housing and brass contacts plated in tin, the PCB header is ideal for wire-to-board applications where solder termination is required. It supports electrical currents up to 3 amperes and voltages up to 250 volts, making it suitable for a range of moderate power electronics environments.

The operating temperature range of -25°C to 85°C allows the connector to maintain performance under various thermal stresses often encountered in industrial, commercial, and manufacturing sectors. With a mating pin length of 3.2 mm and a right angle design, the connector facilitates compact PCB designs and efficient assembly.

Typical use cases include electronics component manufacturing, industrial automation systems, control panels, and instrumentation setups. The shrouded design enhances reliability by preventing misalignment and damage during mating and unmating cycles.

This shrouded PCB header ensures precise keying to prevent incorrect mating. The polyamide housing offers reliable insulation and mechanical resistance. Brass contacts plated with tin provide excellent conductivity and corrosion resistance.

Right angle configuration supports space-saving PCB layouts. Designed for through hole mounting and solder termination for secure attachment.

For engineers and assembly designers seeking durable, high performance PCB connectors, the JST EH Series S11B-EH (LF) (SN) offers an optimal solution with proven reliability and compliance with industrial standards.

Explore the full range of JST PCB connectors and enhance your PCB designs with trusted components from EnvMart.
