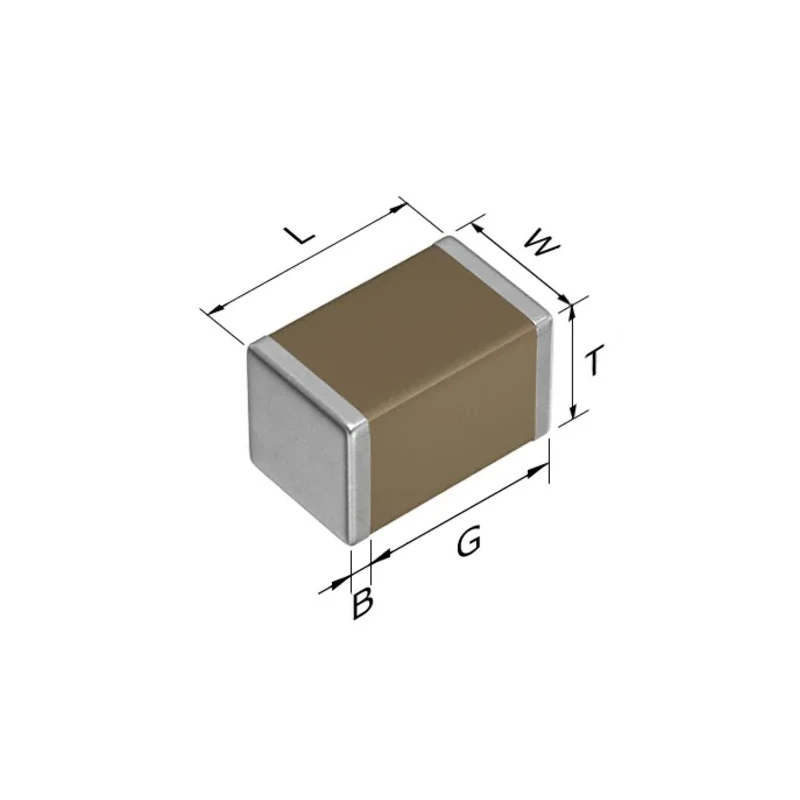

TDK 220 nF Multilayer Ceramic Capacitor, 50V DC, ±10% Tolerance, Surface Mount, X8R Dielectric CGA4J3X8R1H224K125AB

Free Delivery in India | Lowest Global Shipping Charges

TDK 220 nF Multilayer Ceramic Capacitor, 50V DC, ±10% Tolerance, Surface Mount, X8R Dielectric CGA4J3X8R1H224K125AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	1.25mm
Length	2mm
Model	CGA4J3X8R1H224K125AB
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±10 %
Capacitance	220nF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	X8R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

Compact 0805 package size suitable for surface mount applications.
X8R dielectric provides stable operation up to 150°C maximum temperature.
High reliability with AEC-Q200 automotive qualification for demanding environments.
Capable of operating in temperatures from -55°C to 150°C for extended durability.
Excellent DC bias characteristics suitable for smoothing, decoupling, and sensor modules.
Tape and reel packaging ensures efficient handling and automated assembly compatibility.
Surface mount termination enhances PCB integration and mechanical stability.
Class II suppression classification for intermediate dielectric properties.

Product Description

TDK CGA4J3X8R1H224K125AB is a high-quality multilayer ceramic capacitor designed for demanding electronic applications. With a capacitance of 220 nF and a rated voltage of 50V DC, this surface mount capacitor excels in delivering reliable performance with a tolerance of ±10%. Its compact 0805 package dimensions (2mm length, 1.25mm width, and height) make it ideal for dense PCB layouts in automotive and industrial electronics.

This capacitor utilizes an X8R dielectric material, enabling operation within the wide temperature range of -55°C to 150°C. It conforms to AEC-Q200 standards ensuring automotive-grade reliability suitable for harsh environments such as engine compartments. The device features excellent DC bias properties that maintain capacitance stability in various operating conditions.

Commonly used for smoothing, decoupling, and signal conditioning in sensor modules and peripheral circuits, it supports advanced semiconductor devices including IGDT, SiC, and GaN operating in high temperature settings. Supplied in tape and reel packaging, it supports automated SMT manufacturing processes.

Compact 0805 surface mount package for space-efficient design. Rated for 50V DC with ±10% capacitance tolerance. X8R dielectric suitable for high temperature operation up to 150°C. AEC-Q200 automotive standard compliance for quality assurance.

Temperature operating range from -55°C to 150°C. Excellent DC bias characteristics ensure stability under voltage stress. Tape and reel packaging compatible with automated assembly lines. Class II suppression class dielectric for intermediate capacitance stability.

Applications include automotive engine rooms, sensor modules, and high temperature power electronics.
