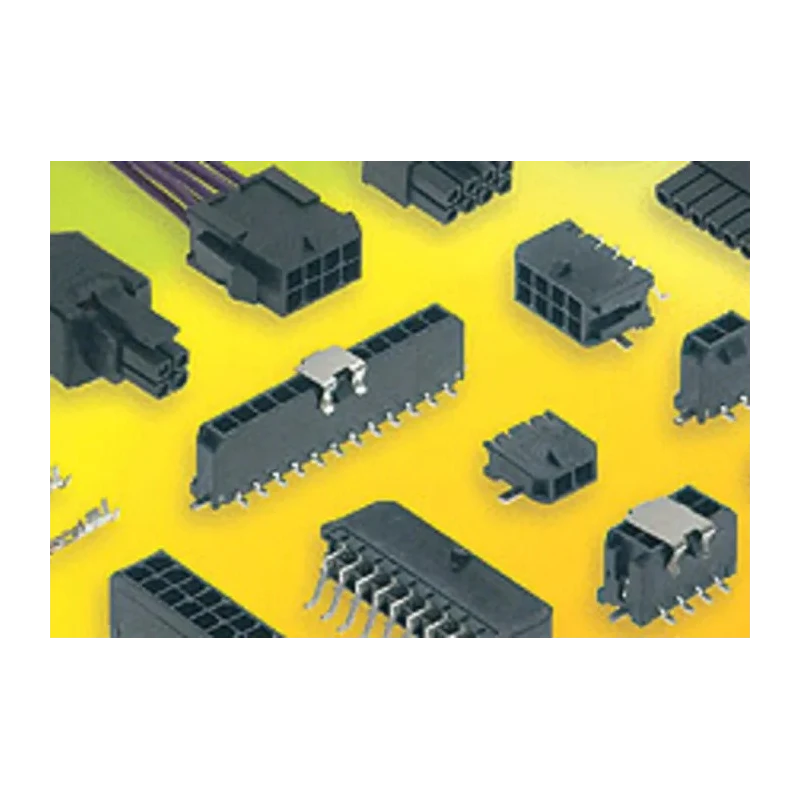

Molex Micro-Fit 3.0 Series Straight Surface PCB Socket 6-Contact 1 Row 3 mm Pitch Solder 43650-0625

Name: Molex Micro-Fit 3.0 Series Straight Surface PCB Socket 6-Contact 1 Row 3 mm Pitch Solder 43650-0625
Brand: Molex
SKU: 98484
Price: 3.89 USD
Availability: InStock



Category PCB Socket Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Straight
Current	8.5A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	PCB Header
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3mm
Contact Plating	Gold, Tin
Number of Contacts	6
Contact Gender	Male
Connector System	Power, Wire-to-Board

Key Features

This PCB socket features thermoplastic housing for durability and stability.
The connector system is designed for power and wire-to-board use, supporting a voltage of 600V.
It has a current rating of 8.5A and maximum operating temperature of 105°C.
Contact material is brass with gold and tin plating for corrosion resistance and conductivity.
The termination type is solder, ensuring reliable PCB mounting.
The socket offers straight orientation and surface mount type for easy integration on printed circuit boards.
Operating temperature range is from -40°C to 105°C, suitable for various industrial conditions.
The Micro-Fit 3.0 series connector is glow-wire capable and designed for rigorous power applications.

Product Description

Molex 43650-0625 Micro-Fit 3.0 Series Straight Surface PCB Socket is a specialized electronic component designed to provide reliable power connections in PCB assemblies. Featuring 6 contacts arranged in a single row at a 3 mm pitch, this solder termination socket supports currents up to 8.5A at voltages up to 600V. The thermoplastic housing offers excellent mechanical stability and durability, suitable for industrial and commercial electronic equipment.

The socket's brass contacts are plated with gold and tin to enhance conductivity and resist corrosion, ensuring long-term reliability in harsh operating environments. Its straight orientation and surface mount type facilitate straightforward PCB integration, making it compatible with automated assembly processes.

Designed to operate within a temperature range of -40°C to 105°C, this connector is ideal for demanding applications including power electronics, control systems, and industrial automation equipment. The Micro-Fit 3.0 series also features glow-wire capability, supporting safety standards in electrical assemblies.

Common use cases include industrial automation, electronic control units, power distribution modules, and other applications requiring compact, high-current PCB connectors. The combination of robust materials, precise pitch, and standardized configuration ensures compatibility with a broad range of devices.

This PCB socket features thermoplastic housing for durability and stability. The connector system is designed for power and wire-to-board use, supporting a voltage of 600V. It has a current rating of 8.5A and maximum operating temperature of 105°C.

Contact material is brass with gold and tin plating for corrosion resistance and conductivity. The termination type is solder, ensuring reliable PCB mounting. The socket offers straight orientation and surface mount type for easy integration on printed circuit boards.

Operating temperature range is from -40°C to 105°C, suitable for various industrial conditions. The Micro-Fit 3.0 series connector is glow-wire capable and designed for rigorous power applications. Discover high quality PCB Sockets and connectors at EnvMart for your electronic assembly and manufacturing needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The voltage rating for this PCB socket is 600V, making it suitable for power applications.

This model has a maximum current rating of 8.5A, allowing it to handle significant power loads.

The operating temperature range for this connector is from -40°C to 105°C, suitable for various industrial conditions.

The termination type for this socket is solder, ensuring reliable mounting on printed circuit boards.

The contacts in this model are arranged at a pitch of 3 mm, allowing for compact integration on PCBs.

This socket features 6 contacts arranged in a single row, providing multiple connection points.

The contact material is brass, plated with gold and tin for enhanced conductivity and corrosion resistance, while the housing is made of thermoplastic.

This connector has a straight orientation and is designed for surface mounting, facilitating easy integration into PCB designs.

Yes, the Micro-Fit 3.0 series connector is glow-wire capable, which supports safety standards in electrical assemblies.

This socket is suitable for applications including industrial automation, electronic control units, and power distribution modules.

The country of origin for this PCB socket is India.

The contacts in this connector are configured in a single row, with a total of 6 contacts, designed for power and wire-to-board connections.
