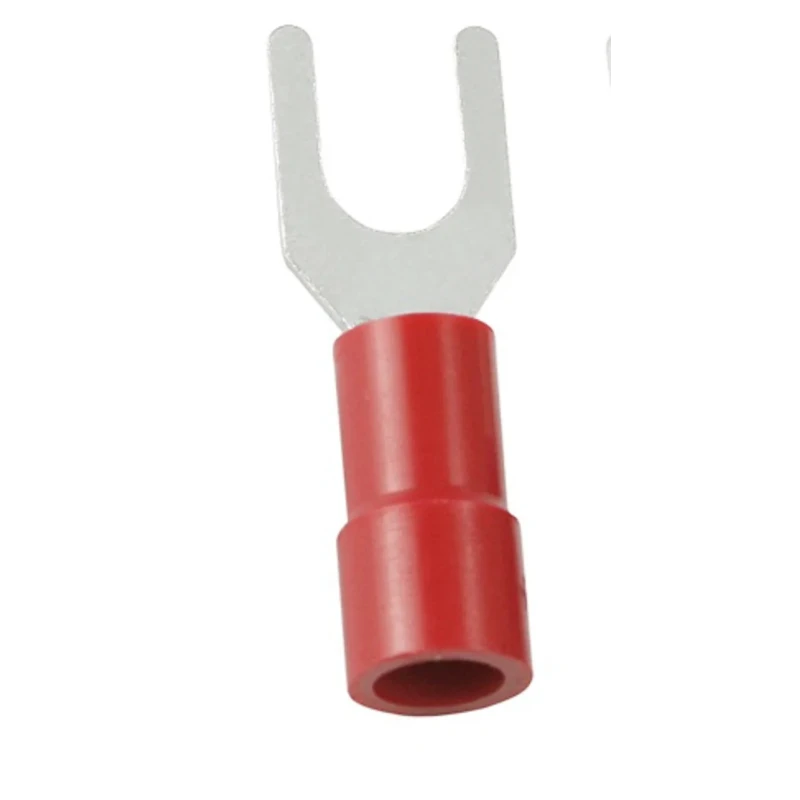

RS PRO SVY Insulated Crimp Spade Connector 22 AWG to 16 AWG, 4.3 mm Stud Size, Vinyl Insulation, Red 178-8732

Free Delivery in India | Lowest Global Shipping Charges

RS PRO SVY Insulated Crimp Spade Connector 22 AWG to 16 AWG, 4.3 mm Stud Size, Vinyl Insulation, Red 178-8732

Name: RS PRO SVY Insulated Crimp Spade Connector 22 AWG to 16 AWG, 4.3 mm Stud Size, Vinyl Insulation, Red 178-8732
Brand: RS PRO
SKU: 98443
Price: 0.11 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
THICKNESS	0.75mm
Model	178-8732
Width	7.2mm
Insulation	Insulated
Overall Length	22mm
Contact Material	Copper
Series	SVY
Insulation Material	Vinyl
Maximum Temperature Range	105°C
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Stud Size	4.3 mm

Key Features

Features vinyl insulation for reliable electrical isolation and protection.
Constructed with copper contact material for excellent conductivity.
Connector has an overall length of 22 mm and thickness of 0.75 mm providing durability.
Supports wire sizes from 0.5 mm² (22 AWG) up to 1.5 mm² (16 AWG).
Designed for use with a stud size of 4.3 mm for secure fastening.
Colour coded red vinyl insulation enables easy identification.
Operates safely up to a maximum temperature of 105°C.
Non-hooked design suitable for various electronic component applications.

Product Description

RS PRO 178-8732 is an insulated crimp spade connector tailored for efficient electrical connections in applications requiring wire sizes between 22 AWG and 16 AWG. Featuring a 4.3 mm stud size, this connector provides a secure and reliable spade connection suitable for diverse electronics and electrical tasks.

The vinyl insulation offers excellent electrical isolation and mechanical protection, enhancing safety and durability in demanding environments. Copper contact material ensures optimal conductivity and minimal resistance throughout the connection.

With a compact overall length of 22 mm and thickness of 0.75 mm, the connector is designed for ease of installation and long-lasting performance. The red insulation aids in quick wire gauge identification and wiring consistency across installations.

This connector operates effectively within a temperature range up to 105°C, making it suitable for industrial, electronics manufacturing, laboratory, automotive, and HVAC electrical wiring applications.

Vinyl insulated for electrical protection and durability. Copper contacts for excellent electrical conductivity. Fits wire sizes from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²). 4.3 mm stud size ensures secure mechanical fastening.

Overall length of 22 mm with 0.75 mm thickness. Non-hooked spade style for versatile wiring needs. Colour coded red for quick identification. Operates at maximum temperatures up to 105°C. Manufactured in Taiwan, Province Of China adhering to quality control standards.

This high-quality RS PRO insulated crimp Spade Connector is ideal for technicians and engineers seeking reliable electrical terminations in industrial, laboratory, construction, and maintenance applications. It supports secure, insulated wire connections with suitability for commercial and manufacturing electrical assembly tasks.
