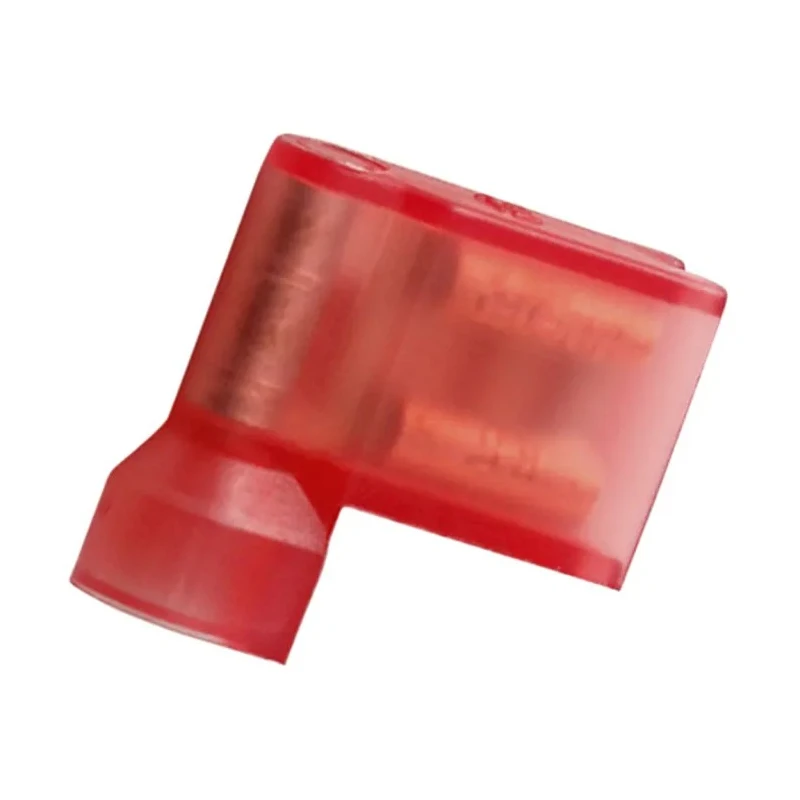

RS PRO Red Insulated Female Spade Connector, Crimp Termination, 0.8 x 6.35 mm Tab Size, 22 AWG to 18 AWG, 300 V 178-8343

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector, Crimp Termination, 0.8 x 6.35 mm Tab Size, 22 AWG to 18 AWG, 300 V 178-8343

Name: RS PRO Red Insulated Female Spade Connector, Crimp Termination, 0.8 x 6.35 mm Tab Size, 22 AWG to 18 AWG, 300 V 178-8343
Brand: RS PRO
SKU: 98419
Price: 0.11 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	300 V max
Brand	RS PRO
Colour	Red
Orientation	Angled
Model	178-8343
Gender	Female
Insulation	Insulated
Overall Length	16mm
Contact Material	Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	0.75mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Per Unit, RS stock no	178-8343
RS stock no	270-7589
Tab Width	6.35mm
Tab Thickness	0.8mm
Tab Size	0.8 x 6.35 mm

Key Features

The connector features brass contacts with tin plating for reliable conductivity.
It is insulated with durable nylon material providing enhanced safety and protection.
The angled female spade design facilitates easy installation especially in confined spaces.
Its red color coding simplifies identification of correct wire gauge during electrical setup.
The overall length of the connector is 16 mm for precise fitting.
Ideal for automotive, electrical servicing, and industrial wiring applications.
The nylon insulation protects connections from dust, liquids, and electrical mishaps.
Designed for easy crimp termination using standard crimping pliers.

Product Description

RS PRO 178-8343 Red Insulated Female Spade Connector is a high-quality crimp termination electrical component designed for reliable and safe wire connections. Featuring brass contacts with tin plating, this connector ensures excellent conductivity and corrosion resistance. The full nylon insulated housing safeguards against electrical shorts and environmental contaminants, making it suitable for industrial, automotive, and electrical servicing applications.

This female spade connector has an angled design to facilitate easier crimping and installation in tight spaces. It supports wire sizes from 22 AWG to 18 AWG, corresponding to 0.5 mm² to 0.75 mm², and is rated for voltages up to 300 V max. The connector measures an overall length of 16 mm and is color-coded red for instant wire gauge identification.

The nylon insulation acts as a protective shield against dust, liquids, and mechanical damage ensuring long-term durability and electrical safety in demanding environments. Its simple crimp termination method enables quick, robust connections using common crimping pliers without need for soldering.

This product is ideal for use in automotive wiring harnesses, electronic assemblies, power connectors, and general electrical wiring tasks requiring dependable insulated female spade connectors.

Brass contact material with tin plating provides reliable electrical performance. Durable nylon insulation offers protection from environmental factors. Angled female spade design facilitates ease of crimping in restricted spaces.

Red color coding for quick wire gauge identification. Supports 22 AWG to 18 AWG wire sizes ensuring versatility. Voltage rating of 300 V max suitable for multiple electrical applications. Overall length of 16 mm fits standard terminal configurations.

Crimp termination enables fast and secure connections. Explore RS PRO products for comprehensive electronics components and Spade Connector solutions on EnvMart.
