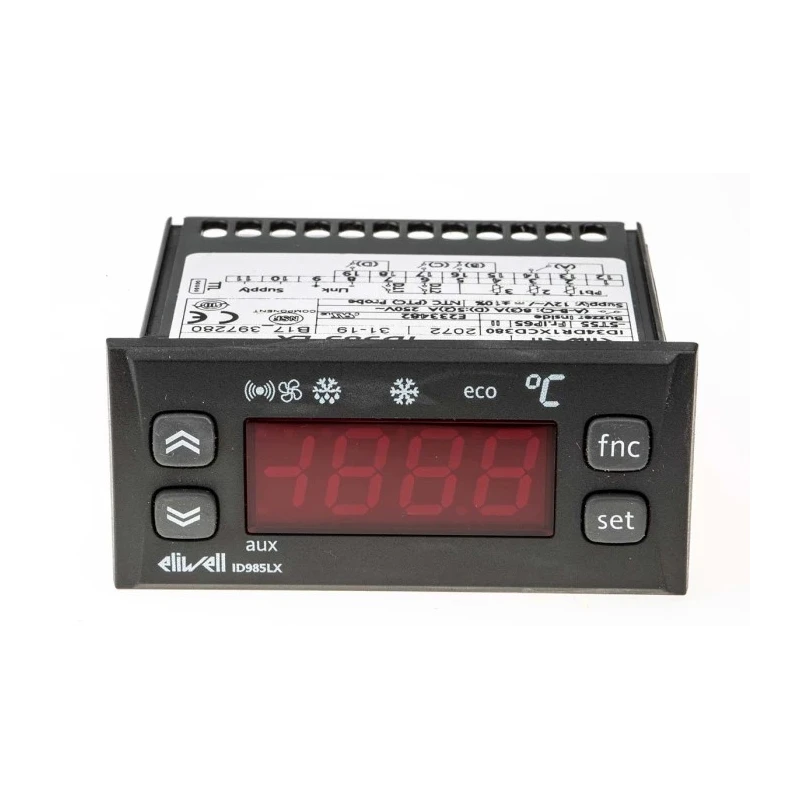

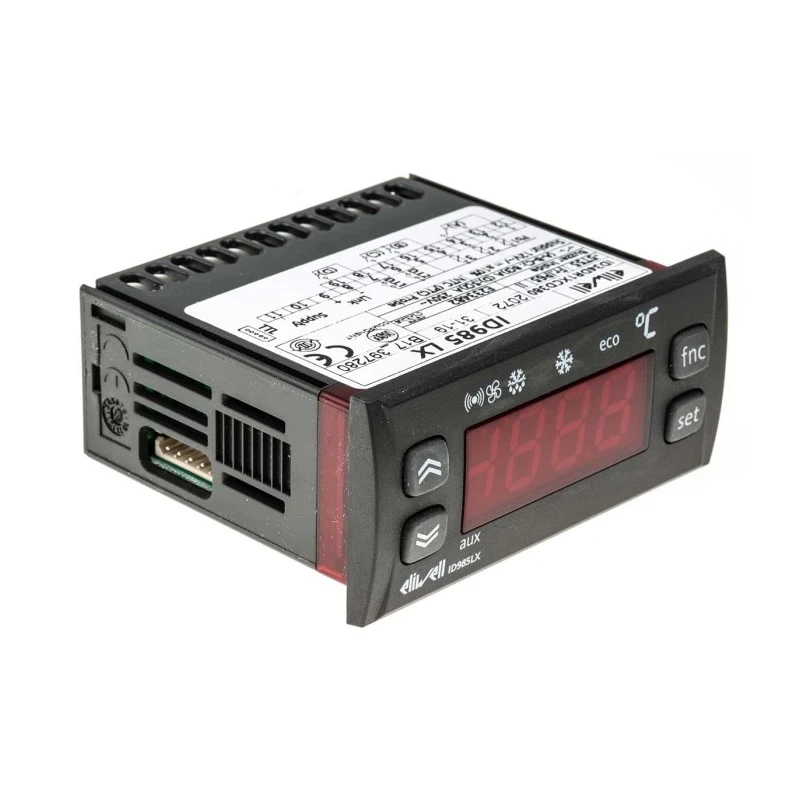

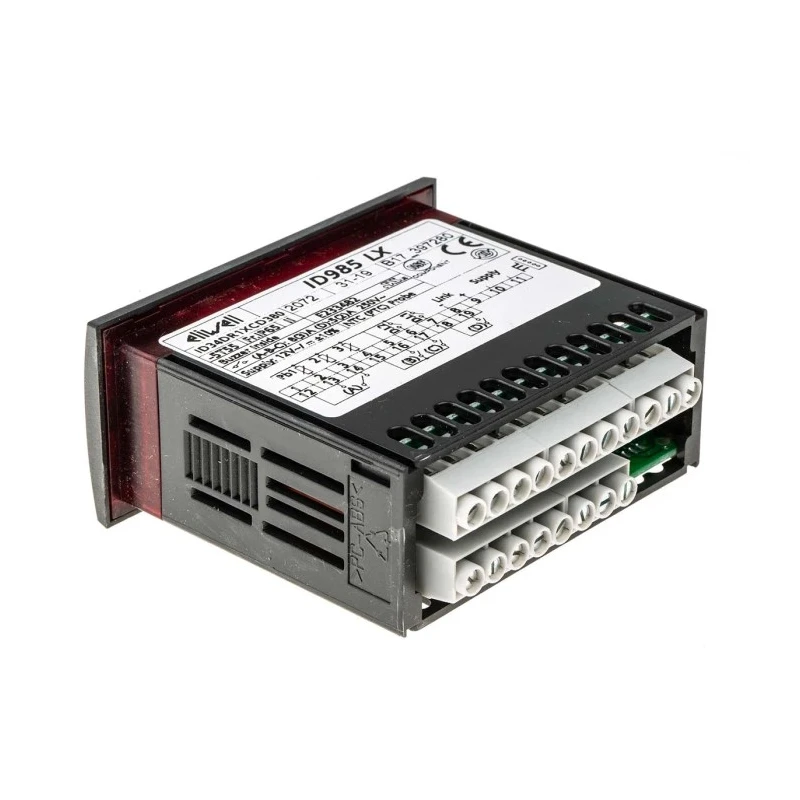

Eliwell On-Off Panel Mount Temperature Controller 2 Input, 4 Output Relay 230 V AC 16 A ID 985 LX-12V-8A-PTC
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | Sign, 3-1/2 Digit |
| Brand | Eliwell |
| Length | 74mm |
| Model | ID 985 LX-12V-8A-PTC |
| IP Rating | IP65 |
| Width | 32mm |
| Mount Type | Panel Mount |
| Number of inputs | 2 |
| Output type | Relay Output for Compressor and Defrost Management |
| Series | ID 985LX |
| Input Type | Two PTC Thermostatic Probe Input (NTC Can Be Selected By Parameter) |
| Maximum Operating Temperature | 55°C |
| Control Type | Temperature Control |
| Minimum Operating Temperature | -5°C |
| Maximum Current | 16A |
| Number of outputs | 4 |
| Terminal type | Screw |
| Maximum Voltage | 12V ac/dc |
| Standards/Approvals | UL94V-0 |
| Maximum Supply Voltage | 230V ac |
| Digital Comms | TTL (Copy Card) |
| Panel Depth | 60mm |
| Standard housing | 32 x 74 mm |
Key Features
- Equipped with 2 PTC thermostatic probe inputs; NTC selection available by parameter.
- Includes 4 relay outputs supporting compressor and defrost control.
- Operates at a maximum supply voltage of 230 V AC with a maximum current rating of 16 A.
- Features an IP65 rated front panel ensuring protection against dust and water ingress.
- Digital TTL communication interface supports Copy Card and TelevisSystem or Modbus protocols.
- Robust screw terminal connections for secure wiring.
- UL94V-0 standard housing material for fire resistance.

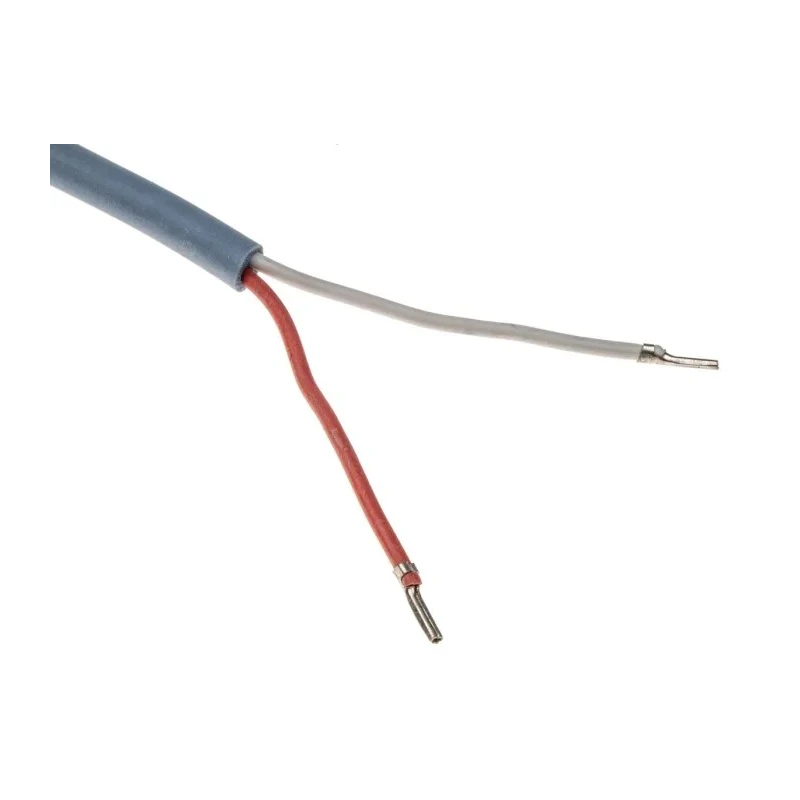

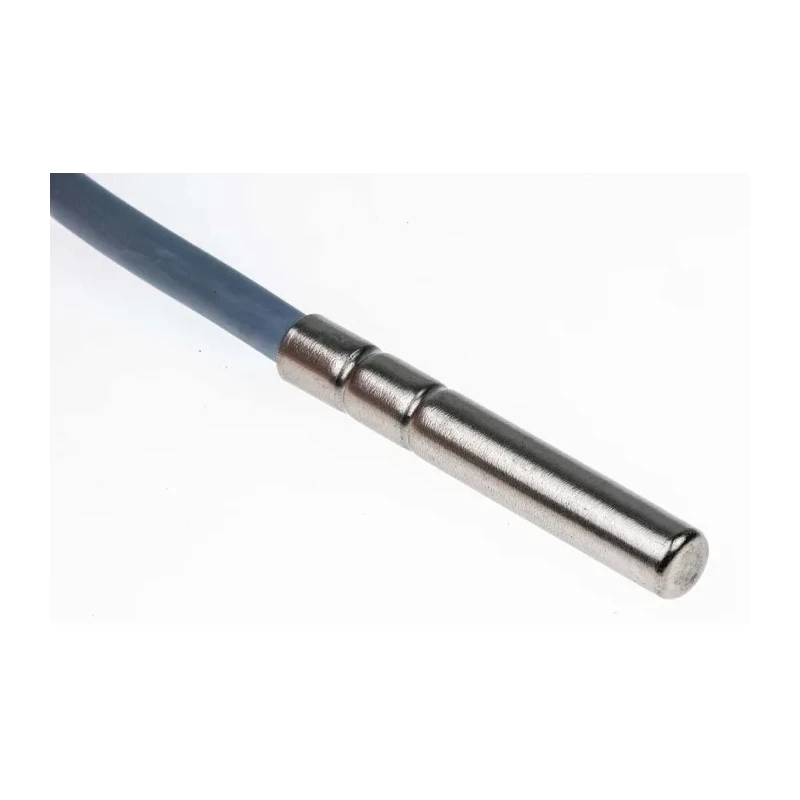

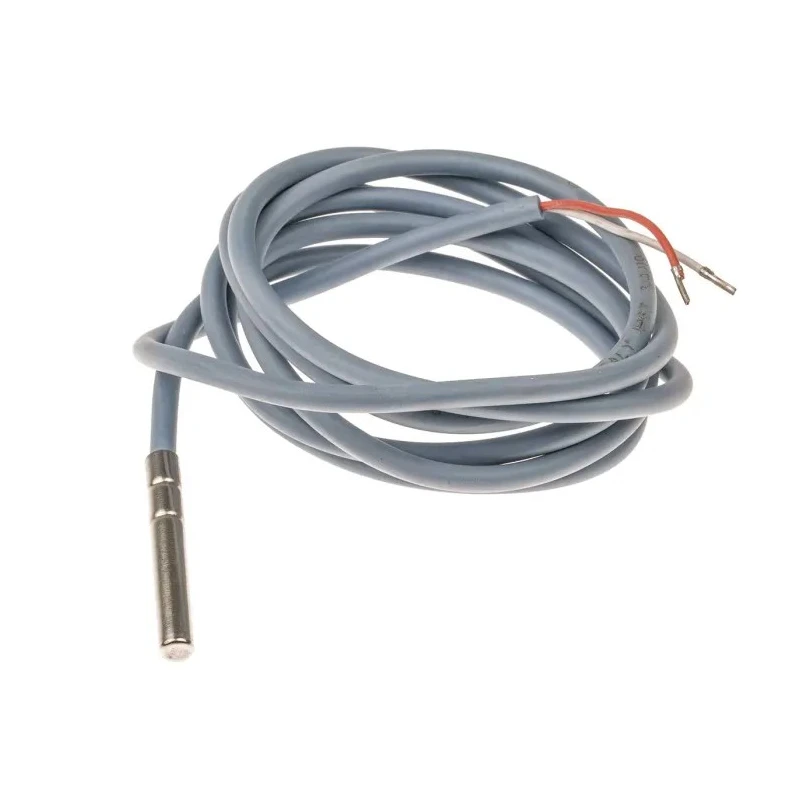

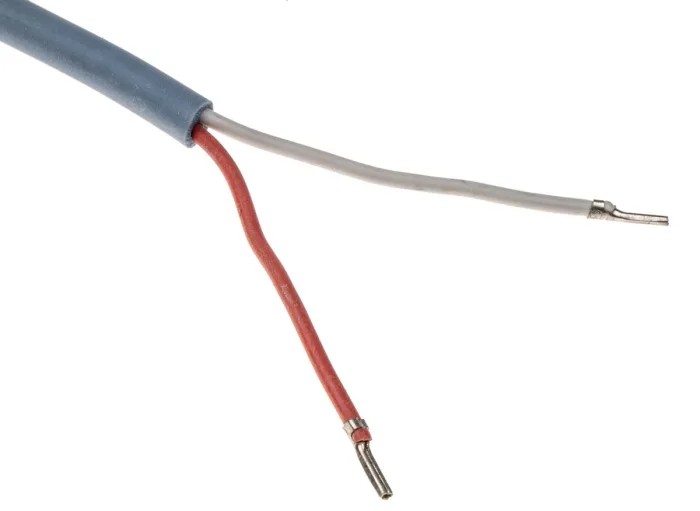

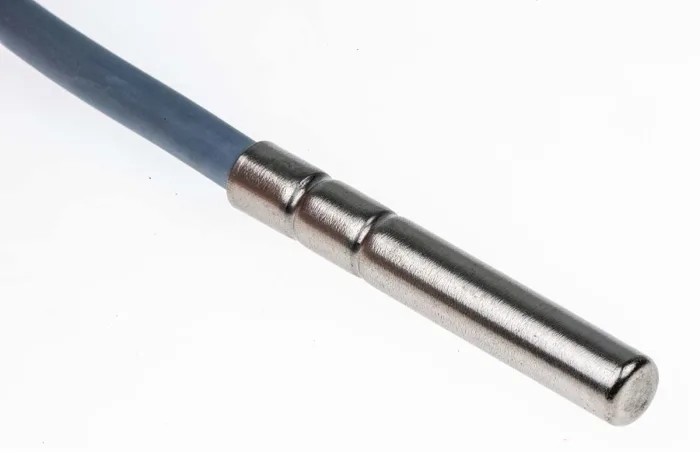

- Includes a temperature sensor within the delivery scope.
Product Description
Eliwell ID 985 LX-12V-8A-PTC is a new industrial-grade On-Off temperature controller designed for panel mounting, tailored specifically for refrigeration applications such as supermarkets and commercial refrigeration systems. This controller features two PTC thermostatic probe inputs (configurable for NTC), and four relay outputs to manage compressors, defrost cycles, alarms, and on/off control.
The device operates with a maximum supply voltage of 230 V AC and supports a maximum current load of 16 A. It is built with a durable UL94V-0 rated housing material measuring 74 mm by 32 mm with a panel depth of 60 mm, providing an IP65 rated front panel to safeguard against dust and moisture, ensuring reliable operation in demanding industrial and commercial environments.
Key operational features include a clear LED display with 3-1/2 digit sign and 12.5 mm digit height, four control keys for status and programming, and a decimal point indicator. Data persistence is ensured using non-volatile EEPROM memory, maintaining configuration even during power outages.
This temperature controller incorporates a TTL communication port compatible with Copy Card, TelevisSystem, and Modbus protocols for seamless system integration and remote management. The product includes a temperature sensor in the scope of delivery, enabling immediate deployment.
Equipped with 2 PTC thermostatic probe inputs; NTC selection available by parameter. Includes 4 relay outputs supporting compressor and defrost control. Maximum supply voltage of 230 V AC and current rating of 16 A. IP65 rated front panel for environmental protection.
Compact housing dimensions for efficient panel integration. Digital TTL communication port for protocol-based control. Durable UL94V-0 flame retardant housing material. Data storage via non-volatile EEPROM memory. Temperature sensor included in the package.
This temperature controller is ideal for industrial, commercial refrigeration, HVAC, and food preservation applications requiring precise temperature management and reliable compressor/defrost switching. Its rugged design and communication capabilities make it suitable for integration into advanced automation and control systems.
Explore more high-quality Temperature Controllers and industrial control gear at EnvMart, your trusted source for reliable automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 230 V AC.
It features two inputs, specifically designed for PTC thermostatic probes, with the option to select NTC by parameter.
The maximum current rating is 16 A.
This unit includes four relay outputs for managing compressor and defrost cycles.
The display type is a 3-1/2 digit sign with a digit height of 12.5 mm.
The housing dimensions are 74 mm in length, 32 mm in width, and a panel depth of 60 mm.
The front panel has an IP65 rating, providing protection against dust and water ingress.
The operating temperature range is from -5°C to a maximum of 55°C.
It supports a TTL communication interface compatible with Copy Card and Modbus protocols.
This model uses robust screw terminal connections for secure wiring.
Yes, a temperature sensor is included in the delivery scope of this model.
The housing material complies with the UL94V-0 standard for fire resistance.
