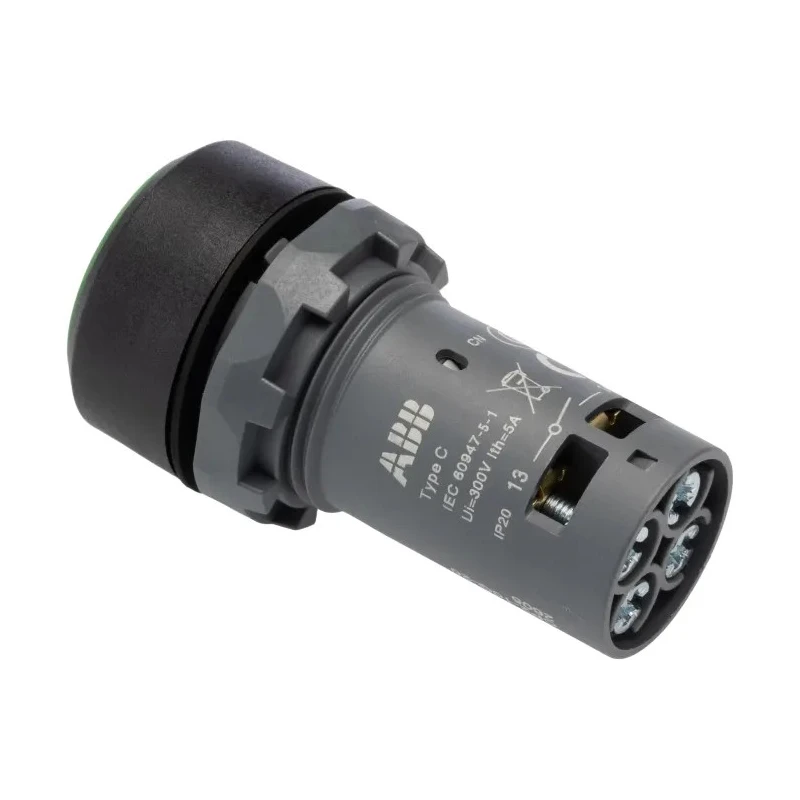

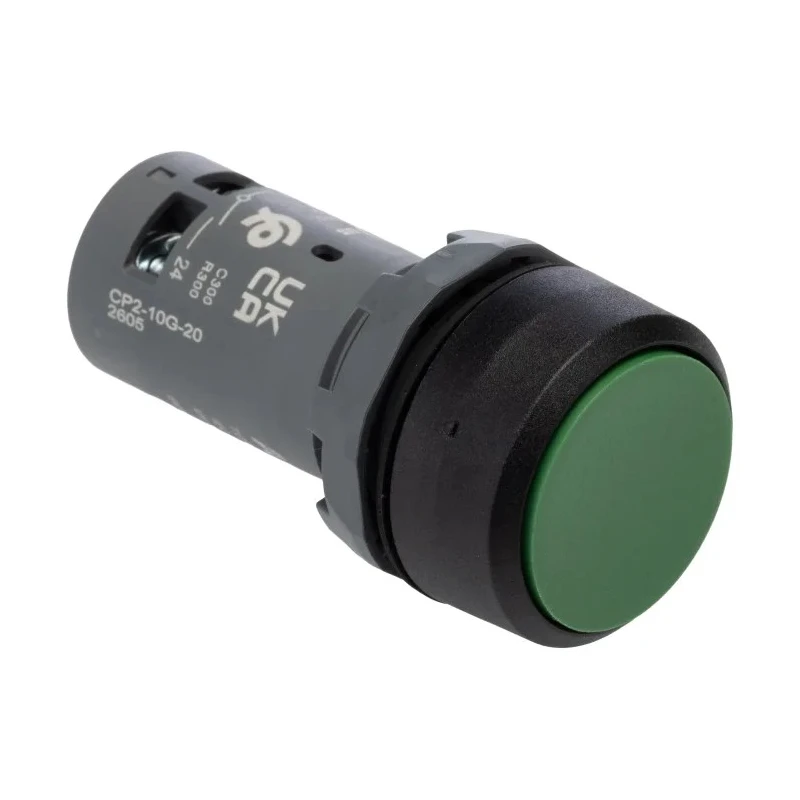

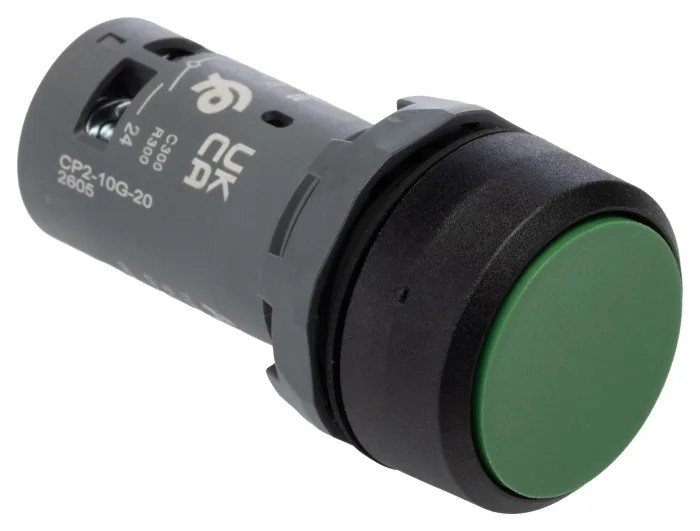

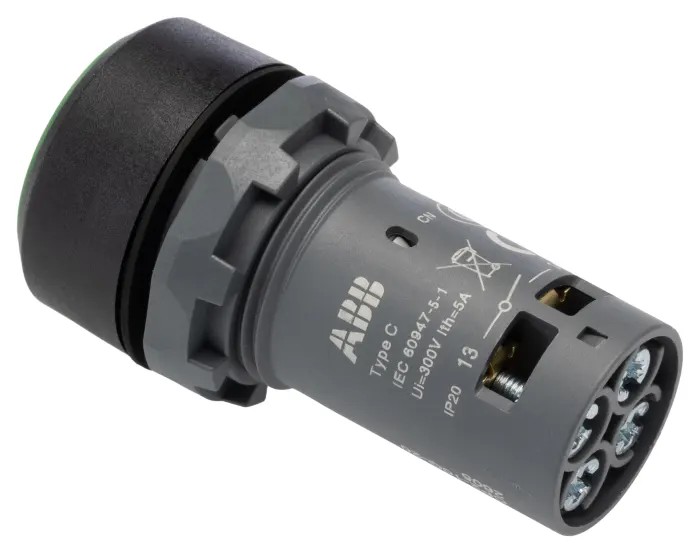

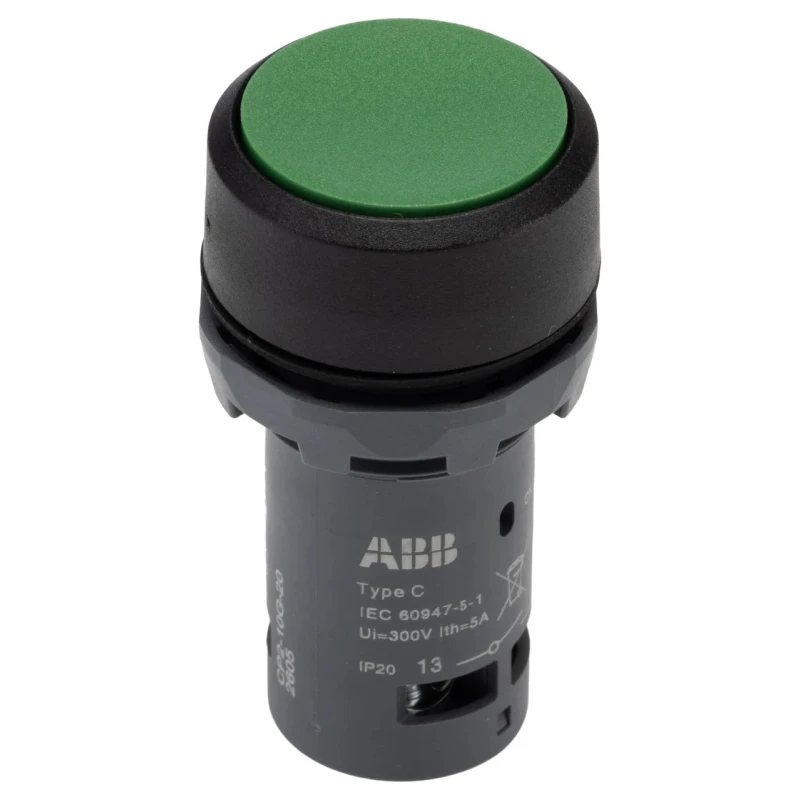

ABB Compact Series Push Button Switch Maintained DPST 22 mm Panel Cutout 2A 125V DC 230V AC IP20 IP66 IP67 IP69K CP2-10G-20
Specifications
| Country of Origin | China |
|---|---|
| Brand | ABB |
| Height | 30mm |
| Length | 55mm |
| Model | CP2-10G-20 |
| IP Rating | IP20, IP66, IP67, IP69K |
| Width | 30mm |
| Mount Type | Panel |
| Series | Compact |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| Standards/Approvals | IEC 947-5-5EN 60204 |
| Switch Operation | Maintained |
| Actuator Colour | Green |
| Contact DC Voltage | 125V |
| Actuator Style | Round |
| Switch Contact Current | 2A |
| Contact AC Voltage | 230V ac |
Key Features
- The green round actuator provides clear visual identification without illumination.
- Maintained operation ensures stable latched state after actuation.
- DPST contact arrangement offers simultaneous dual-circuit control.
- Rated for 230V AC and 125V DC switching for versatile control.
- Screw terminals enable reliable electrical connections.
- Ingress protection IP20, IP66, IP67, and IP69K suited for harsh environment resilience.
- Operating temperature range from -25°C to 70°C for robust industrial use.
- Conforms to IEC 947-5-5 and EN 60204 for electrical safety compliance.
Product Description
ABB CP2-10G-20 Compact Series push button switch provides a rugged and reliable maintained on/off control solution, designed for panel mounting with a 22 mm cutout size. Featuring a green round actuator, this push button switch offers effortless visual identification without illumination.
The DPST (Double Pole Single Throw) contact configuration allows simultaneous dual-circuit control, suitable for diverse industrial applications requiring stable latched states. With a contact current rating of 2A, it supports switching voltages up to 230V AC and 125V DC, enabling use in both AC and low-voltage DC control circuits.
The device includes screw terminals for secure conductor connections and meets international safety standards IEC 947-5-5 and EN 60204, ensuring dependable performance. Its wide operating temperature range from -25°C to 70°C and ingress protection ratings IP20, IP66, IP67, and IP69K provide resistance against dust, water jets, and even steam cleaning environments, making it ideal for challenging industrial settings.
Common applications include factory automation control panels, motor start/stop circuits, dual-circuit switching with relays and contactors, electrical distribution kiosks, and equipment interfaces requiring wash-down capabilities such as food processing plants.
The green round actuator provides clear visual identification without illumination. Maintained operation ensures stable latched state after actuation. DPST contact arrangement offers simultaneous dual-circuit control. Rated for 230V AC and 125V DC switching for versatile control.
Screw terminals enable reliable electrical connections. Ingress protection IP20, IP66, IP67, and IP69K suited for harsh environment resilience. Operating temperature range from -25°C to 70°C for robust industrial use. Conforms to IEC 947-5-5 and EN 60204 for electrical safety compliance.
This Compact Series push button switch by ABB is essential for reliable industrial control and automated systems, providing durability and performance in demanding applications. Explore more switch solutions and industrial controls from ABB at EnvMart for professional automation needs.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch features a DPST (Double Pole Single Throw) contact configuration, allowing for simultaneous dual-circuit control.
This model has ingress protection ratings of IP20, IP66, IP67, and IP69K, making it suitable for various harsh environments, including those exposed to dust and water.
The operating temperature range for this switch is from -25°C to 70°C, allowing it to function effectively in a wide variety of industrial conditions.
It is rated for switching voltages of up to 230V AC and 125V DC, with a contact current rating of 2A.
This switch uses screw terminals for secure and reliable electrical connections.
The required panel cutout size for installation is 22 mm.
It conforms to IEC 947-5-5 and EN 60204, ensuring compliance with international electrical safety standards.
The actuator style is round, and it is colored green for clear visual identification without illumination.
This model is designed for panel mounting, making it suitable for various industrial applications.
Common applications include factory automation control panels, motor start/stop circuits, and equipment interfaces requiring wash-down capabilities, such as in food processing plants.
The dimensions of this switch are 55 mm in length, 30 mm in width, and 30 mm in height.
The maintained operation feature ensures a stable latched state after actuation, which is beneficial for applications requiring consistent control without needing to hold the button down.
