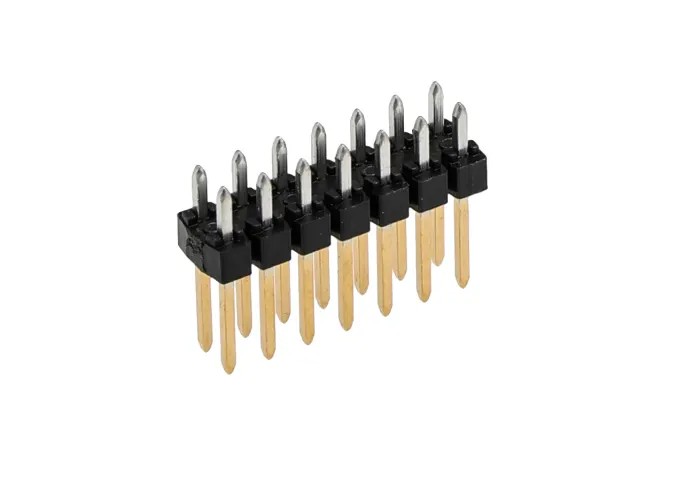

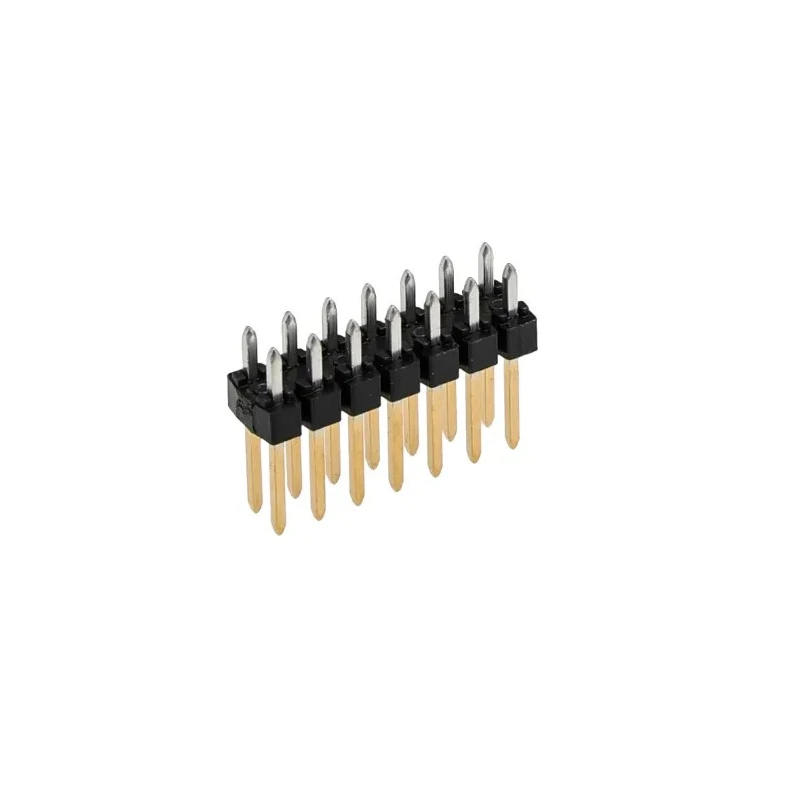

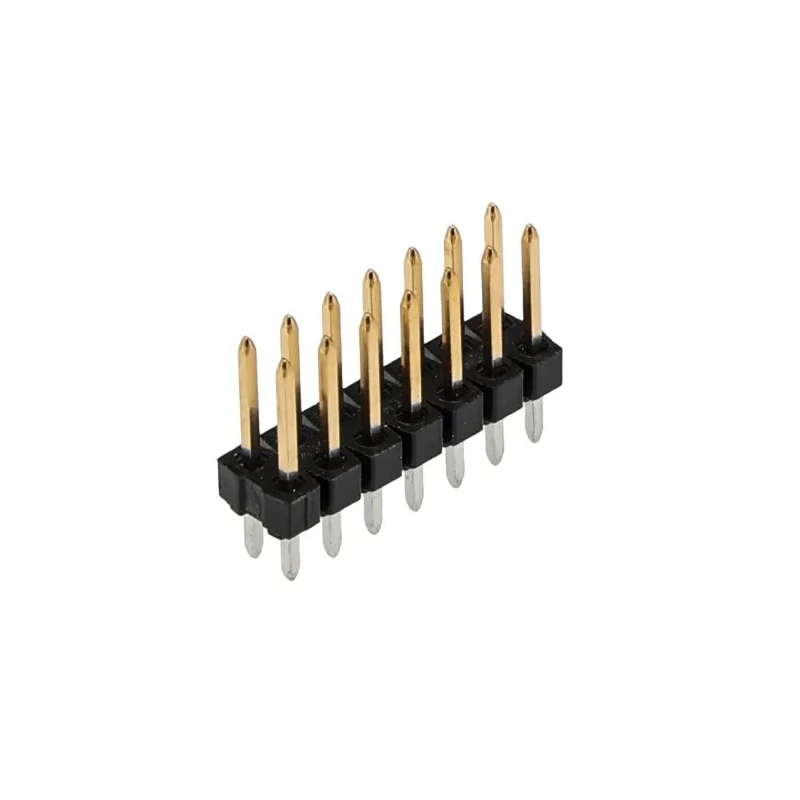

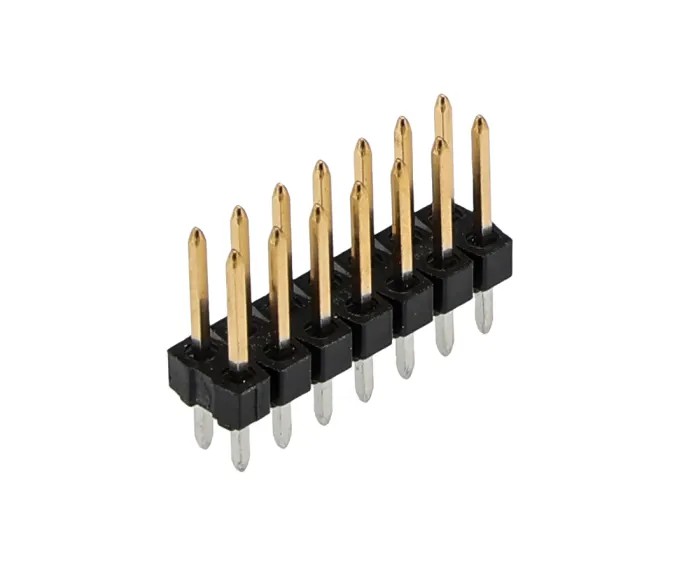

Molex C-Grid III Series Vertical Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded 90131-0767
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Unshrouded design enables easy access in tight PCB spaces.
- 14 contacts arranged in 2 vertical rows with 2.54 mm pitch optimize circuit density.
- Constructed with brass contacts plated in gold for corrosion resistance and durability.
- Supports a current rating of 3A and voltage up to 350V for reliable electronic applications.
- Designed for through-hole mounting with solder termination ensuring strong mechanical stability.
- Operates between -55°C and 125°C temperature range for diverse environments.
- Male contact gender with tail pin length of 2.9 mm and mating pin length of 6.75 mm.
- Compact vertical orientation facilitates straightforward PCB integration.
Product Description
Molex 90131-0767 C-Grid III Series Vertical Through Hole PCB Header with 14 contacts, 2.54 mm pitch, and 2 rows is designed for wire-to-board electronic connections. This unshrouded header provides flexibility for easy connections and inspection in dense PCB layouts.
The header features brass contacts plated with gold to ensure excellent conductivity and corrosion resistance. It supports a current rating of 3A and a voltage rating up to 350V, enabling it to handle standard electronics applications reliably. The through-hole solder termination contributes to strong mechanical stability on the PCB.
Its operating temperature range from -55°C to 125°C ensures performance in a variety of industrial and commercial environments, including automation equipment and signal connections.
The unshrouded design allows quick and convenient access during installation and maintenance. The compact vertical orientation with 2 rows aids in efficient PCB integration, maximizing circuit density with 14 contact points spaced at a 2.54 mm pitch.
Unshrouded for easy access and faster installation. Gold-plated brass contacts for durability and corrosion resistance. Current rating of 3A and voltage rating of 350V suitable for many electrical applications. Through-hole solder termination for secure mounting and mechanical stability.
Robust operating temperature range from -55°C to 125°C. Vertical orientation with 2 rows and 2.54 mm pitch optimizes PCB space. Designed for wire-to-board connector systems in automation and electronics.
This PCB Header is ideal for industrial electronics, automation control systems, and signal interfacing in manufacturing and commercial applications. It complies with industry standards for PCB connectors and provides reliable performance over its service life.
Explore a wide range of Molex PCB connectors and headers at EnvMart to meet your electronics interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A, making it suitable for various electrical applications.
The voltage rating is up to 350V, allowing it to handle standard electronic applications reliably.
The contacts are arranged at a pitch of 2.54 mm, optimizing circuit density on the PCB.
This model features 14 contacts arranged in 2 vertical rows.
It operates effectively within a temperature range of -55°C to 125°C, suitable for various environments.
This unit is designed for through-hole mounting with solder termination, ensuring strong mechanical stability.
The contacts are made of brass and are gold-plated for corrosion resistance, while the housing is constructed from polyester.
The tail pin length is 2.9 mm, which aids in secure soldering to the PCB.
The mating pin length is 6.75 mm, facilitating connections with compatible components.
This model is unshrouded, allowing for easy access and installation in tight PCB spaces.
It is designed for wire-to-board connector systems, commonly used in automation and electronics applications.
The country of origin for this PCB header is India.
