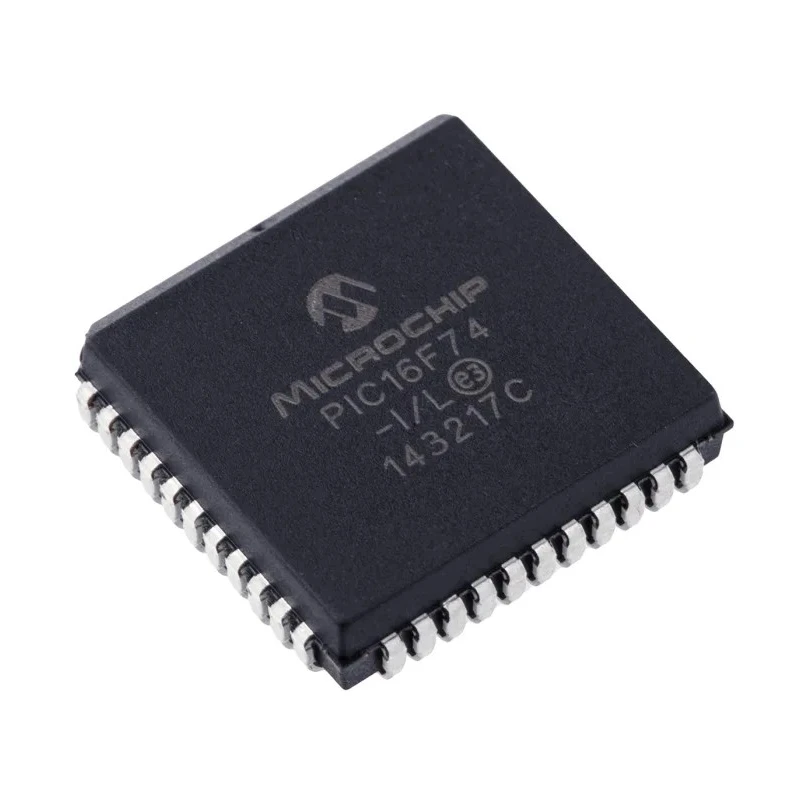

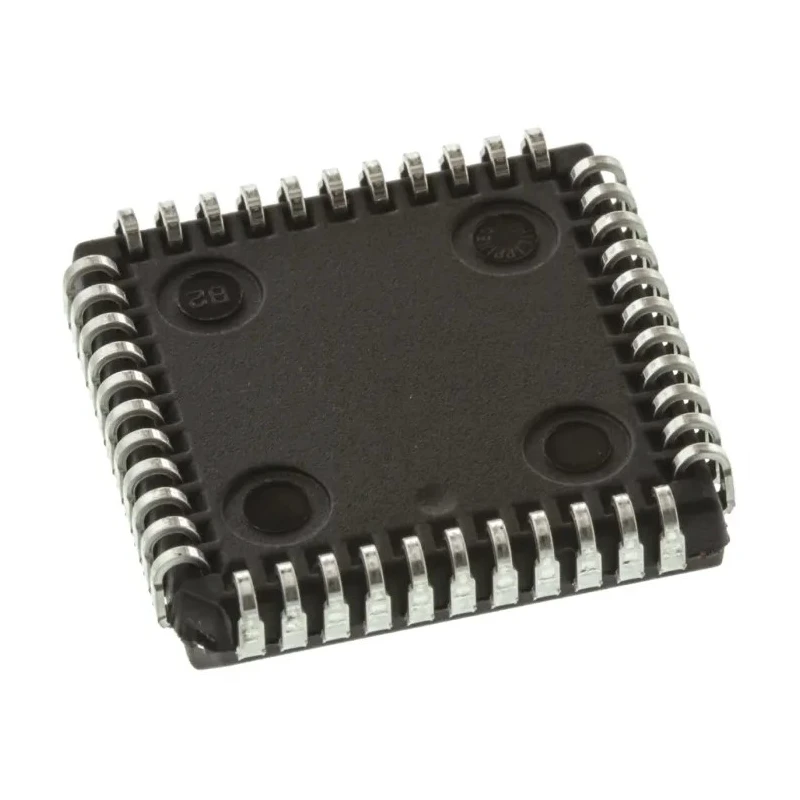

Microchip 8 bit PIC16F74 Microcontroller 20 MHz 7kB FLASH 44-Pin PLCC PIC16F74-I/L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 16.66mm |
| Model | PIC16F74-I/L |
| Width | 16.66mm |
| Mount Type | Surface |
| Series | PIC16F74 |
| Maximum Operating Temperature | 85°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Ram size | 192bit |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 33 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 8 Bit |
| Program Memory Type | FLASH |
| Microchip, 8bit PIC, PIC16C Microcontroller, 4MHz, 4K EPROM, 44-Pin PLCCBrand | Microchip |
Key Features
- Operates at a maximum clock frequency of 20 MHz for efficient processing.
- Equipped with 7kB of FLASH program memory for robust firmware storage.
- Features 33 programmable I/O pins providing versatile interfacing options.
- Built on Microchip's PIC RISC architecture with 35 instructions and 8-level hardware stack.
- Includes 8 channels of 8-bit Analog to Digital Converters (ADC) for precise signal processing.
- Supports multiple timers including two 8-bit and one 16-bit timer for time management tasks.
- Has a supply voltage range from 2V to 5.5V with maximum power dissipation of 1 watt.
- Designed to work reliably in temperature ranges from -40°C to 85°C.
Product Description
Microchip PIC16F74-I/L is an 8-bit microcontroller based on Microchip's proven PIC RISC architecture operating at a maximum clock frequency of 20 MHz. It incorporates 7kB of FLASH program memory and 192 bits of RAM, suitable for a wide range of embedded applications.
The device comes in a 44-pin PLCC surface mount package, offering 33 general-purpose programmable I/O pins, enabling connectivity and control over multiple external peripherals. It supports a supply voltage between 2V and 5.5V with a maximum power dissipation of 1 watt, making it efficient for low power embedded design.
The microcontroller is equipped with an 8-channel 8-bit Analog-to-Digital Converter (ADC), enabling analog signal measurement and digitization. It also features multiple timer modules, including two 8-bit timers and one 16-bit timer, that facilitate timing and counting functions essential for embedded control systems.
Additional features include Watchdog Timer (WDT), Power-On Reset (POR), Brown-Out Reset (BOR), and in-circuit serial programming (ICSP) and debugging (ICD) for development convenience. The device supports synchronous serial port communication via SPI and I2C protocols and UART for asynchronous serial communications.
The operational temperature range of -40°C to 85°C ensures reliability in industrial and automotive environments. The PIC16F74-I/L complies with RoHS standards, affirming its environmental compliance.
Operates at 20 MHz maximum frequency for responsive processing. 7kB FLASH program memory suitable for complex firmware. 33 programmable I/O pins for flexible interfacing. Includes 8-channel 8-bit ADC for analog sensing. Multiple timers incorporated for diverse timing tasks.
Supports a wide supply voltage range (2V to 5.5V). Power efficient with 1 W maximum power dissipation. Wide temperature range from -40°C to 85°C. 44-pin PLCC package for compact surface mounting. Enables in-circuit programming and real-time debugging.
This microcontroller is ideal for industrial automation, consumer electronics, automotive applications, and embedded system design requiring robust performance, flexibility, and reliable operation.
Explore more Microcontroller solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F74-I/L operates at a maximum clock frequency of 20 MHz, allowing for efficient processing.
This model is equipped with 7kB of FLASH program memory, suitable for robust firmware storage.
The supply voltage range for the PIC16F74-I/L is from 2V to 5.5V, making it versatile for various applications.
It features 33 programmable I/O pins, providing versatile interfacing options for external peripherals.
This microcontroller includes multiple timers: two 8-bit timers and one 16-bit timer for various timing tasks.
The operational temperature range for this model is from -40°C to 85°C, ensuring reliability in industrial environments.
It comes in a 44-pin PLCC surface mount package, suitable for compact applications.
Yes, it includes an 8-channel 8-bit Analog-to-Digital Converter (ADC) for precise signal processing.
The maximum power dissipation for the PIC16F74-I/L is 1 watt, making it efficient for low-power designs.
It is built on Microchip's PIC RISC architecture, which includes 35 instructions and an 8-level hardware stack.
The PIC16F74-I/L complies with RoHS standards, affirming its environmental compliance.
It supports synchronous serial port communication via SPI and I2C protocols, as well as UART for asynchronous communication.
