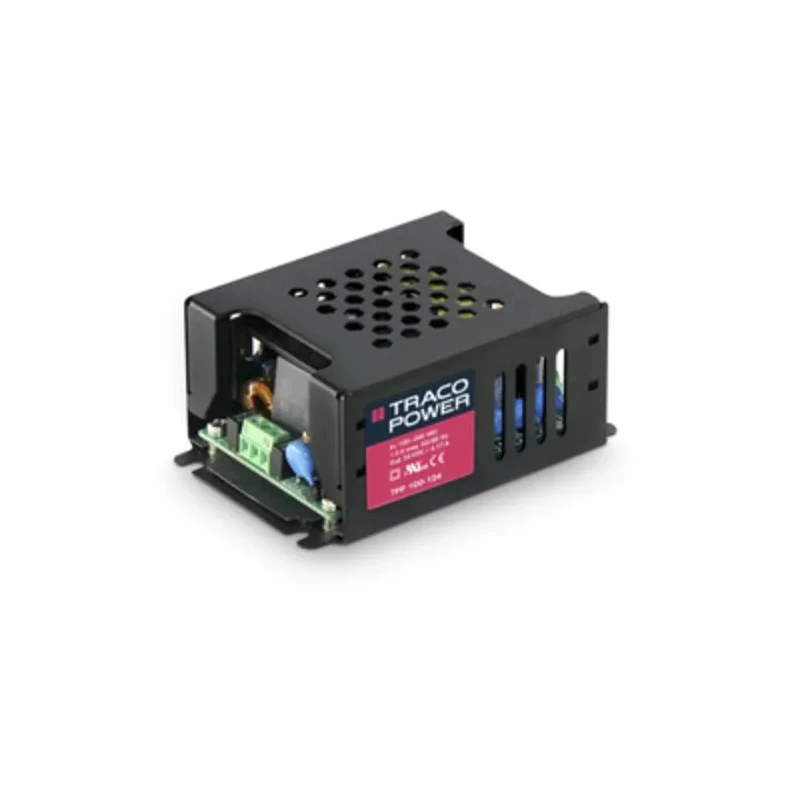

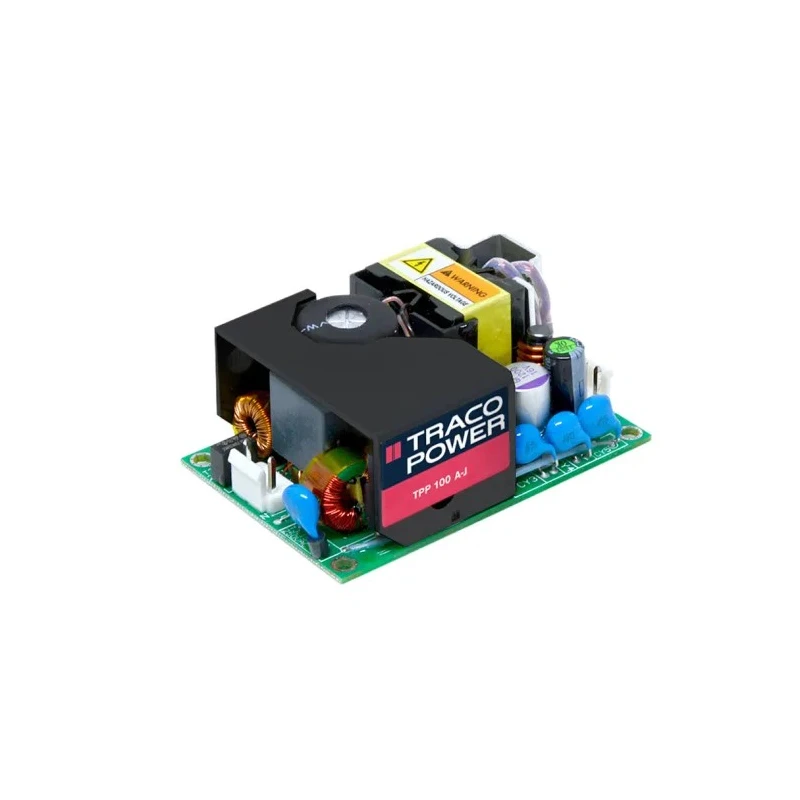

TRACOPOWER Switching Power Supply 15V dc, 100 W, Chassis Mount, 85°C Operating Temperature TPP 100-115A-J

TRACOPOWER TPP 100-115A-J is a specialized switching power supply delivering a regulated 15V dc output power at 100 watts, designed for chassis mounting. This product supports a single output channel providing up to 6.67A current with an operating input voltage range from 85V ac to 264V ac, making it suitable for a variety of industrial and domestic power applications.

The power supply is built with high efficiency of 92% and includes active power factor correction greater than 95%, reducing energy losses and improving power quality. It features a reinforced double I/O isolation system ensuring enhanced safety and low earth leakage current below 75 μA, suitable for body floating (BF) applications in sensitive environments.

This unit is designed to function in a broad temperature range from -25°C to 85°C and supports altitudes up to 5000 meters, demonstrating robust environmental tolerance. The compact footprint with dimensions of 76.2mm (length), 50.8mm (width), and 29.5mm (depth) supports flexibility in installation.

Safety standards compliance includes ANSI/AAMI ES 60601-1, EN 60601-1, EN 60950-1, IEC 60601-1, IEC 60950-1, and UL 60950-1 certifications. The power supply unit is engineered for reliable performance with low no-load power consumption less than 0.3 W, making it energy efficient and cost-effective.

Its features such as protection class I and II, a 5-year product warranty, and suitability for industrial and domestic fields highlight its quality and durability. It is apt for use in medical devices, communication systems, and other precision industrial equipment requiring stable DC power.

Provides a single output with 6.67A current capacity. Operates efficiently up to 92% power efficiency. Supports wide input voltage range from 85V ac to 264V ac. Designed for operating temperatures from -25°C to 85°C. Construction suitable for industrial and domestic applications.

Features low earth leakage current under 75 μA for body floating suitability. Includes active power factor correction exceeding 95%. Compact size with dimensions 76.2mm length, 50.8mm width, and 29.5mm depth. Safety and approvals include ANSI/AAMI ES 60601-1, IEC 60950-1, UL 60950-1 compliance.

Constructed with reinforced double input/output isolation. Explore EnvMart for a comprehensive selection of Switching Power Supplies and power solutions for industrial and electronic component needs.
