Pepperl + Fuchs Block Ultrasonic Proximity Sensor 7/8 in-16 UN 2A Thread Size 1500 mm Detection 3A 1 Relay UB1500-F42-UK-V95

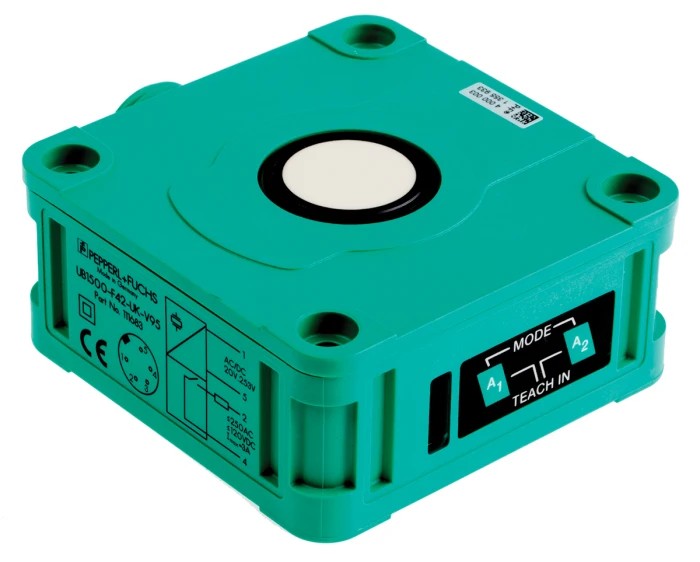

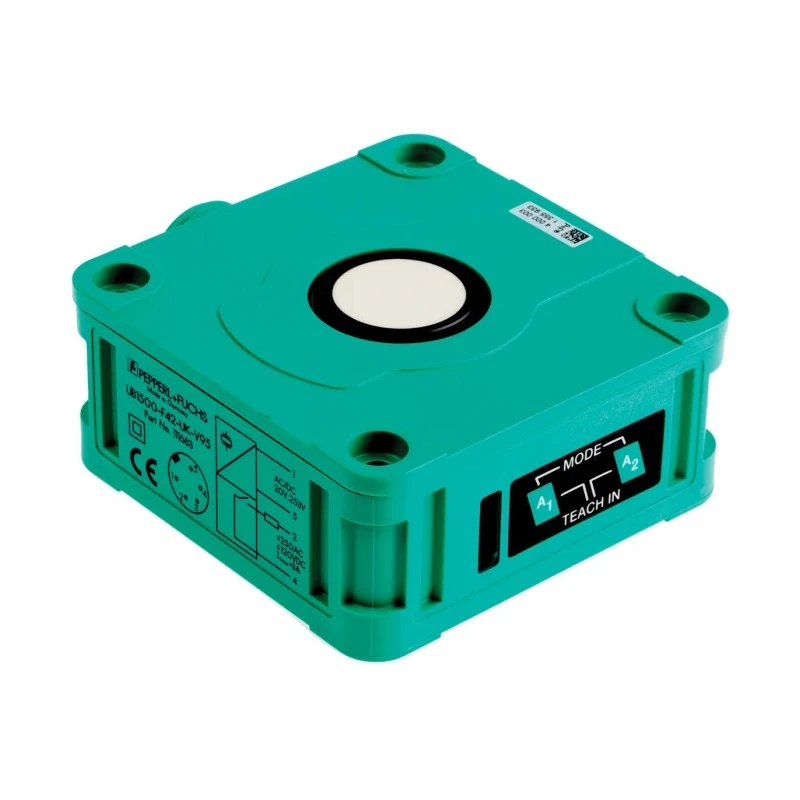

The Pepperl + Fuchs UB1500-F42-UK-V95 is a block-style ultrasonic proximity sensor engineered for precise object detection with a maximum sensing range of 1500 mm. Featuring a threaded size of 7/8 in-16 UN 2A, it enables secure and versatile mounting in industrial automation systems.

This sensor is housed in durable polybutylene terephthalate material with an IP65 rating, protecting it against dust and water ingress for reliable operation in diverse environmental conditions. The sensor operates within a temperature range from -25°C to 70°C, making it suitable for various industrial and manufacturing applications.

Equipped with a 5-pin terminal and a relay output type rated at 3A switching current and 253 V AC maximum voltage, this device supports both normally open and normally closed configurations with adjustable switching thresholds. Its compact form factor of 80 mm length, 96 mm width, and 34 mm depth facilitates installation even in constrained spaces.

The sensor includes advanced features such as temperature compensation and an extremely small unusable detection area, ensuring high precision in object sensing. It supports four operating modes and achieves a fast response time of 150 ms with a switching frequency of up to 3 Hz.

Certified to IEC 60947-5-2:2007 and EN 60947-5-2:2007 standards, the Pepperl + Fuchs UB1500-F42-UK-V95 guarantees performance and safety in industrial automation and control gear applications. It is ideal for integration in manufacturing lines, process automation, robotics, and quality control tasks.

With its German origin and robust engineering, this ultrasonic proximity sensor is a trusted solution for high-precision detection requirements across industrial, manufacturing, and automation sectors.

Thread size is precisely 7/8 in-16 UN 2A for secure mounting. Block body style with IP65 rated polybutylene terephthalate housing ensures durability. Operating temperature range from -25 to 70°C suits harsh industrial environments.

Output type includes one relay switching up to 3A current at 253 V AC. Built-in temperature compensation and adjustable switching threshold improve accuracy. Compact dimensions of 80 mm length, 96 mm width, and 34 mm depth minimize installation footprint.

Fast response time of 150 ms at a maximum switching frequency of 3 Hz. Meets IEC 60947-5-2:2007 and EN 60947-5-2:2007 standards for reliability. Designed and manufactured in Germany with high quality control. Explore more advanced Ultrasonic Sensors and proximity detection solutions in our Electronics & Electricals Sensors category at EnvMart.
