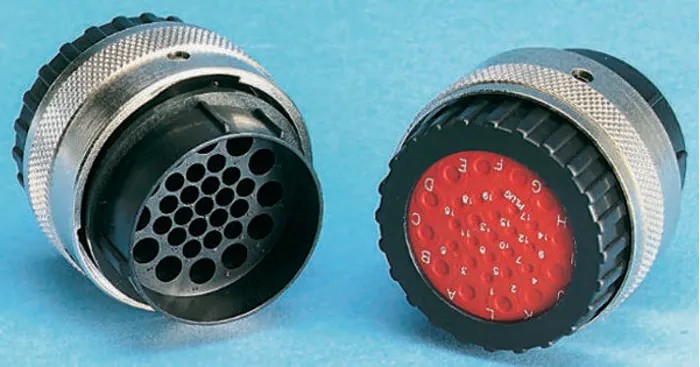

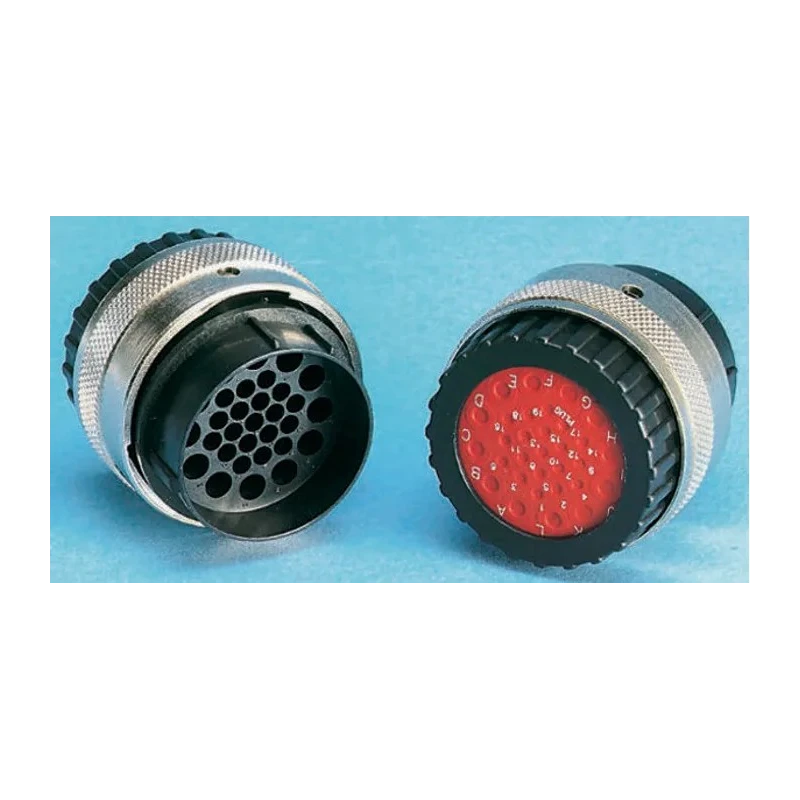

ITT Cannon Industrial Circular Connector Trident Neptune Series 19 Contacts Cable Plug Male TN6S16-0019P2L / 192900-0557

ITT Cannon TN6S16-0019P2L / 192900-0557 Circular Connector from the Trident Neptune series is a high-performance industrial connector designed for challenging environmental conditions.

This cable mount plug connector has 19 contacts arranged in power and signal configuration, allowing reliable power transfer with a 30A current rating and operating voltage up to 250V. It features a male plug contact gender with a standard size, straight orientation, and a secure bayonet mating type ensuring stable connections.

The connector housing is made of durable nylon material while the contact parts are copper with nickel plating to resist corrosion and wear. The connector supports crimp termination for easy field wiring.

Operating temperature ranges from -55°C minimum to a maximum of 105°C, making it ideal for industrial, automotive, marine, and process control applications requiring robust, environmentally sealed connectors rated IP67. To ensure the IP67 ingress protection, the connector includes membrane wire seals and a corrosion-resistant plastic coupling ring with a screw ring holding the seal in place.

The Trident Neptune series is an advancement of the Trident Ringlok design, combining power and signal contacts with a strong bayonet coupling system. This connector mate type supports panel sockets with matching plug and socket contacts for signal and power configurations.

This model is manufactured in Hungary and does not carry specific industry certifications but meets IP67 standards for dust and water ingress protection. The connector's shell size is 16 mm, and it accommodates wire insulation diameters of 1.7 to 4.0 mm depending on signal or power wire type.

This connector supports a current rating of 30A and voltage up to 250V. The plug type is male with a straight orientation and bayonet mating system. Constructed with nylon housing and copper contacts plated with nickel for durability.

Operates reliably within a temperature range of -55°C to 105°C. Designed for crimp termination and standard connector size with a 16 mm shell. Trident Neptune series offers strong corrosion resistance and mechanical coupling.

Suitable for automotive, marine, and process control industrial applications. Maintains IP67 rating through membrane wire seals and a plastic coupling ring. Connector is manufactured in Hungary with no specific approvals or certifications listed.

For professionals needing robust, sealed circular connectors with multi-contact cable plug configuration, the ITT Cannon Trident Neptune TN6S16-0019P2L / 192900-0557 is an excellent choice, supporting harsh environment installations with reliable electrical and mechanical performance. Browse more quality connectors in our Industrial Circular Connectors category at EnvMart.
