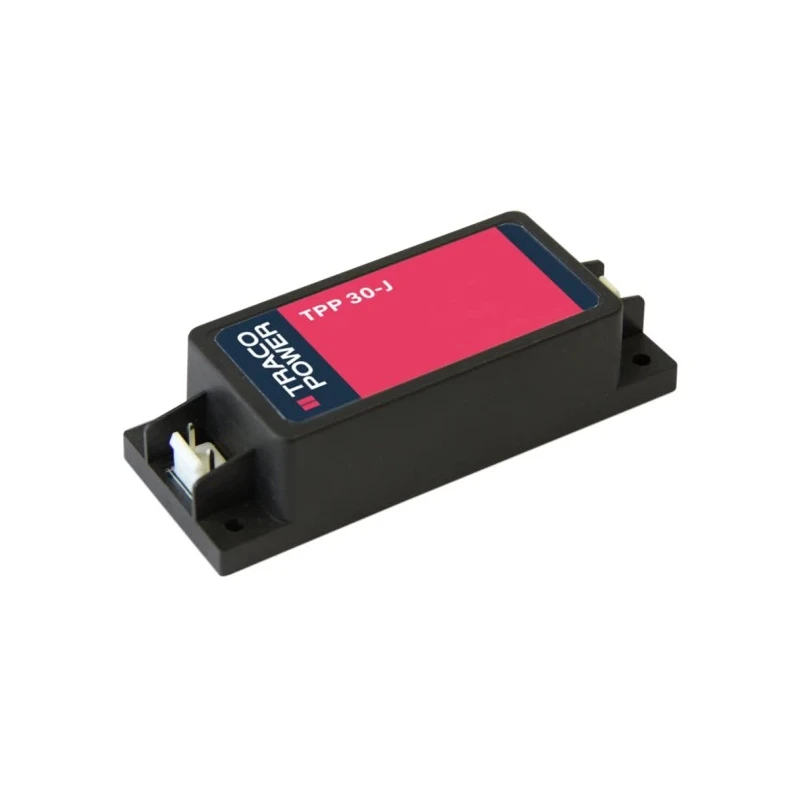

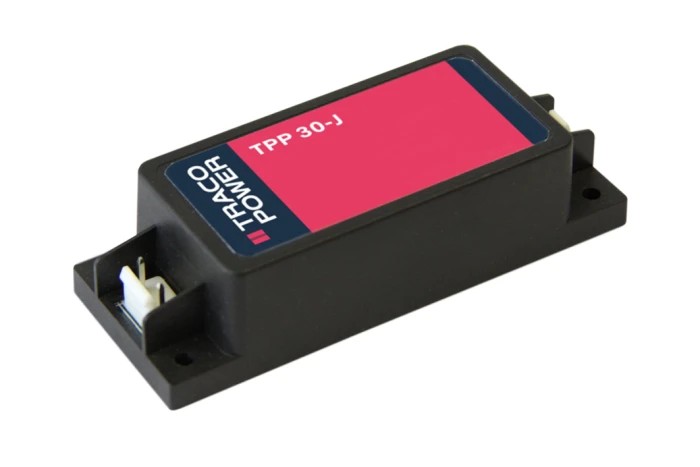

TRACOPOWER TPP 30-103-J Switching Power Supply 3.3V DC 20W 264V AC Screw Mount 6A Output TPP 30-103-J

TRACOPOWER TPP 30-103-J is a high-performance switching power supply designed to deliver 3.3V DC output at 20 watts power with a maximum output current of 6 amperes. Engineered with advanced reinforced double I/O isolation, this power supply ensures safety and reliability by maintaining earth leakage current below 100 microamperes, making it ideal for BF (body floating) medical equipment applications.

This unit supports a screw mounting type and measures 100.3mm in length, 38.1mm in width, and 25.4mm in depth, allowing compact installation in various industrial and electronic environments. The operational temperature range spans from a minimum of -40°C up to a full-load maximum of 60°C, extending to 85°C with 50% load derating, providing robust performance in challenging ambient conditions.

Designed for global markets, the power supply complies with rigorous international safety and performance standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1 certifications. It operates efficiently at 84% efficiency, reducing energy consumption and heat output for enhanced durability.

The device operates within an input voltage range of 85 to 264 volts AC, functioning reliably up to altitudes of 5000 meters, suitable for a wide range of industrial, laboratory, medical, and electronic manufacturing applications. The TPP 30-103-J is encapsulated for high power density and long service life, offering a 5-year product warranty for guaranteed dependability.

Maximum output voltage of 3.3V DC delivers stable power for sensitive electronics. Single output configuration ensures dedicated power delivery to connected devices. Screw mount type allows secure installation in equipment and panels.

Rated power of 20 watts supports low to moderate power applications. Wide operating temperature range from -40°C to +85°C ensures reliability in harsh environments. Compact dimensions: length 100.3mm, width 38.1mm, depth 25.4mm for space-saving design.

Output current rating of 6A suitable for demanding current needs within its rating. High efficiency of 84% optimizes power usage and reduces heat generation. Certified to international standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1.

Constructed with reinforced double I/O isolation offering earth leakage current below 100 μA, suitable for BF medical applications. Designed to operate up to 5000m altitude providing flexibility in diverse geographic locations.

Country of origin: Taiwan, Province of China.

This switching power supply is well suited for use in industrial electronics, medical instrumentation, laboratory testing equipment, and other critical applications where compact size, reliability, and electrical safety are paramount. Explore the TRACOPOWER product range on EnvMart for reliable power supply solutions tailored to your professional needs.
