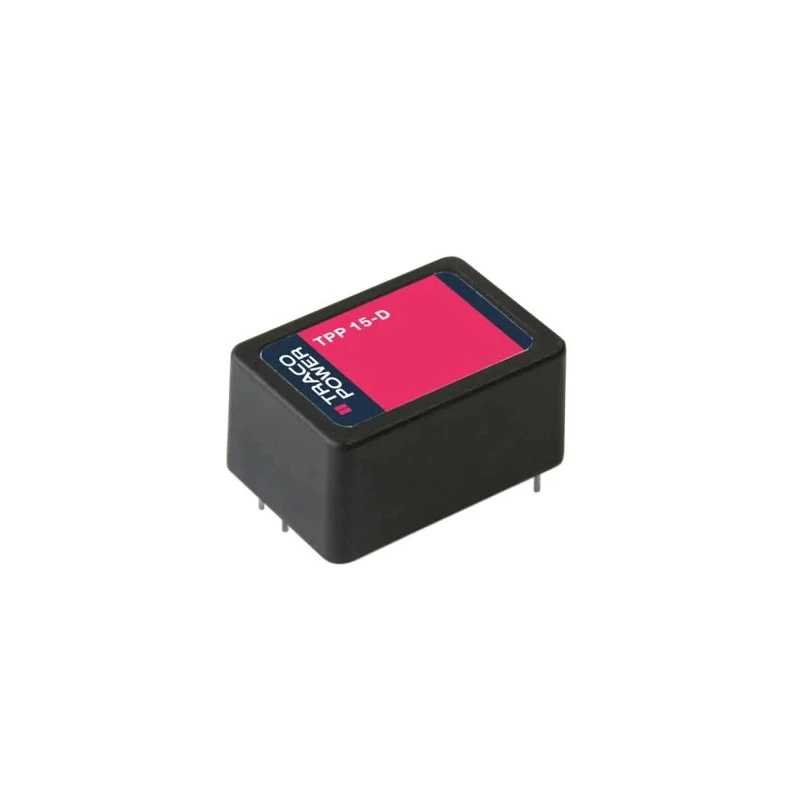

TRACOPOWER Switching Power Supply 3.3V DC, 13.2W, PCB Mount, 85°C Max Operating Temperature TPP 15-103-D

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 3.3V DC, 13.2W, PCB Mount, 85°C Max Operating Temperature TPP 15-103-D

Name: TRACOPOWER Switching Power Supply 3.3V DC, 13.2W, PCB Mount, 85°C Max Operating Temperature TPP 15-103-D
Brand: TRACOPOWER
SKU: 97785
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	13.2W
Efficiency	84%
Length	42mm
Model	TPP 15-103-D
Depth	21.5mm
Gross Weight	43g
Width	28.9mm
Mount Type	PCB
Series	TPP 15A-J
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	3.3V dc
SMPS Output Current	4A
Minimum Input Voltage	85V ac

Key Features

High efficiency of 84% ensures minimal power loss during operation.
Operates over a broad temperature range from -40°C to 85°C.
Features a single output delivering up to 4A current.
Compact dimensions of 42mm length, 28.9mm width, and 21.5mm depth allow easy PCB integration.
Designed with reinforced double I/O isolation for safe BF application suitability.
Supports input voltages from 85V AC to a maximum of 264V AC.
Complies with international safety standards including ANSI/AAMI ES 60601-1 and UL 62368-1.
Encapsulated design supports high altitude operation up to 5000m.

Product Description

TRACOPOWER TPP 15-103-D is a high power density switching power supply designed for reliable DC output at 3.3V with a maximum power rating of 13.2W. It features a PCB mount type configuration, ideal for compact embedded electronics or industrial applications where safety and efficiency are paramount.

Engineered with a reinforced double input-output isolation system, this power supply maintains earth leakage current below 75 microamps, making it well-suited for body floating (BF) applications that require stringent leakage criteria. Its encapsulated packaging provides excellent mechanical and electrical robustness along with the ability to operate at up to 5000 meters altitude.

The device supports a wide input voltage range from 85V AC to 264V AC, providing versatility in various regional power environments. It operates reliably within a temperature range from -40°C up to 85°C (with derating above 70°C), ensuring performance stability in harsh environments. Output current is rated at 4A maximum, suitable for moderate power loads.

Compact dimensions of 42mm length, 28.9mm width, and 21.5mm depth allow easy integration on PCBs where space is restricted. Compliance with safety and electromagnetic compatibility standards such as ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1 assures safe operation in medical and industrial equipment.

High efficiency of 84% reduces power consumption and heat generation. Reinforced isolation supports enhanced safety requirements. Encapsulated design enhances durability and protection against environmental factors. Suitable for industrial, medical, laboratory, and embedded electronics applications.

Five-year warranty guarantees product longevity and support.

Overall, the TRACOPOWER TPP 15-103-D switching power supply offers a compact, efficient, and safety-certified solution for delivering steady 3.3V DC power output in demanding electronic designs and systems.
