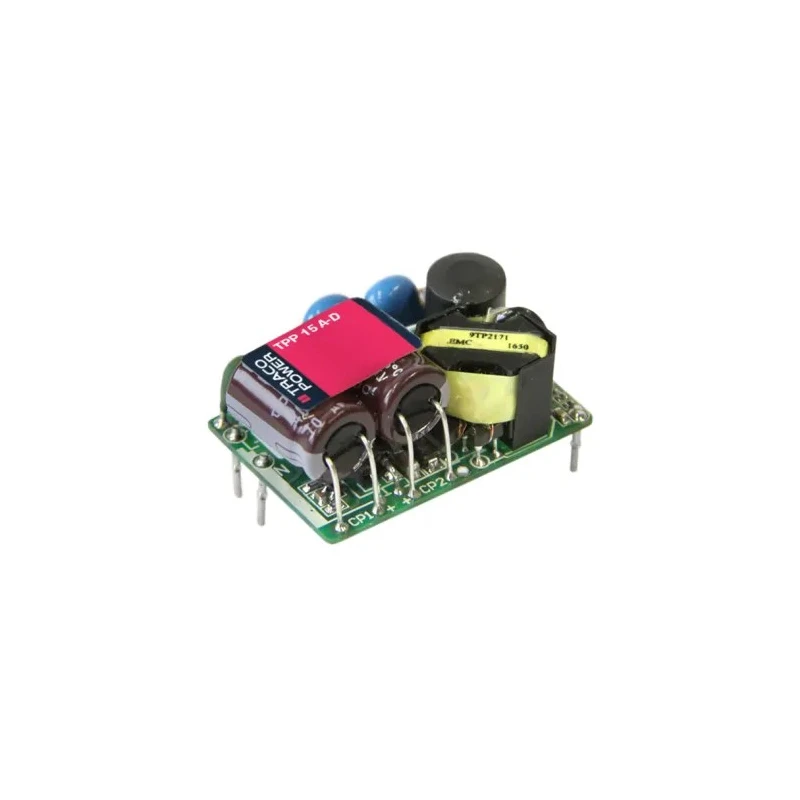

TRACOPOWER Switching Power Supply 3.3V DC, 13.2W, PCB Mount Type, 85% Efficiency TPP 15-103A-D

TRACOPOWER TPP 15-103A-D Switching Power Supply is a high-efficiency AC/DC module designed for industrial and medical equipment applications requiring reliable PCB-mounted power solutions. It provides a stable 3.3V DC output at 13.2 watts with an output current capacity of up to 4 amps. Designed with a reinforced double input/output isolation system, it ensures minimal earth leakage current, making it suitable for BF (body floating) rated equipment.

The power supply supports a wide input voltage range from 85V to 264V AC and can operate efficiently at high altitudes up to 5000 meters. The operating temperature extends from -40°C to 85°C, with derating above 70°C to maintain optimal performance and longevity. Its encapsulated construction offers a compact footprint measuring 38.1mm long, 25.4mm wide, and 20.2mm deep, ideal for space-constrained equipment.

With an efficiency rating of up to 84%, this unit reduces operational costs through lower power loss and heat generation. It meets rigorous international safety and performance standards such as IEC 62368-1, UL 62368-1, IEC 60601-1, and ANSI/AAMI ES 60601-1, ensuring high reliability and user safety.

The power supply's features, including low earth leakage current (.
