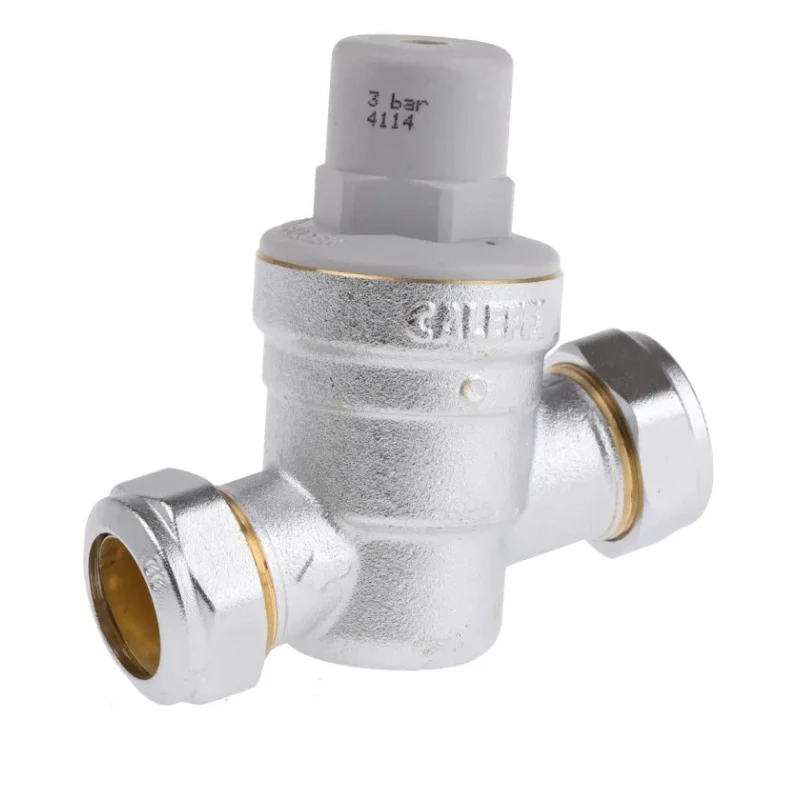

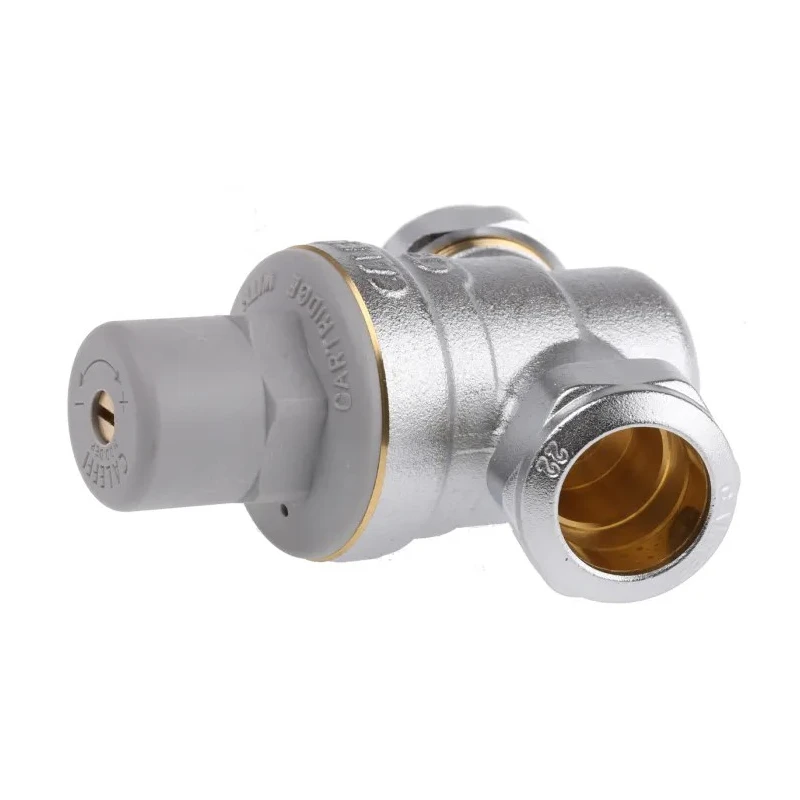

RS PRO Pressure Reducing Valve Compression 22 mm Chrome Plated Brass, Female Outlet, Max 6bar, Model 431-8894

RS PRO 431-8894 Pressure Reducing Valve Compression 22 mm is a precision valve designed for regulating the pressure in fluid control systems. The valve's body is constructed from chrome plated brass, providing corrosion resistance and durability suitable for industrial applications involving water or compressed air. Its compression inlet connection of 22 mm diameter and female outlet port ensure compatibility with common piping systems.

This valve is engineered to maintain flow rates under two litres per second to minimize noise in extended piping runs and equipment. It features a single piece acetal resin cartridge that is preset to control downstream pressure efficiently. The valve operates within a maximum temperature of 40°C and regulates outlet pressure between 1 bar minimum and 6 bar maximum. Installation flexibility allows fitting in any orientation, and the valve can be serviced in situ to reduce downtime.

For maintenance, it is advisable to fit isolation valves before and after the pressure reducing valve. The design excludes a gauge port, focusing on compactness and reliability. This valve is well-suited for industrial, commercial plumbing, HVAC systems, and fluid power applications where controlled pressure reduction is critical.

Designed with a 22 mm compression inlet connection for easy installation. Maximum operating temperature is 40°C, suitable for water and compressed air. Flow rate is maintained below 2 litres per second to avoid noise in pipe runs.

Maximum outlet pressure is 6 bar with a minimum outlet pressure of 1 bar. Includes a single piece acetal resin cartridge preset to control pressure effectively. Can be installed in any position and serviced on-site for convenience.

Manufactured in Italy ensuring quality standards. Recommended to install isolation valves before and after for maintenance. Explore more Industrial Valves and pressure control products at EnvMart for reliable performance and trusted quality.
