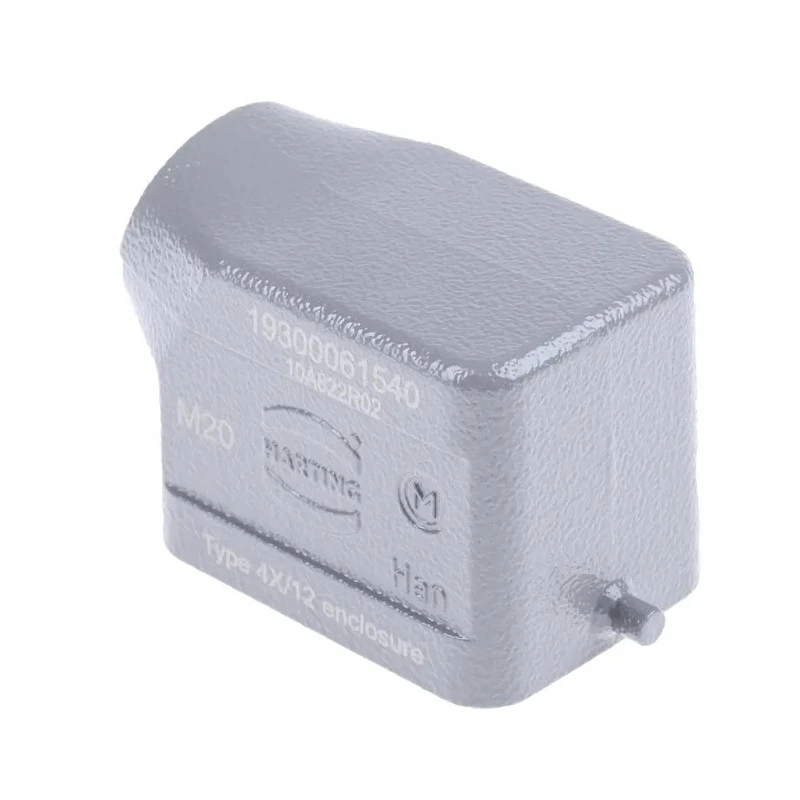

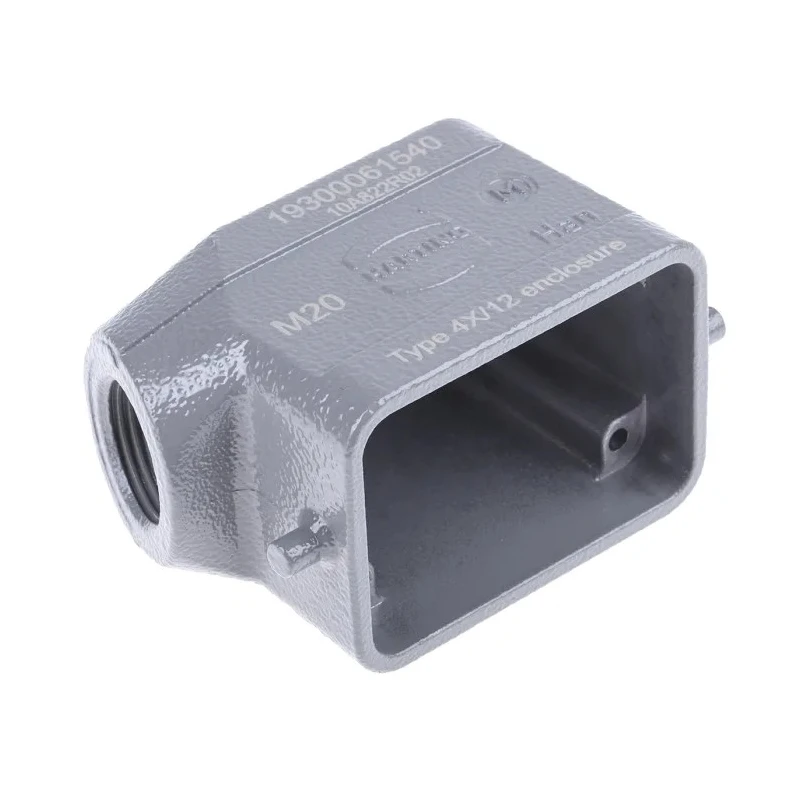

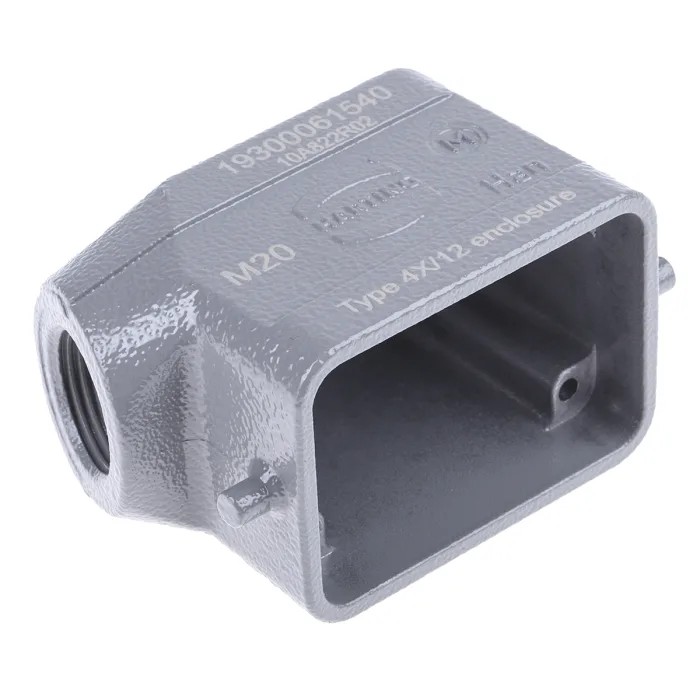

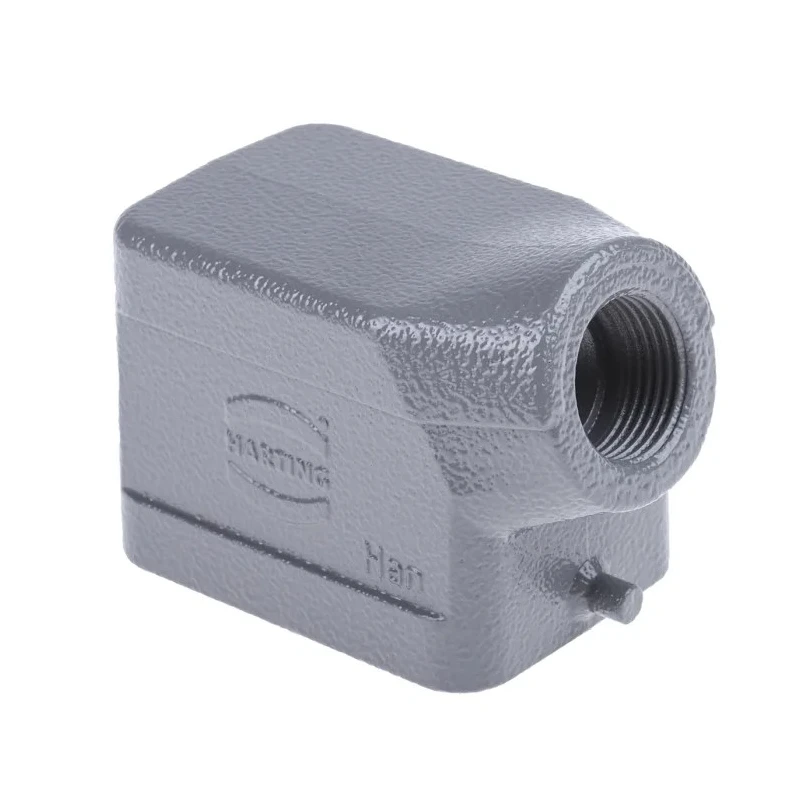

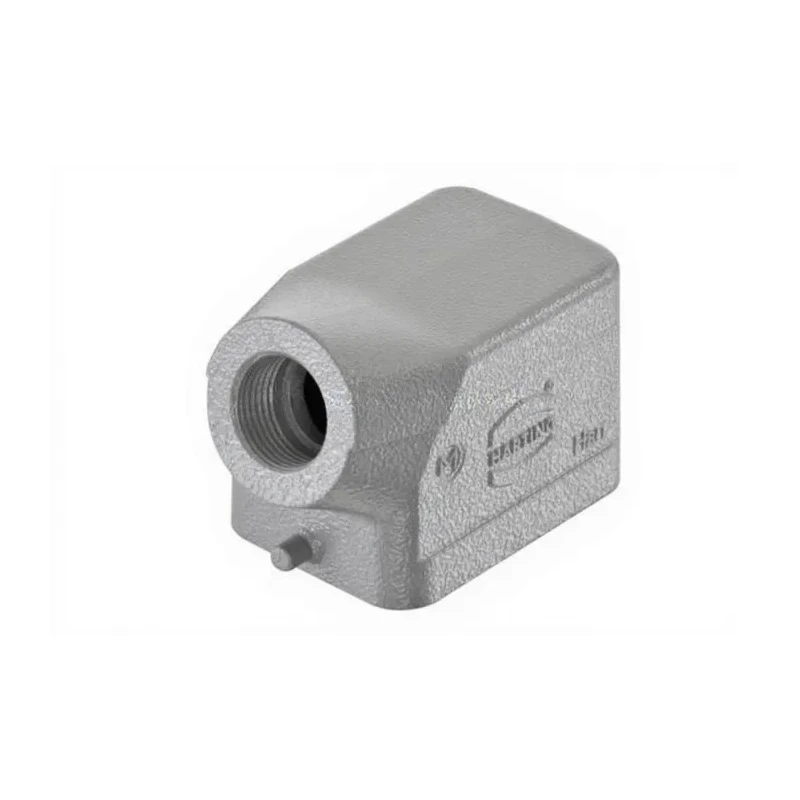

HARTING Han B Range Heavy Duty Power Connector Hood Die Cast Aluminium, Side Cable Entry M20, Single Lever 19300061540

HARTING 19300061540 is a heavy duty power connector hood designed for reliable industrial electrical connections. Featuring a die-cast aluminium body powder-coated in RAL 7037 Dust Grey, this connector hood offers robust mechanical protection with lightweight construction and corrosion resistance.

The side-entry M20 cable angle allows for compact cable routing and secure gland fittings, optimizing panel space and minimizing cable stress. The single lever locking mechanism ensures rapid engagement and ease of installation, reducing assembly time in production environments.

Rated to IP65, IP66, and IP67 standards, this connector hood provides superior sealing against dust and water ingress, suitable for harsh and wet conditions. It operates reliably in a broad temperature range from −40°C up to +125°C, enabling use in diverse industrial settings.

With high mating durability of 500 cycles or more, it supports frequent connect and disconnect operations common in automation and control applications. Typical uses include industrial control panels requiring sealed power interfaces, machine-tool cable terminations with side-entry cable routing, mobile equipment housings, and marine or offshore junctions that demand robust sealing capabilities.

The housing bears internationally recognized approvals including UL 1977, CSA-C22.2 No. 182.3, and DNV GL certification, ensuring compliance for electrical safety and maritime suitability.

Manufactured in Germany, the unit has a net weight of 21.4 grams, making it both compact and durable. Its powder-coated RAL 7037 Dust Grey finish provides a consistent appearance along with corrosion resistance.

Constructed from powder-coated die-cast aluminium for robust mechanical protection. Side M20 cable entry facilitates compact routing and secure gland fitting. Single lever locking enables fast engagement and simple installation.

Rated for IP65, IP66, and IP67 for sealed performance in wet environments. Operating temperature range from −40 to +125°C supports wide environmental conditions. Designed for high durability with mating cycles equal or greater than 500.

Suitable for industrial control panels and machine tool cable terminations. Approvals include UL 1977, CSA-C22.2 No. 182.3, and DNV GL certification. Manufactured in Germany with net weight approximately 21.4 grams.

This HARTING heavy duty connector hood is ideal for industrial, manufacturing, electrical, automation, marine, and offshore applications demanding rugged, reliable power connectivity. Explore the full range of HARTING industrial connectors and power components at EnvMart to meet your technical requirements.
