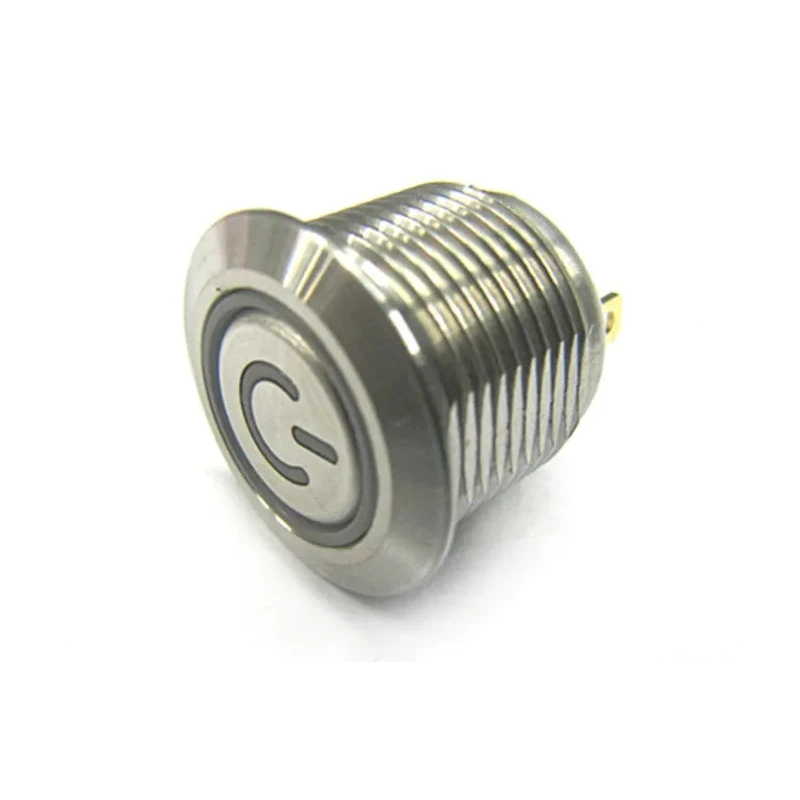

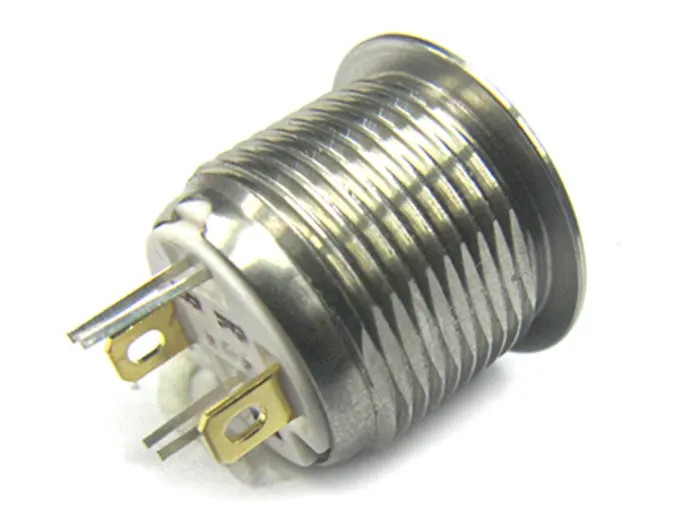

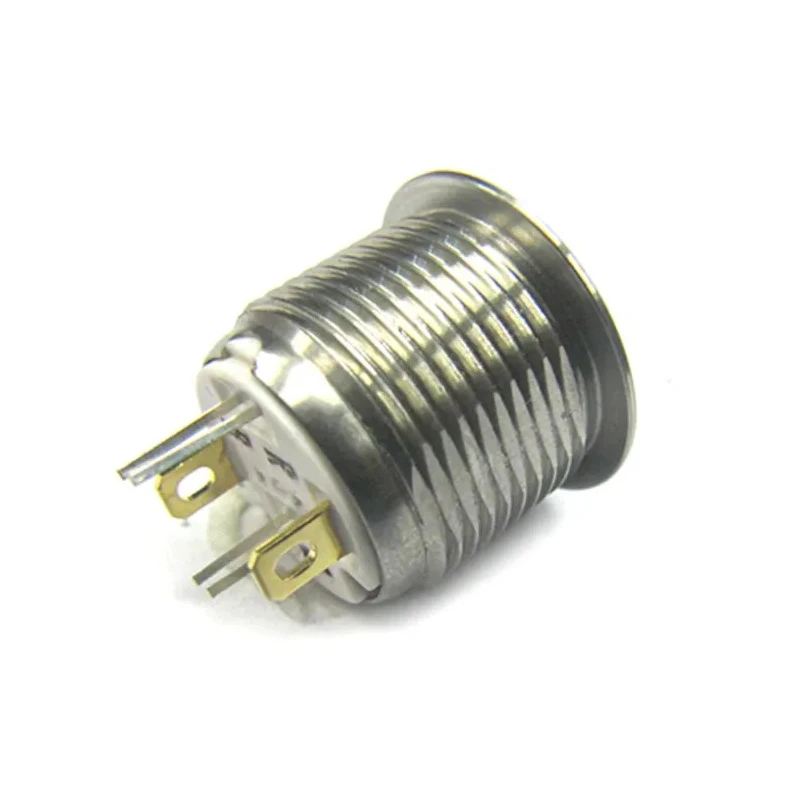

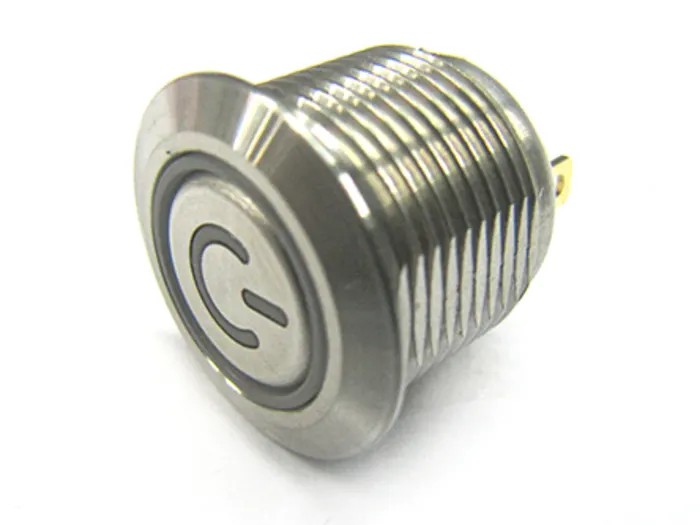

RS PRO MPB16 Series Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST RGB LED IP67 36 V dc MPB16

Name: RS PRO MPB16 Series Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST RGB LED IP67 36 V dc MPB16
Brand: RS PRO
SKU: 97146
Price: 2374.71 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	MPB16
IP Rating	IP67
Mount Type	Panel
Series	MPB16
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Solder
Standards/Approvals	RS
LED Colour	Blue, Green, Red
Switch Operation	Momentary
Contact DC Voltage	36V dc
Actuator Style	Flat
Switch Contact Current	2A
Legend	Power Symbol

Key Features

Operates momentarily with a flat actuator style for easy panel integration.
LED colors include blue, green, and red for versatile signal indication.
Rated for a contact DC voltage of 36 V dc and a switch contact current of 2 A.
Robust housing with IP67 ingress protection ensures operation in harsh environments.
Operates reliably in temperatures ranging from -20°C to 70°C.
Panel cutout size is standardized to 16 mm for compatibility with industrial controls.
Terminal type is solder, ensuring secure electrical connections.
Features power symbol legend for clear user interface indications.

Product Description

RS PRO MPB16 is an illuminated momentary push button switch designed specifically for panel mounting with a 16 mm cutout. It features a single pole single throw (SPST) contact configuration and RGB LED illumination that supports blue, green, and red colors, making it ideal for industrial and control applications requiring clear status indication.

This switch provides a robust IP67 ingress protection rating, ensuring protection against dust and water ingress, which makes it suitable for challenging industrial environments and public settings where vandal resistance is important. The flat actuator style and power symbol legend enhance user interface clarity and functionality.

Rated for a maximum contact DC voltage of 36 V dc and a switching current of 2 A, the MPB16 series supports reliable low voltage control circuits. Its operating temperature range from -20°C to 70°C allows for dependable function in various ambient conditions.

The RS PRO metal switch construction offers lightweight design combined with high strength, corrosion resistance, and efficient heat dissipation, which extend the component's service life. Its solder terminal type ensures secure and stable electrical connections in panel installations.

Commonly utilized in industrial control instruments, medical equipment, security monitoring systems, vehicle peripherals, audio-visual equipment, and energy storage setups, the MPB16 series push button switch offers versatile applications across multiple sectors requiring dependable momentary switching with illuminated feedback.

Operates momentarily with flat actuator style for ease of use. RGB LEDs available in blue, green, and red for clear status signals. Robust IP67 rating suitable for harsh environmental exposure. Contact rating of 2 A at 36 V dc supports various control applications.

Wide operating temperature range of -20°C to 70°C for flexibility. Standard 16 mm panel cutout size for easy integration. Power symbol legend improves user interface clarity. Explore more high-quality push button switches and components from RS PRO in the Electronics & Electricals category at EnvMart for your industrial and automation requirements.
