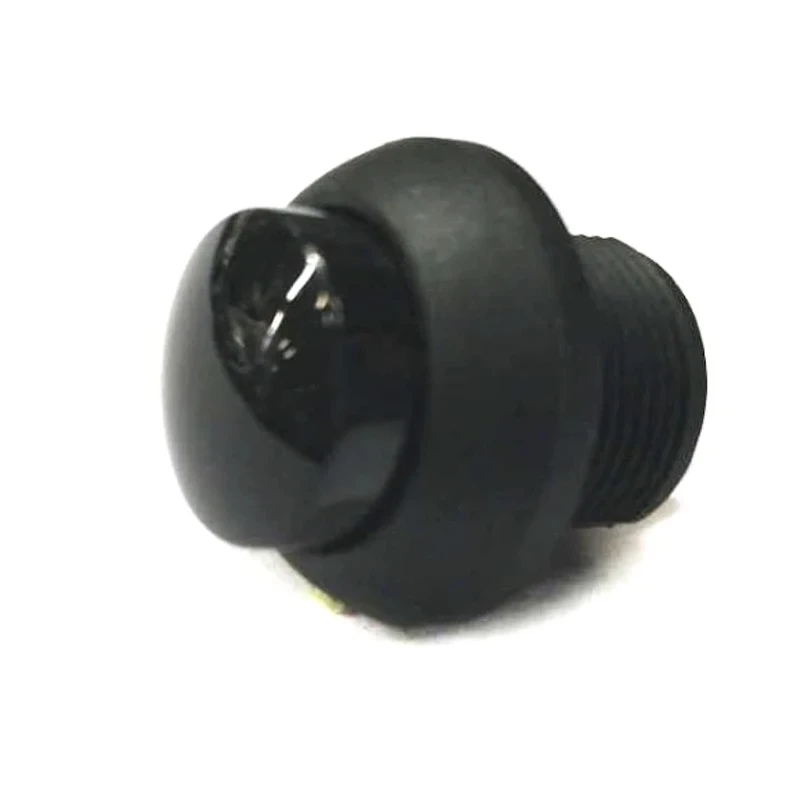

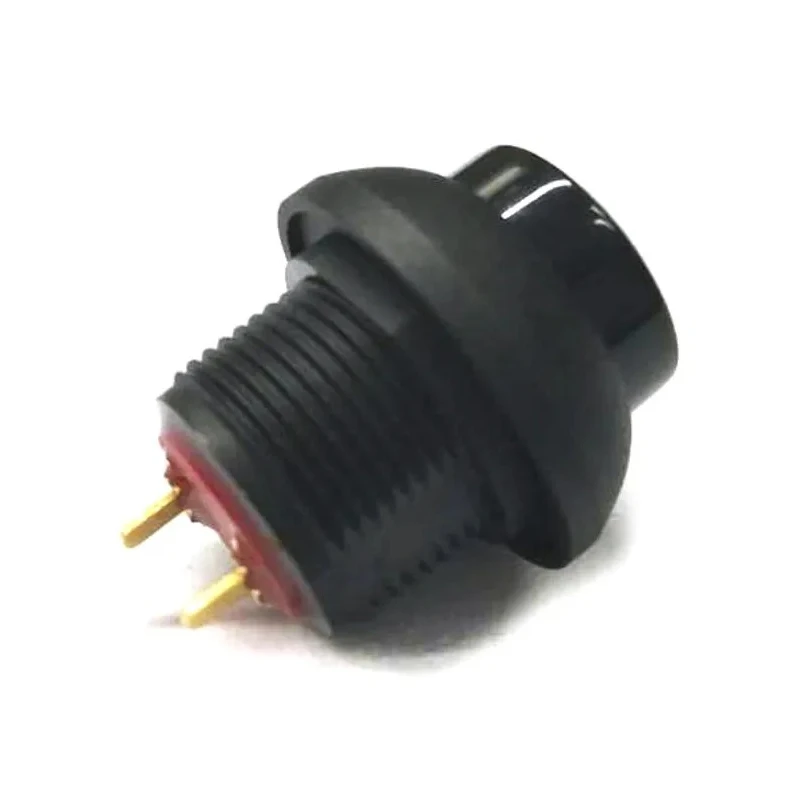

RS PRO Sub-Miniature Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPST IP67 36V dc PFS6

RS PRO PFS6 Series sub-miniature push button switch is a high-quality, momentary operation device designed for panel mounting. Featuring a precise 13.6 mm cutout size, it provides reliable electrical switching with a SPST contact configuration. This switch is IP67 rated, offering robust protection against dust and water, making it ideal for challenging environments.

The switch actuator is styled round for ergonomic use, and it has been shock resistant to withstand harsh conditions. Designed to operate at 36 V dc with a contact current of 125 mA, it assures safe and effective performance in telecommunications, networking equipment, computers, audio performance, and instrumentation applications.

Engineered with PCB pin terminals, the switch simplifies mounting and electrical integration on printed circuit boards. It is durable across a wide temperature range from -20°C to 70°C, ensuring functionality in various industrial and commercial settings.

The PFS6 series is made with plastic housings and manufactured in Taiwan, Province Of China. This sub-miniature push button switch is perfectly suited for demanding electronics environments requiring compact, robust push button switches with momentary contact behavior.

The switch operates in a momentary mode, ensuring temporary contacts. Designed for panel mounting with a precise 13.6 mm cutout dimension. Features a single pole single throw (SPST) contact configuration. Incorporates a round actuator style for simple user operation.

Rated IP67 for excellent protection against dust and water ingress. Supports contact DC voltage up to 36V dc, suitable for low voltage applications. Has a switch contact current rated at 125 mA ensuring reliable switching.

Operates reliably within a temperature range from -20°C to 70°C. Includes PCB pin terminals facilitating secure electrical connections.

This product is ideal for use in telecommunications, networking, computer servers, performance audio, and instrumentation industries. Browse EnvMart's comprehensive range of push button switches for enhanced industrial and electronic applications.
