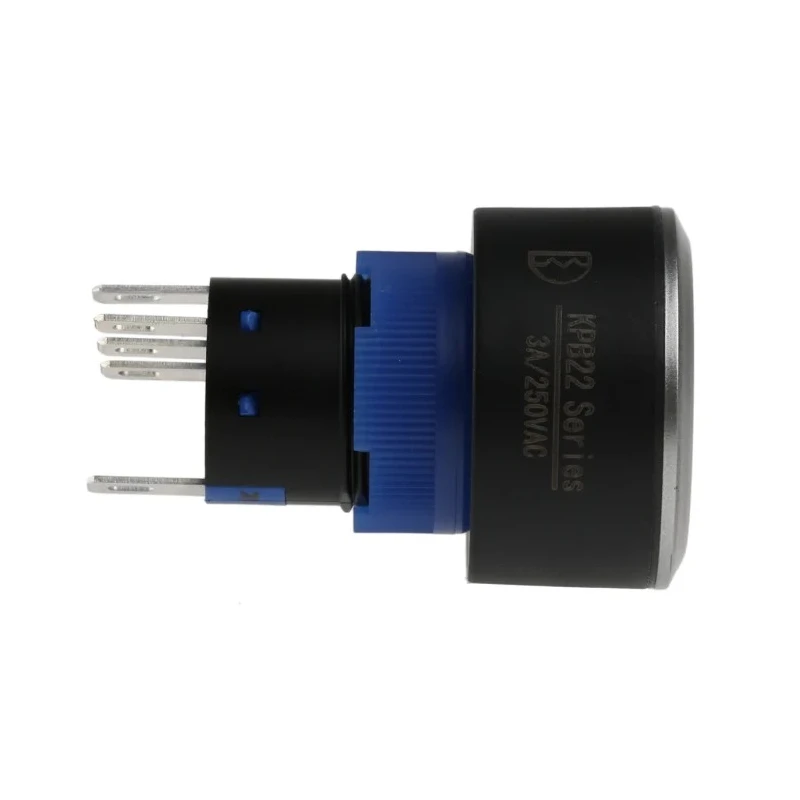

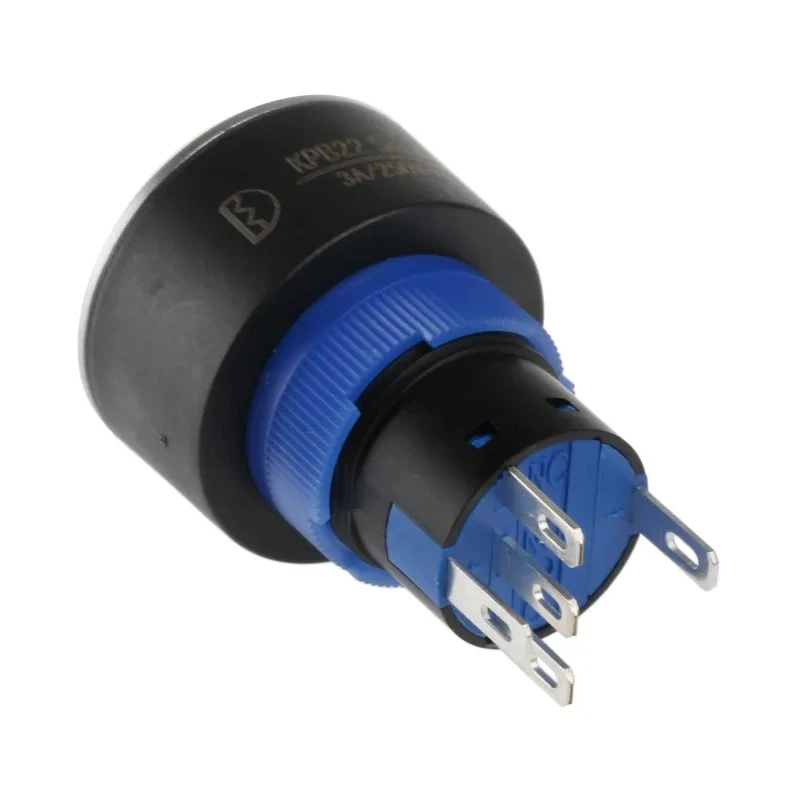

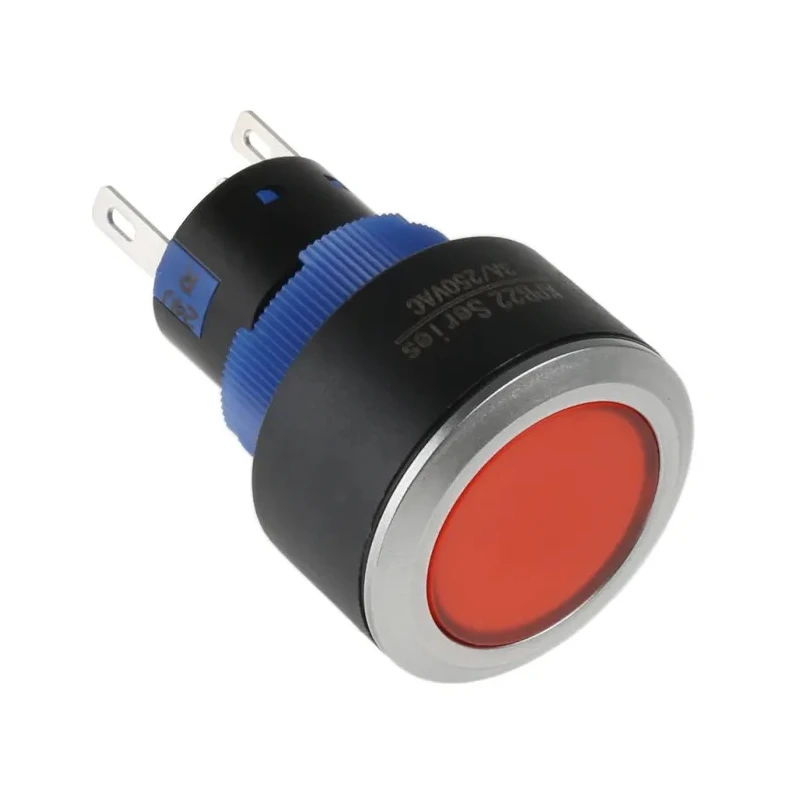

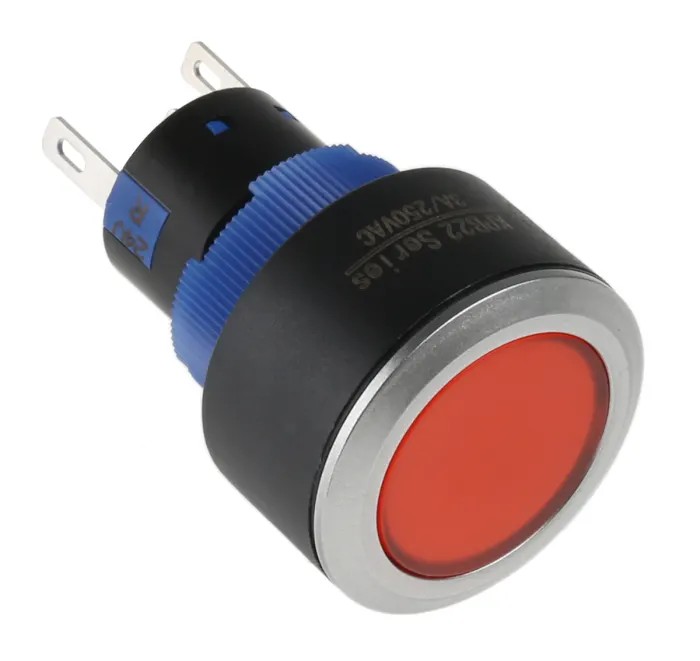

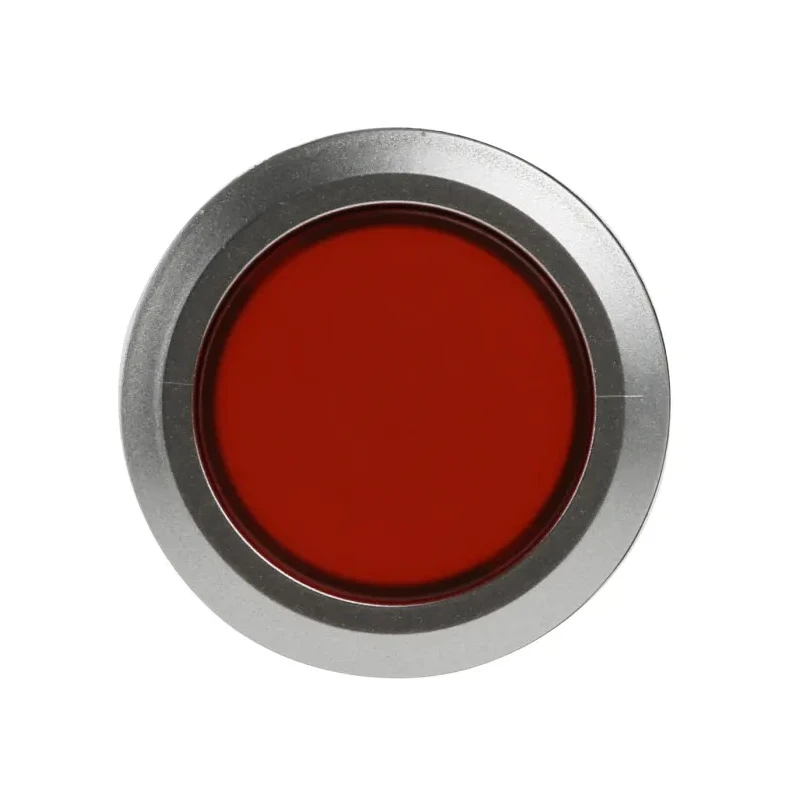

RS PRO Illuminated Push Button Switch Panel Mount Momentary SPDT 22.2 mm Cutout Red LED IP65 36 V dc 250 V KPB22

RS PRO KPB22 is an illuminated push button switch engineered for panel mount applications requiring reliable momentary contact. The switch features a red LED that provides clear status indication and a robust single pole double throw (SPDT) contact configuration suitable for diverse switching needs.

Designed to fit into a 22.2 mm panel cutout, the KPB22 series is IP65 rated, ensuring protection against dust ingress and resistance to water jets, making it ideal for industrial and automation equipment environments.

With a sturdy plastic cover and silver metal cap featuring carved patterns, it combines durability with aesthetic appeal. Its flat actuator style supports ergonomic operation while the solder-type terminals ensure solid electrical connections.

The switch operates reliably across a wide temperature range of -35°C to 70°C, supporting both DC (36 V) and AC (250 V) voltages with a contact current rating of 5 A. These features make it highly suitable for use in communication equipment, wireless devices, electronic measuring instruments, office equipment, and industrial machinery.

Features a momentary switch operation for temporary circuit contact. Incorporates a red LED for clear visual indication of switch status. Fits a 22.2 mm panel cutout, suitable for standard panel installation. Offers single pole double throw (SPDT) contact configuration to switch between two circuits.

Designed with IP65 rated protection for dust tight and low-pressure water jet resistance. Operates reliably within temperature range from -35°C to 70°C for harsh environments. Supports AC voltage up to 250 V and DC voltage up to 36 V.

Capable of handling switch contact current up to 5 A. Equipped with flat style actuator and solder terminal type for secure connections.

This RS PRO push button switch is engineered to meet demanding industrial, automation, and electronic equipment needs, ensuring dependable operation in harsh conditions. Browse the extensive range of switches at EnvMart for precise and quality control components.
