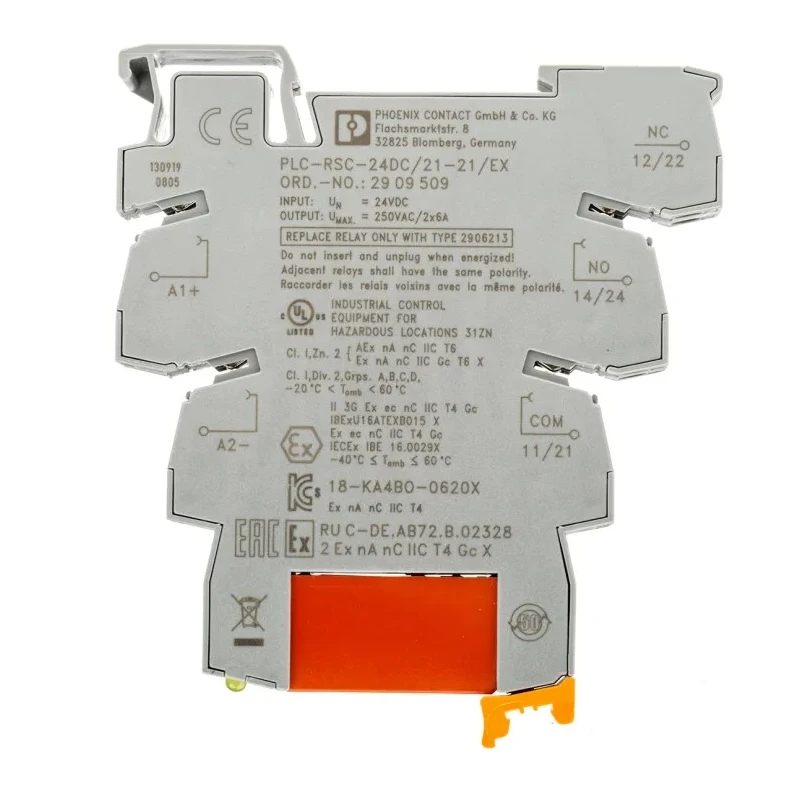

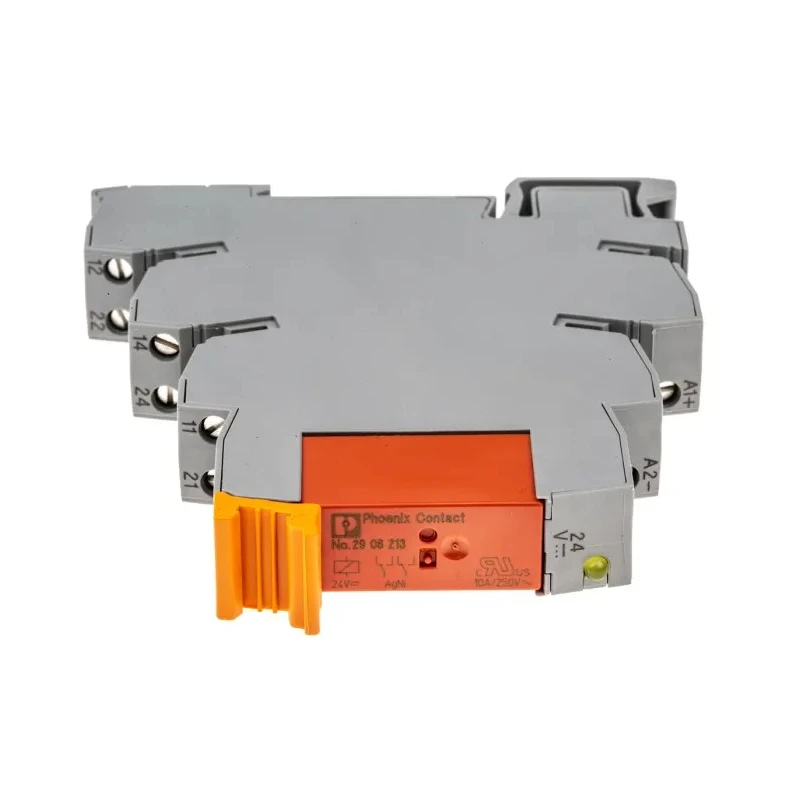

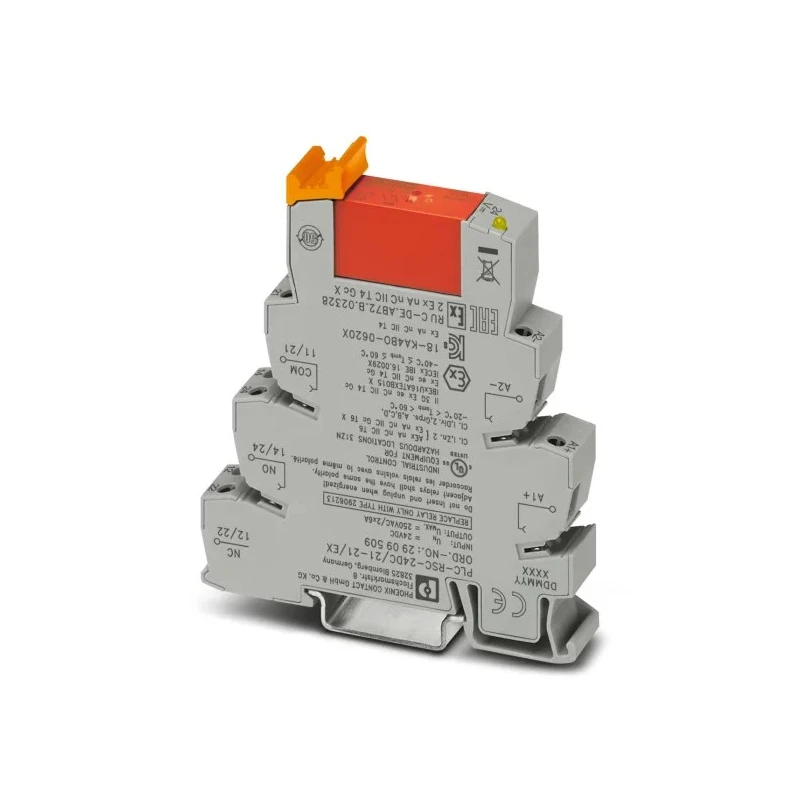

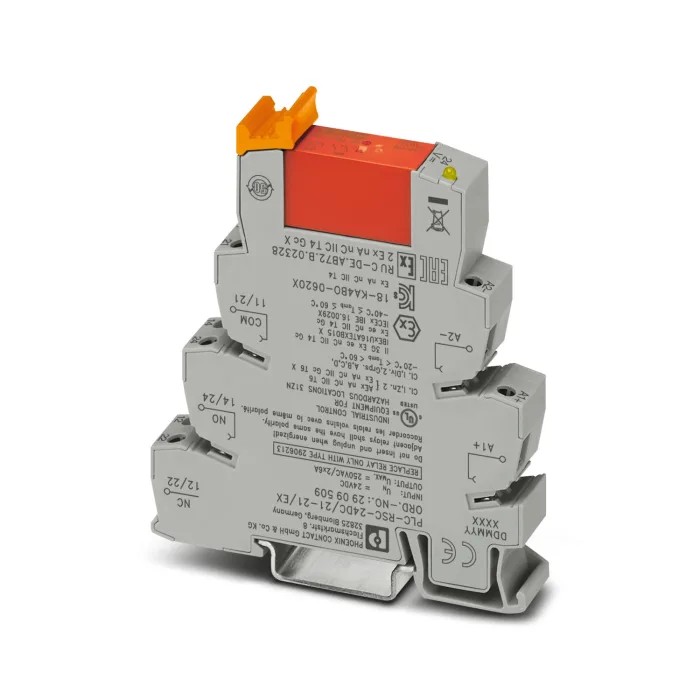

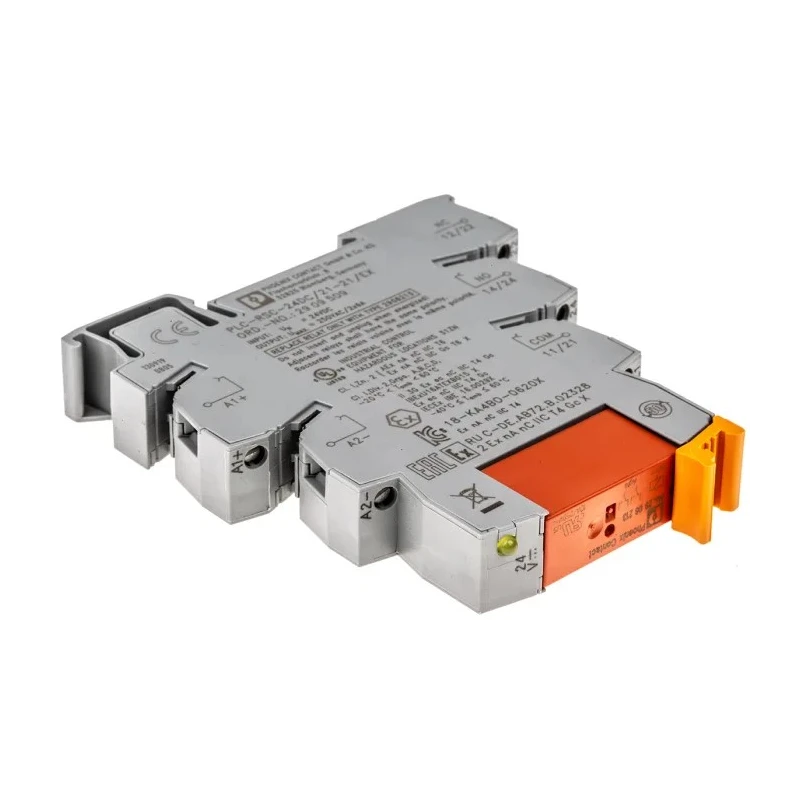

Phoenix Contact EX Series Relay Module, DIN Rail Mount, 24V DC Coil, DPDT, 18mA Coil Current, Silver Alloy Contact 2909509
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 14mm |
| Model | 2909509 |
| Width | 94mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RSC- 24DC/21-21/EX |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10mA |
| Terminal type | Screw |
| Standards/Approvals | IEC 60947-5-1 |
| Coil Voltage | 24V dc |
| Coil Current | 18mA |
| Switching DC Voltage | 5V dc |
| Switching AC Voltage | 5V ac |
Key Features
- The relay features a 24V DC coil voltage for consistent control.
- Double Pole Double Throw (DPDT) contacts provide flexible circuit control.
- Designed for DIN Rail mounting with convenient screw terminals.
- Coil current is rated at 18mA ensuring low power consumption.
- The module has a mechanical relay life expectancy of 30 million cycles for durability.
- Safe isolation is provided via reinforced insulation for enhanced reliability.
- IP20 rating protects against dust ingress to maintain optimal functionality.
- Switching capacities include 10mA switching current and 5V DC/AC switching voltage.
Product Description
Phoenix Contact 2909509 EX Series Relay Module is a high-quality DIN Rail-mounted relay designed for industrial automation and electromechanical systems requiring precise and reliable switching control.
This relay operates with a 24V DC coil voltage and features a dual changeover contact (DPDT) configuration to enhance circuit flexibility and control. It is built to endure demanding conditions with a mechanical life of 30 million switching cycles and reinforced insulation for safe isolation meeting IEC 60947-5-1 standards.
The compact module, measuring 14mm in length, 80mm in height, and 94mm in width, is equipped with screw terminals suitable for solid and flexible conductors from 0.14mm² to 2.5mm².
The relay efficiently handles switching currents of 10mA and switching voltages of 5V DC and 5V AC, suited for control of motors and inductive loads. Its coil current is optimized at 18mA, promoting low power draw.
Designed for harsh industrial environments, it operates reliably between -40°C and 70°C and is rated IP20 for dust protection. Contact material uses a silver alloy ensuring long-term conductivity and reliability.
The relay’s polarity protection and free-wheeling diode safeguard from reverse polarity damage. Maximum switching voltage capability up to 250 VAC/DC and a limiting continuous current of 6A supports various control applications.
Applications include electrical panels, motor control, safety-critical systems, and environments requiring dependable and repeatable switching. This product is manufactured in Germany and complies with CE and IEC 60947-5-1 standards, assuring quality and safety.
Explore similar Electromechanical Interface Relays and automation components in EnvMart's extensive catalog for precise control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay module operates with a coil voltage of 24V DC.
It features a Double Pole Double Throw (DPDT) contact configuration for flexible circuit control.
This relay module measures 14mm in length, 80mm in height, and 94mm in width.
The coil current is rated at 18mA, ensuring low power consumption during operation.
The relay can handle a maximum switching voltage of up to 250 VAC/DC.
It is equipped with screw terminals suitable for solid and flexible conductors ranging from 0.14mm² to 2.5mm².
The relay has a mechanical life expectancy of 30 million cycles, providing durability for long-term use.
It can switch currents of 10mA and voltages of 5V DC and 5V AC.
This relay operates reliably within a temperature range of -40°C to 70°C.
It complies with IEC 60947-5-1 standards, ensuring safety and quality in its applications.
This product is manufactured in Germany, reflecting high manufacturing standards.
It is suitable for applications including electrical panels, motor control, and safety-critical systems.
