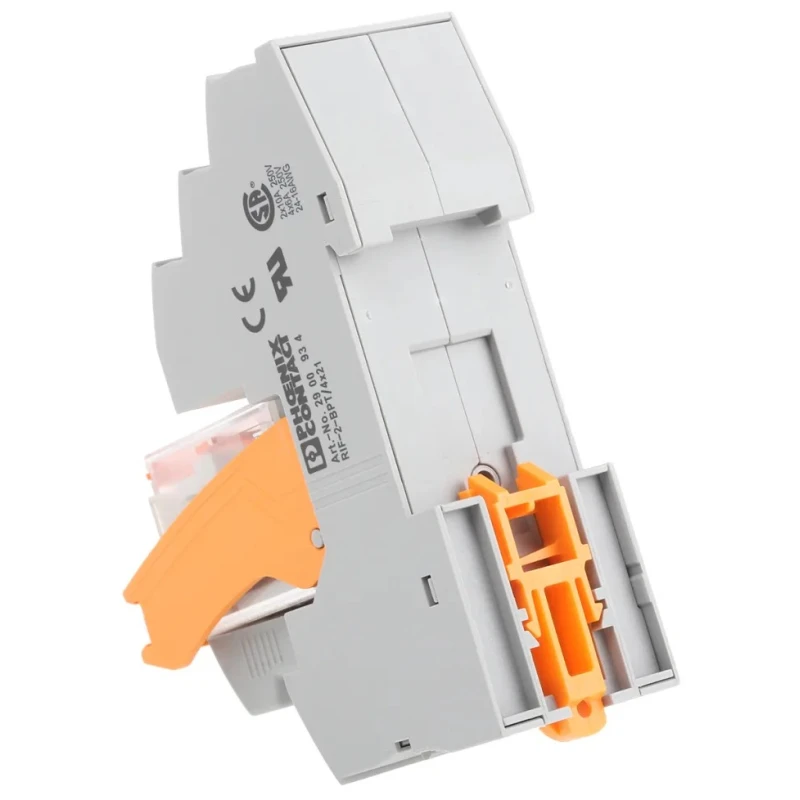

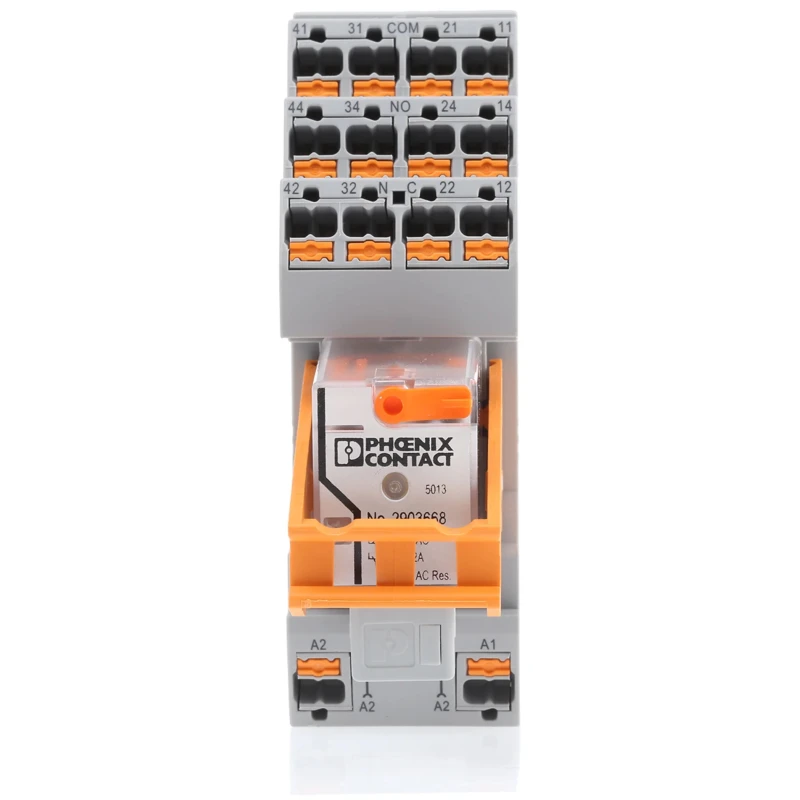

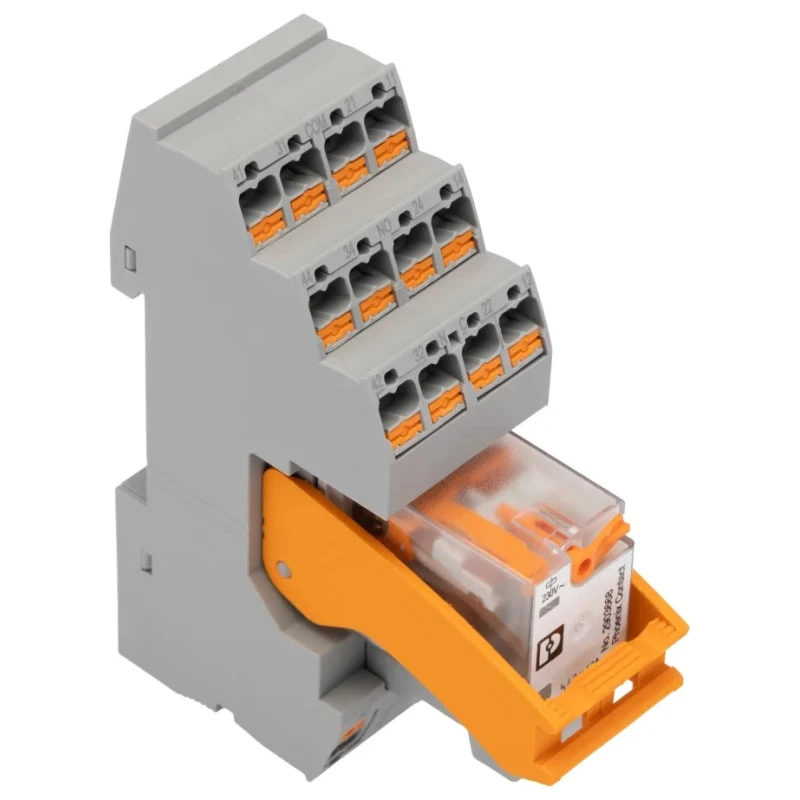

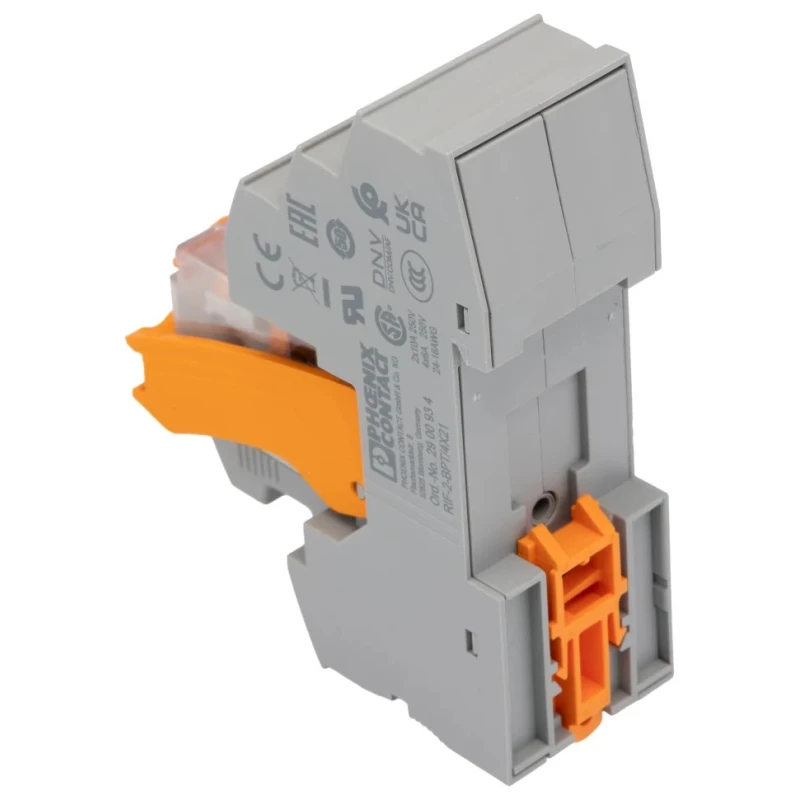

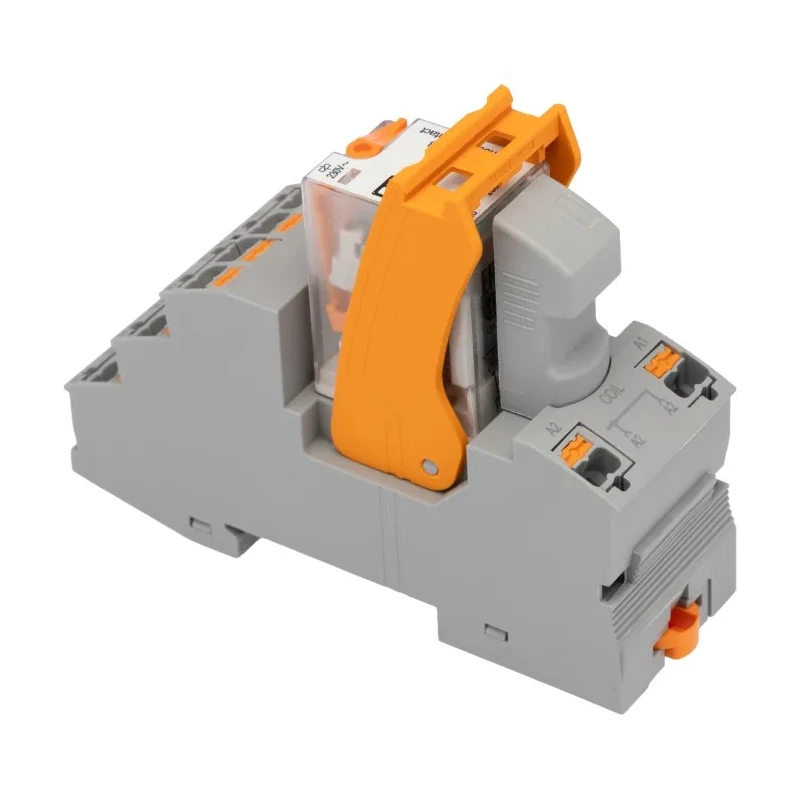

Phoenix Contact DIN Rail Relay Module 230V AC Coil 2A Switching Current DPDT 2903310
Specifications
| Country of Origin | India |
|---|---|
| Brand | Phoenix Contact |
| Height | 96mm |
| Length | 31mm |
| Model | 2903310 |
| Width | 31mm |
| Mount Type | DIN Rail |
| Series | RIF-2-RPT-LV-230AC/2X21 |
| Contact Configuration | DPDT |
| Switching Current | 2A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, EAC |
| Coil Voltage | 230V ac |
| Switching Voltage | 250V ac/dc |
Key Features
- Operates with coil voltage range from 184V to 276V AC for flexibility.
- Features AgNi contact material that enhances electrical conductivity.
- Designed for easy DIN rail mounting and plug-in terminals for quick installation.
- Switching voltage capability of 250V AC/DC suitable for diverse applications.
- Can operate within a temperature range of -40 to +50°C for reliability in harsh environments.
- Supports a mechanical life cycle of up to 20 million cycles ensuring durability.
- Dual-pole double-throw (DPDT) contacts allow control of two separate circuits simultaneously.
- Complies with CSA and EAC standards guaranteeing quality and safety.
Product Description
Phoenix Contact 2903310 DIN Rail Relay Module features a 230V AC coil voltage and is designed for reliable and efficient switching in automated industrial systems. This DPDT relay module allows simultaneous control of two circuits, making it highly versatile in manufacturing, electrical distribution, building automation, and energy management environments.
Constructed with AgNi contact material, it ensures improved conductivity and robust switching performance under an operating temperature range of -40°C to +50°C. The device supports a switching voltage of up to 250V AC/DC and is rated for a switching current of 2A, ideal for medium power applications.
The module is designed for DIN rail mounting with plug-in terminals and fast push-in connection technology, facilitating quick installation and maintenance. It also features a compact form factor measuring 96 mm in height, 31 mm in width, and 31 mm in length, saving valuable space in electrical panels.
With mechanical durability supporting up to 20 million cycles, this relay module provides a long service life. The coil requires a low input current of approximately 6.5 mA, contributing to energy-efficient operation. Compliance with CSA and EAC standards enhances reliability and safety assurance.
Operates over a wide input voltage range of 184V to 276V AC for versatile use. Advanced push-in connection technology enables easy wiring and extension. Non-latching design suitable for various control and switching applications.
Includes a plug-in display/suppressor module to reduce electrical noise. Yellow LED indicator for visual status confirmation during operation. Available in AC and DC coil versions with options for 2 or 4 contacts. Ideal for use in industrial automation, manufacturing, HVAC electrical installations, and power distribution.
This Phoenix Contact DIN Rail Relay Module is a high-quality component engineered for demanding industrial environments. It combines robust mechanical construction with electrical reliability, offering an efficient solution for complex relay switching tasks. For more specialized relay and power module options, explore the Phoenix Contact range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay module operates with a coil voltage range from 184V to 276V AC, providing flexibility for various applications.
It has a switching current rating of 2A, making it suitable for medium power applications.
This model measures 96 mm in height, 31 mm in width, and 31 mm in length, allowing for compact installation in electrical panels.
The relay features a dual-pole double-throw (DPDT) contact configuration, enabling control of two separate circuits simultaneously.
It supports a maximum switching voltage of 250V AC/DC, suitable for diverse applications.
The module can operate within a temperature range of -40°C to +50°C, ensuring reliability in harsh environments.
It is designed for DIN rail mounting, which facilitates easy installation and maintenance.
It complies with CSA and EAC standards, ensuring quality and safety assurance.
The relay features plug-in terminals, which allow for quick and easy wiring connections.
It supports a mechanical life cycle of up to 20 million cycles, providing a long service life.
Yes, it includes a plug-in display/suppressor module to reduce electrical noise and a yellow LED indicator for visual status confirmation during operation.
It is ideal for use in industrial automation, manufacturing, HVAC electrical installations, and power distribution.
