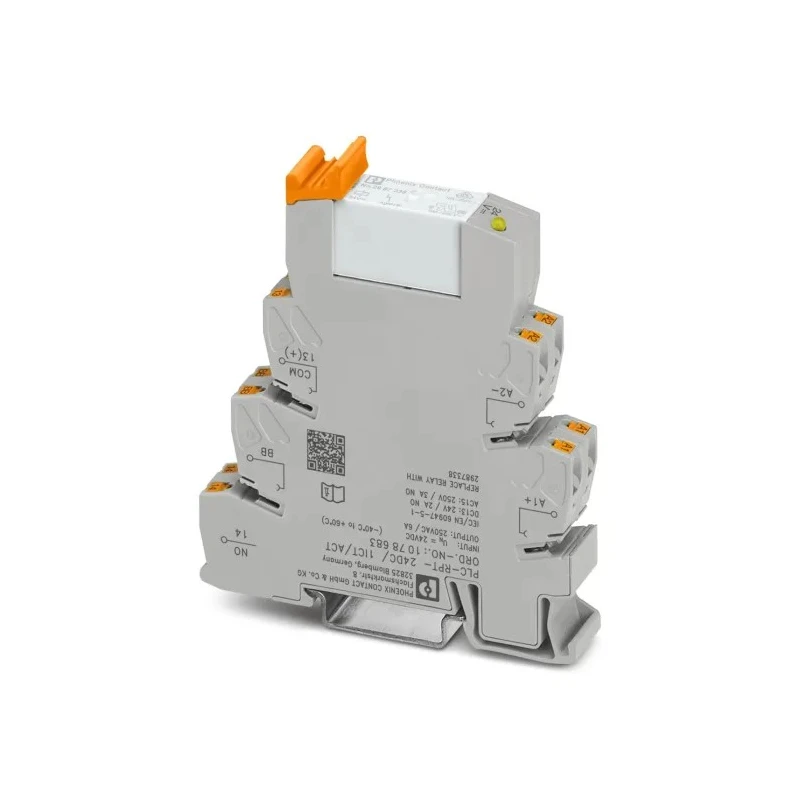

Phoenix Contact PLC-RPT Series Relay Module, DIN Rail Mount, 24V dc Coil, SPST, 18mA Coil Current 1078683

Phoenix Contact 1078683 PLC-RPT Series Relay Module is a DIN rail mount relay designed specifically for PLC interface applications requiring high inrush current tolerance. It operates with a 24V DC coil and features a single pole single throw (SPST) contact configuration with a non-latching coil type drawing only 18mA of coil current.

This relay module supports switching currents of up to 6A with maximum switching voltages of 250V AC and 250V DC. The contact material is silver tin oxide, which ensures long service life and reliable switching performance under various operating conditions.

The compact module measures 50mm in length, 14mm in width, and 80mm in height, enabling easy mounting on DIN rail NS 35/7.5. It operates in ambient temperatures from -40°C to 60°C, making it suitable for diverse industrial environments.

The PLC-RPT series is optimized for switching strong capacitive loads such as LED lighting ballast, with a robust design that safely handles inrush currents up to 800 A. The push-in terminal technology allows for a secure, fast connection to system wiring, enhancing installation efficiency.

Additional features include functional plug-in bridges and direct load return line connection through the actuator version, enabling versatile system integration. The relay module complies with EN 61810-1 and EN 50178 standards for safety and reliability.

Manufactured in Germany, this relay module suits industrial, automation, and control applications requiring dependable signal conditioning and interface relays. This relay module features a SPST contact configuration ensuring reliable switching.

The coil type is non-latching with a low operating coil current of 18mA. It supports switching currents up to 6A at voltages of 250V DC and 250V AC. The device is suitable for operating temperatures ranging from -40°C to 60°C.

The relay module uses silver tin oxide contact material for durability and performance. Compact dimensions of 50mm length, 14mm width, and 80mm height allow easy DIN rail installation. It withstands high inrush currents up to 800 A making it ideal for switching capacitive loads like LED lights.

Push-in terminal connection provides efficient system cabling and secure operation. This product is made in Germany and is compliant with EN 61810-1 and EN 50178 standards. Explore the melange of high-quality Relay Modules and interface relays available at EnvMart, your destination for industrial electrical components.
