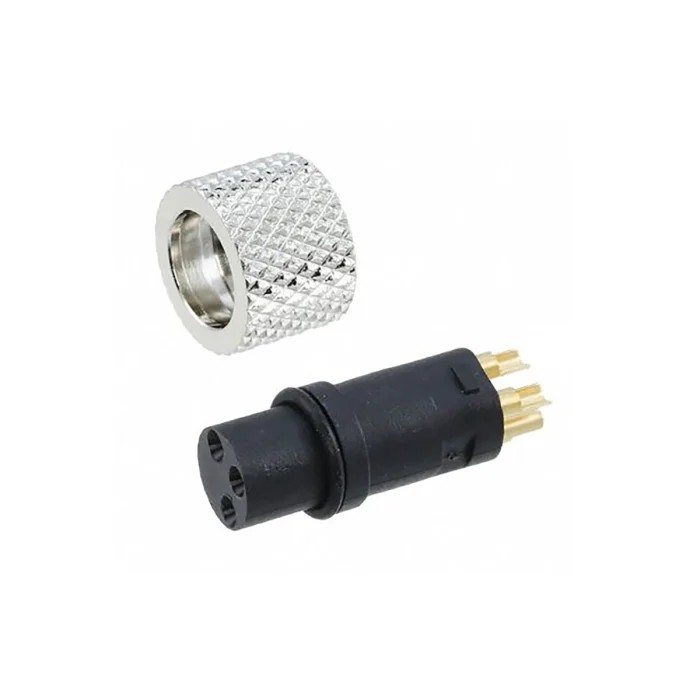

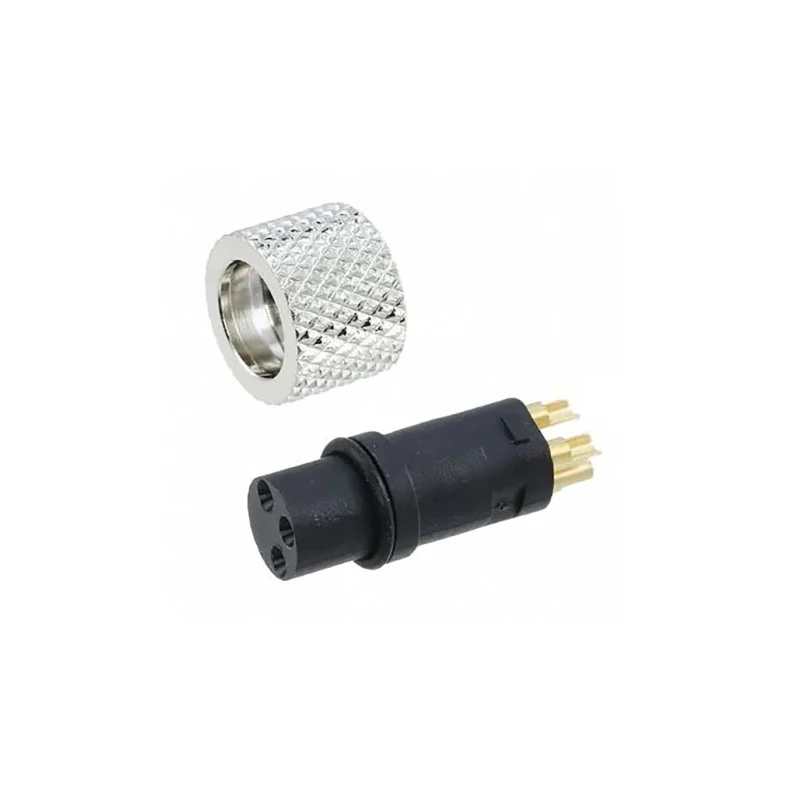

Norcomp Circular Connector M8 Cable Socket Female 4 Contacts 125V IP67 854-004-203RLS4
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 125.0V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 854-004-203RLS4 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | 854 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| O-ring | NBR / EPDM - Black |
| Minimum Operating Temperature | -40°C |
| Insulator | Male: PBT-Black |
| Contacts | Male: Copper Alloy / Brass, Gold Plated |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Mating Type | Threaded |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Nut | Brass-Nickel Plated |
| M8 connector is available in | 3 pin, 4 pin, 5 pin, 6 pin |
| M8 CONNECTOR SHELL | Brass-Nickel Plated |
| Female | PBT-Black |
Key Features
- Connector supports a current rating of 5A.
- Compatible with 125 volts operating voltage.
- Features a female contact gender and threaded mating type.
- Operates reliably between -40°C and 85°C.
- Constructed with thermoplastic housing and gold-plated bronze contacts.
- Waterproof design suitable for harsh environments.
- Compact straight orientation ideal for cable mounting.
- Meets IP67 sealing for dust and water ingress protection.
Product Description
The Norcomp 854-004-203RLS4 circular connector is a high-quality industrial connector designed for cable mounting applications. It features 4 contacts with a female socket configuration, housed in a durable thermoplastic material. The connector supports a current of 5A and an operating voltage of 125 volts, making it suitable for various electronic and electrical equipment connections.
This connector operates efficiently within a wide temperature range from -40°C to 85°C, ensuring reliable performance even in demanding environmental conditions. The gold-plated contacts provide excellent electrical conductivity and corrosion resistance, while the bronze contact material enhances durability.
The M8 size connector includes a brass-nickel plated shell, threaded mating type for secure connections, and IP67 rating, offering protection against dust and water ingress. These features make it ideal for industrial, manufacturing, and automation applications requiring rugged and reliable circular connectors.
The Norcomp 854 series is available with 3 to 6 pin options, however, this specific model includes 4 pins. The termination type is solder, enabling robust cable connection. The connector assembly includes components such as an O-ring made of NBR/EPDM for sealing, and a nut forged from brass-nickel plating to maintain mechanical integrity.
Applications include industrial automation systems, sensors, robotics, and equipment wiring where secure, durable, and water-resistant connections are critical. The product is manufactured in Taiwan, Province Of China, ensuring compliance with international manufacturing standards.
Connector supports a current rating of 5A. Compatible with 125 volts operating voltage. Features a female contact gender and threaded mating type. Operates reliably between -40°C and 85°C. Constructed with thermoplastic housing and gold-plated bronze contacts.
Waterproof design suitable for harsh environments. Compact straight orientation ideal for cable mounting. Meets IP67 sealing for dust and water ingress protection. Series 854 connector with solder termination type. Manufactured in Taiwan, Province Of China.
Explore the Norcomp industrial connector range on EnvMart for reliable connectivity solutions in electronics and industrial automation sectors.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A.
It is compatible with an operating voltage of 125 volts.
This connector operates reliably between -40°C and 85°C.
It features female contacts made of gold-plated bronze for excellent conductivity.
The connector meets an IP67 rating for dust and water ingress protection.
It is constructed with a thermoplastic housing and features gold-plated bronze contacts.
This model utilizes solder termination for robust cable connections.
This connector includes 4 contacts.
It features a threaded mating type for secure connections.
The connector has a compact straight orientation, making it ideal for cable mounting.
It is manufactured in Taiwan, Province Of China.
It is suitable for industrial automation systems, sensors, robotics, and equipment wiring.
