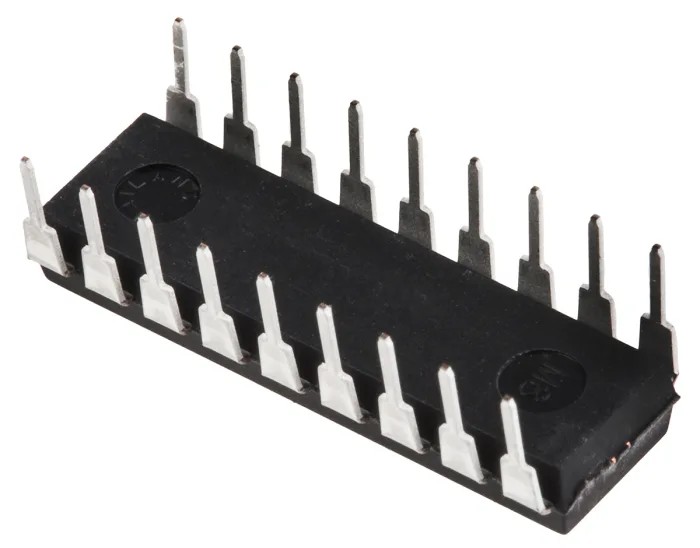

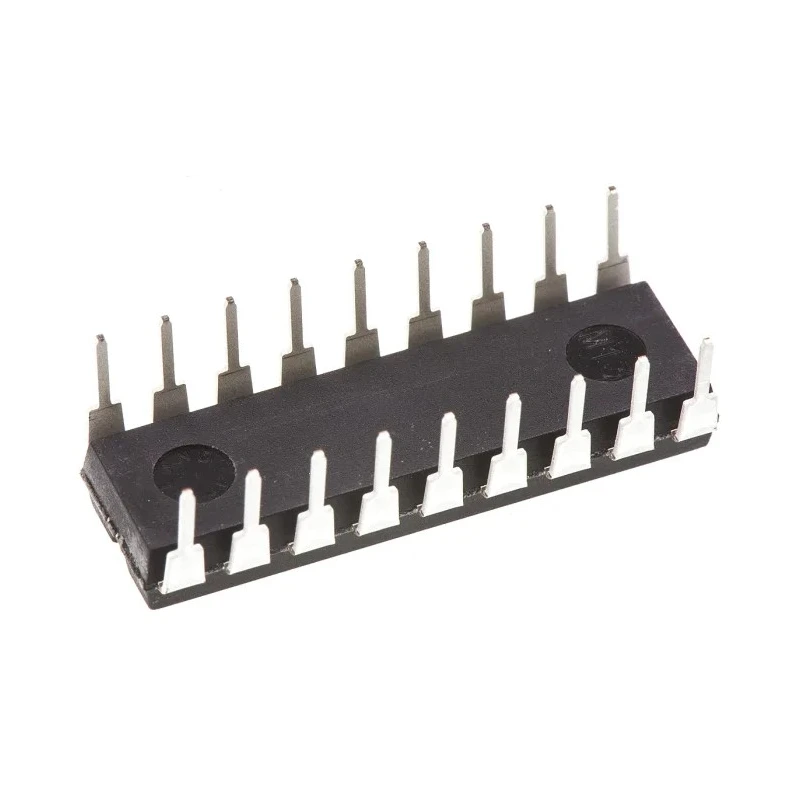

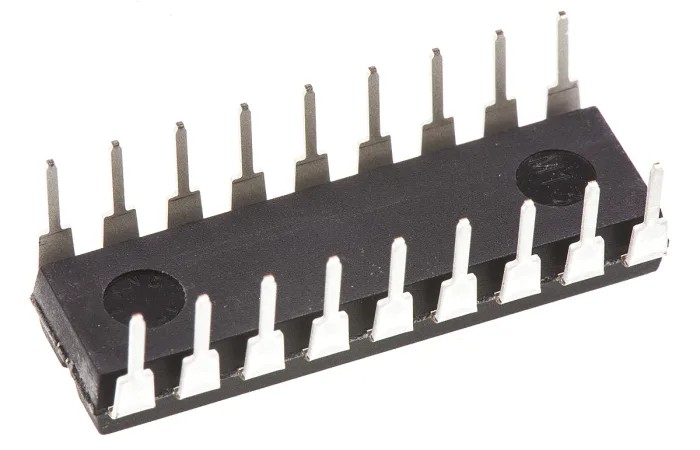

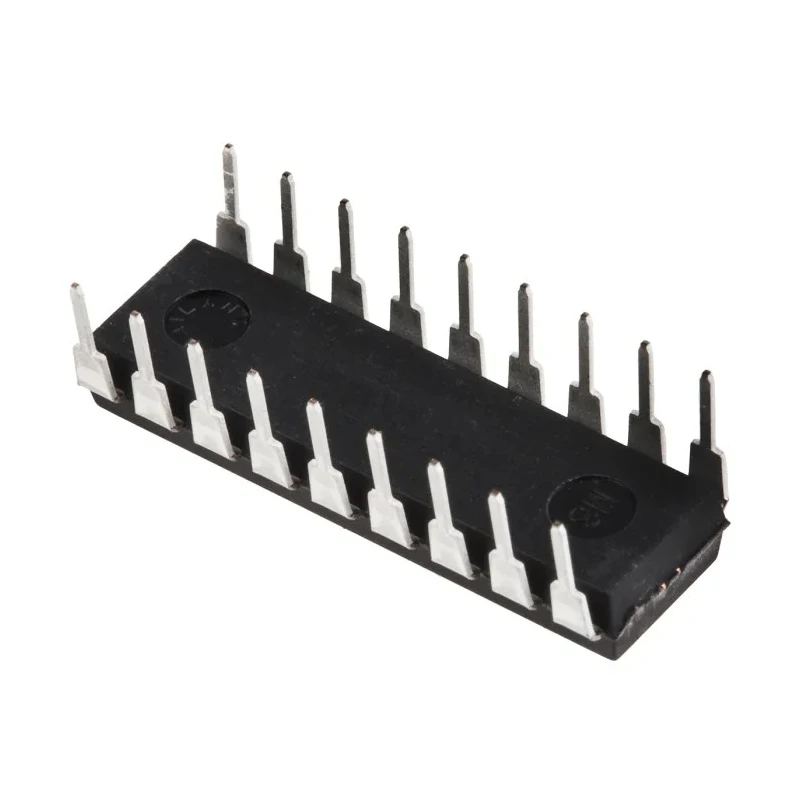

Microchip 8 bit PIC PIC16F8X Microcontroller 10 MHz 1.75kB FLASH 18-Pin PDIP PIC16F84-10/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.43mm |
| Length | 22.86mm |
| Model | PIC16F84-10/P |
| Width | 6.86mm |
| Mount Type | Through Hole |
| Series | PIC16F8X |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 68bit |
| Interface Type | RS232 |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 10MHz |
| Number of Programmable I/Os | 13 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | FLASH |
Key Features
- Features 33 instruction words with 2-level hardware stack for efficient program flow.
- Low power consumption operation with a supply voltage range of 2V to 6V.
- Includes 13 programmable I/O pins and an 8-bit timer with watchdog capability.
- Built on RISC architecture ensuring fast instruction execution at 200 nanoseconds per instruction.
- Designed to operate reliably within temperature range 0°C to 70°C.
- Compact 18-pin PDIP package with dimensions 22.86 mm length, 6.86 mm width, and 3.43 mm height.
- Ideal for high-speed automotive and appliance motor control applications.
- Flash technology allows rapid program customization and in-circuit debugging support available.
Product Description
Microchip PIC16F84-10/P is an 8 bit PIC microcontroller from the PIC16F8X series, operating at a maximum clock frequency of 10 MHz. Featuring 1.75kB of FLASH program memory and 68 bits of RAM, this device supports 13 programmable I/Os within an 18-pin PDIP package optimized for through-hole mounting. The microcontroller’s RISC architecture with 33 instruction words enables efficient program execution at 200 nanoseconds per instruction cycle.
Designed for applications requiring low power dissipation, it supports operating voltages from 2V up to 6V with a maximum power dissipation of 800mW. Its temperature operating range extends from 0°C to 70°C, making it suitable for industrial and consumer electronics environments. The device does not include ADC channels but incorporates a single timer and watchdog timer capabilities for reliable operation.
The compact PDIP package dimensions are 22.86 mm in length, 6.86 mm width, and 3.43 mm height ensuring easy integration on printed circuit boards with standard 18-pin sockets. Built-in flash memory allows for rapid firmware updates and in-circuit debugging, supporting accelerated development cycles.
33 instructions with two-level hardware stack enhance program control. 8-bit wide data path with 12-bit instructions for compact code. Fast 200 ns instruction execution time for high performance. Low power design conserving energy in embedded systems.
Suitable for high-speed automotive and motor control systems. In-circuit debugging and programming support streamline development. RoHS compliant ensuring environmental safety in manufacturing.
This microcontroller is widely used in industrial, automotive, consumer electronics, and educational applications where reliable 8-bit control is essential. Its robust feature set and ease of programming make it a popular choice for embedded system designers.
Explore additional accessories like PICkit debuggers and microcontroller development boards to facilitate programming and testing of the PIC16F84-10/P Microcontroller. EnvMart offers comprehensive selections in electronic components for precision industrial applications and embedded system engineering.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 10 MHz.
It features a program memory size of 1.75 kB.
This microcontroller has 13 programmable I/O pins.
The operating voltage range for this model is from 2V to 6V.
The dimensions of this microcontroller are 22.86 mm in length, 6.86 mm in width, and 3.43 mm in height.
The operating temperature range is from 0°C to 70°C.
It is available in an 18-pin PDIP package optimized for through-hole mounting.
No, this microcontroller does not include any ADC channels.
The maximum power dissipation for this model is 800 mW.
This microcontroller is built on a RISC architecture.
This model includes one timer with watchdog capabilities.
Yes, the PIC16F84-10/P is RoHS compliant, ensuring environmental safety in manufacturing.
