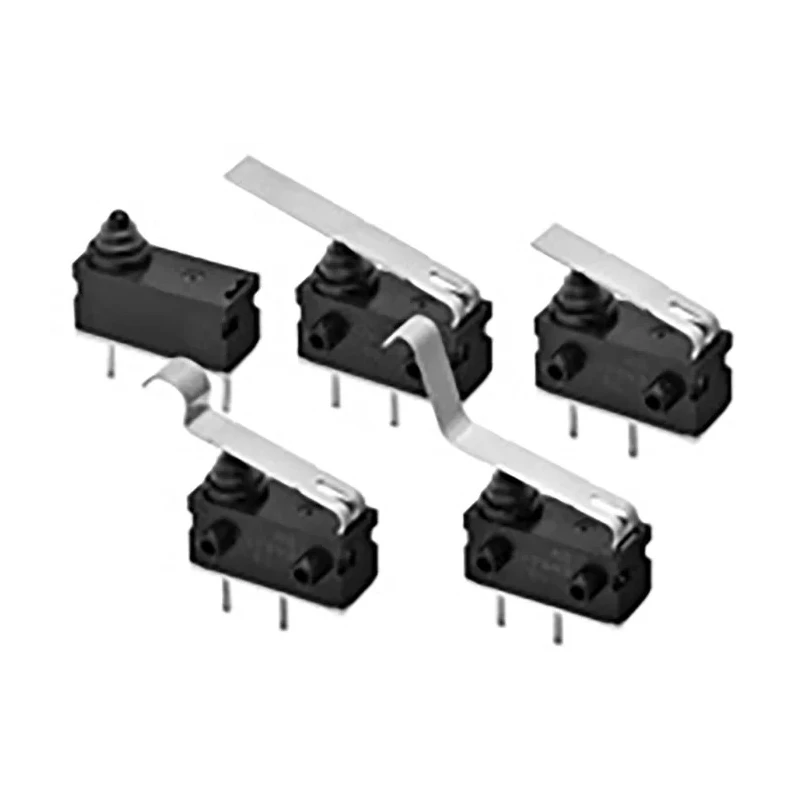

Omron Pin Plunger Subminiature Micro Switch PCB Terminal 0.1A 12V dc SPST IP67 D2AW-EL002D R

Name: Omron Pin Plunger Subminiature Micro Switch PCB Terminal 0.1A 12V dc SPST IP67 D2AW-EL002D R
Brand: Omron
SKU: 96547
Price: 2.68 USD
Availability: InStock



Category Micro Switch Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Model	D2AW-EL002D R
IP Rating	IP67
Housing Material	Rubber
Series	D2AW
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Actuator Type	Pin Plunger
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Standards/Approvals	RoHS
Contact DC Voltage	12V dc
Switch Contact Current	0.1A
Operating Force	1N
Mechanical Life	200000Operations
Microswitch Type	Subminiature

Key Features

The micro switch ensures high reliability with a mechanical life of 200,000 operations.
Designed for quiet operation using sliding contact construction for advanced automotive and industrial applications.
Rubber housing material offers robust insulation and environmental resistance.
Operating temperature range from -40°C to 85°C suits diverse environmental conditions.
Compact subminiature form factor with a long stroke seal delivering high insulation performance.
Double contact reliability achieved by twin clipping contacts to ensure consistent switching.
Complies with RoHS standards and is produced in China.
Operating force is 1 Newton for precise actuation control.

Product Description

The Omron D2AW-EL002D R subminiature micro switch is a high-precision component engineered for demanding electrical and automation applications. Featuring a pin plunger actuator and PCB terminal type connection, this switch is designed for robust performance in compact electronic assemblies. It supports a contact current of 0.1A with a contact configuration of SPST (Single Pole Single Throw) and operates at 12 V dc.

The switch's IP67 rating guarantees dust-tight protection and resistance to water ingress, making it suitable for harsh environments including industrial machinery, automotive systems, and control panels. The rubber housing material enhances durability and offers excellent insulation.

With an operating force of 1 Newton and a mechanical life rated for 200,000 operations, the switch ensures precise and reliable actuation over extended periods. Its wide operating temperature range from -40°C up to 85°C supports use in diverse climatic conditions.

Double reliability is achieved through twin clipping contacts, while sliding contact construction minimizes operating noise - critical for high-grade automotive and industrial use cases. The product complies with RoHS environmental standards.

High reliability with long life operation. Quiet operation enabled by sliding contact design. Robust rubber housing and IP67 sealing. Certified RoHS compliant. Compact subminiature form factor ideal for PCB mounting. Designed for automotive, industrial, and laboratory applications.

Operating temperature range: -40°C to 85°C. Double contact clipping for enhanced reliability.

This Micro Switch is ideal for industrial automation, electrical control equipment, laboratory instrumentation, automotive systems, and other applications demanding compact, reliable switching solutions. Explore more advanced switches in our Electronics & Electricals category at EnvMart for a comprehensive selection of quality components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The operating temperature range of the Omron D2AW-EL002D R micro switch is from -40°C to 85°C, making it suitable for diverse environmental conditions.

This micro switch features a Single Pole Single Throw (SPST) contact configuration, allowing for simple on/off switching.

The mechanical life of the Omron D2AW-EL002D R is rated for 200,000 operations, ensuring long-term reliability in applications.

The switch has an IP67 rating, providing dust-tight protection and resistance to water ingress, suitable for harsh environments.

This micro switch uses a pin plunger actuator, which is designed for precise actuation control.

The maximum DC voltage for the Omron D2AW-EL002D R is 12V, making it appropriate for various low-voltage applications.

The contact current rating for this micro switch is 0.1A, suitable for low power applications.

The housing of the Omron D2AW-EL002D R is made from rubber, which enhances insulation and environmental resistance.

An operating force of 1 Newton is required for actuation of this micro switch, allowing for precise control.

This model complies with RoHS standards, ensuring it meets environmental safety requirements.

The Omron D2AW-EL002D R features a PCB terminal type connection, designed for easy integration into electronic assemblies.

This switch is suitable for various applications including industrial automation, automotive systems, and laboratory instrumentation due to its compact size and reliability.
