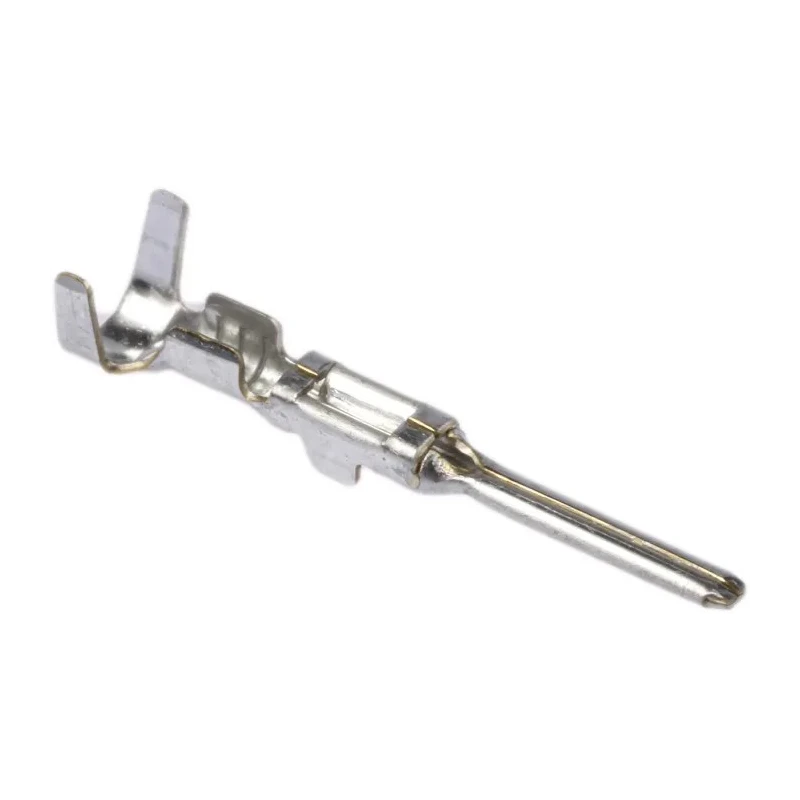

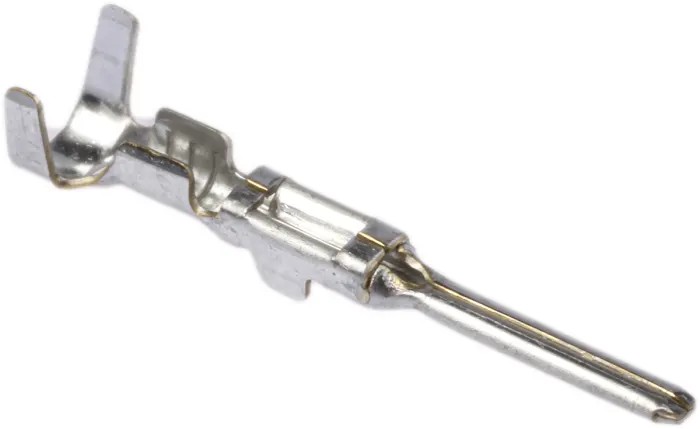

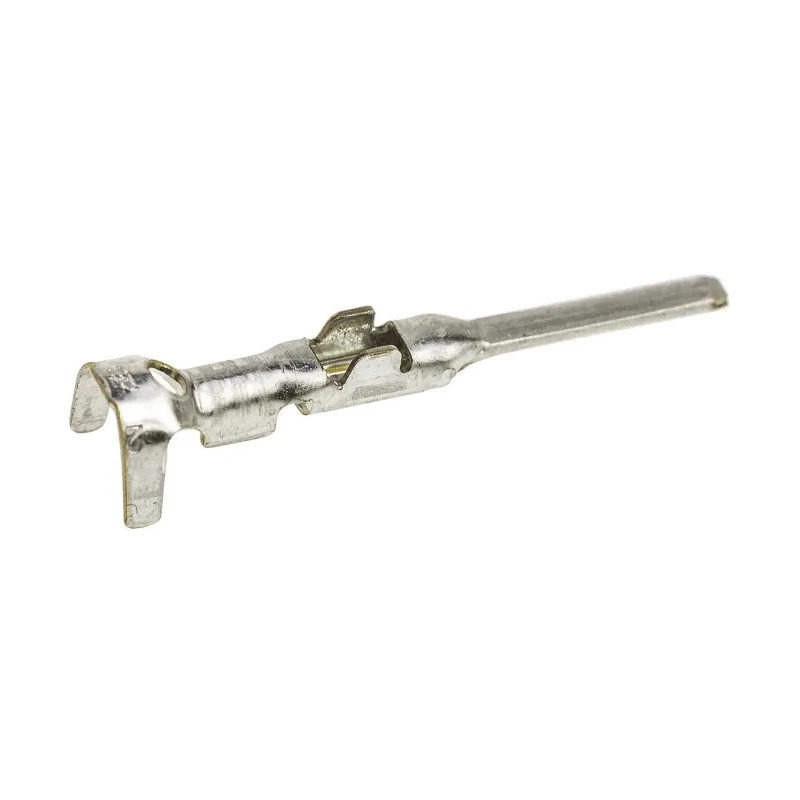

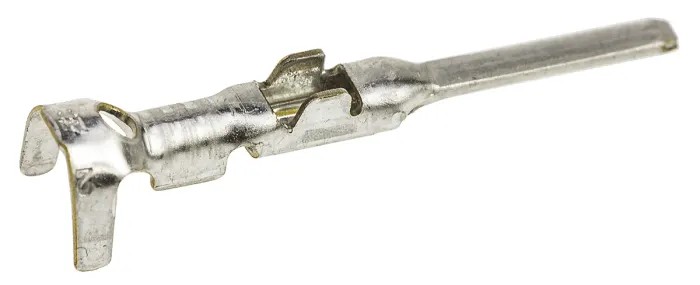

TE Connectivity MINI-MIC Series Male Crimp Terminal, 21 AWG Min Crimp, 20 AWG Max, Tin Plated Brass 183036-1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | TE Connectivity |
| Current | 14A |
| Length | 22.7mm |
| Model | 183036-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.35mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
| TE Connectivity, Superseal Nylon Male 2 WayBrand | TE Connectivity |
Key Features
- Designed for wire sizes from 21 AWG minimum to 20 AWG maximum.
- Constructed of tin plated brass for optimum conductivity and corrosion resistance.
- Compatible with AMP SUPERSEAL 1.5 Connector Housings with a current rating of 14A.
- Operates reliably between -40°C and 125°C temperature range.
- Features a crimp termination for secure and stable wire connections.
- Offers a secondary lock mechanism to ensure correct and complete contact insertion.
- Suitable for automotive and industrial use requiring waterproof protection.
Product Description
TE Connectivity 183036-1 MINI-MIC Series Male Crimp Terminal is a high-quality crimp contact designed for use with AMP SUPERSEAL 1.5 Connector Housings. This terminal supports wire sizes ranging from 21 AWG to 20 AWG and is rated for a current of 14A. The contact material is tin plated brass, which offers excellent electrical conductivity and resistance to corrosion, making it highly dependable for automotive and industrial electrical connections.
Operating effectively within a temperature range from -40°C to 125°C, this crimp terminal ensures consistent performance even in harsh environments. The terminal's length of 22.7 mm allows for integration in compact assemblies.
The MINI-MIC series features a crimp termination type that guarantees a secure connection with wire strands. It incorporates a two-step positive lock and a secondary lock to ensure full contact insertion and maintain mechanical stability. When used with suitable wire seals, the terminal assembly can achieve an IP67 ingress protection rating, providing water and dust resistance critical for automotive sensor applications such as oil pressure senders and water temperature monitors.
This product is manufactured in Italy and conforms to automotive and industrial electrical connection standards. It is suitable for use in automotive, industrial manufacturing, and water treatment equipment requiring high-reliability connectors. The robust design ensures long service life and dependable electrical performance in diverse operating conditions.
Designed for wire sizes from 21 AWG minimum to 20 AWG maximum. Constructed of tin plated brass for optimum conductivity and corrosion resistance. Compatible with AMP SUPERSEAL 1.5 Connector Housings with a current rating of 14A.
Operates reliably between -40°C and 125°C temperature range. Features a crimp termination for secure and stable wire connections. Length of the terminal is 22.7 mm, ensuring compact installation. Offers a secondary lock mechanism to ensure correct and complete contact insertion.
Provides corrosion resistance and reliable connection for automotive and industrial uses.
Explore additional TE Connectivity Crimp Contacts and automotive electrical components within EnvMart’s extensive catalog for tailored solutions that meet rigorous industry standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports wire sizes ranging from 21 AWG minimum to 20 AWG maximum.
It is rated for a current of 14A.
The terminal is constructed of tin plated brass, which provides excellent electrical conductivity and corrosion resistance.
It operates reliably between -40°C and 125°C.
The length of the terminal is 22.7 mm, allowing for compact installation.
This model is compatible with AMP SUPERSEAL 1.5 Connector Housings.
It features a crimp termination type that guarantees a secure connection with wire strands, along with a secondary lock mechanism for complete contact insertion.
It is suitable for automotive and industrial applications requiring high-reliability connectors, particularly in environments needing waterproof protection.
When used with suitable wire seals, the terminal assembly can achieve an IP67 ingress protection rating, providing water and dust resistance.
This terminal is manufactured in Italy.
It conforms to automotive and industrial electrical connection standards.
It incorporates a two-step positive lock and a secondary lock to ensure full contact insertion and maintain mechanical stability.
