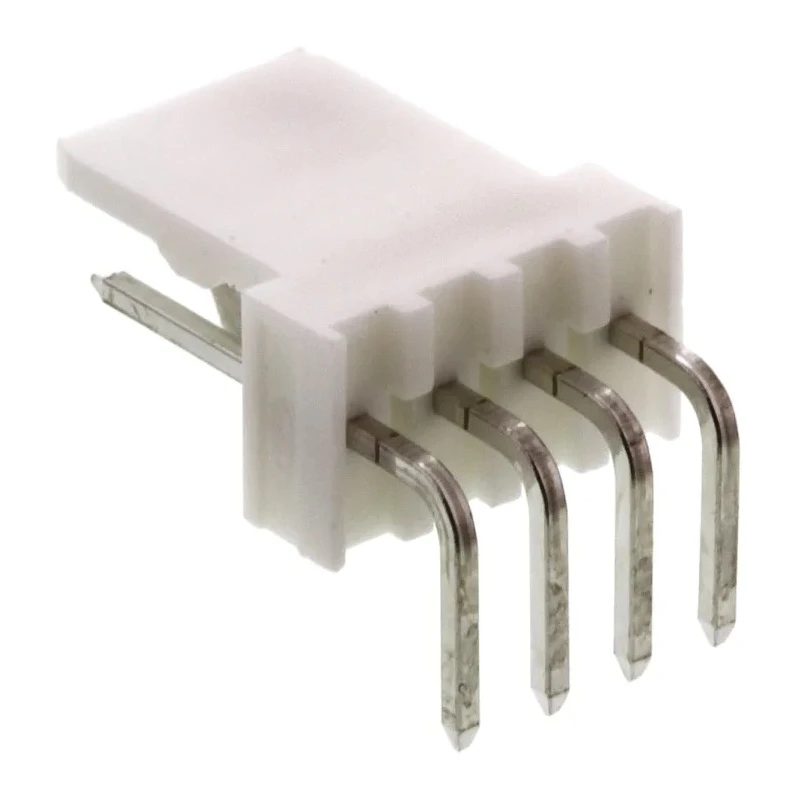

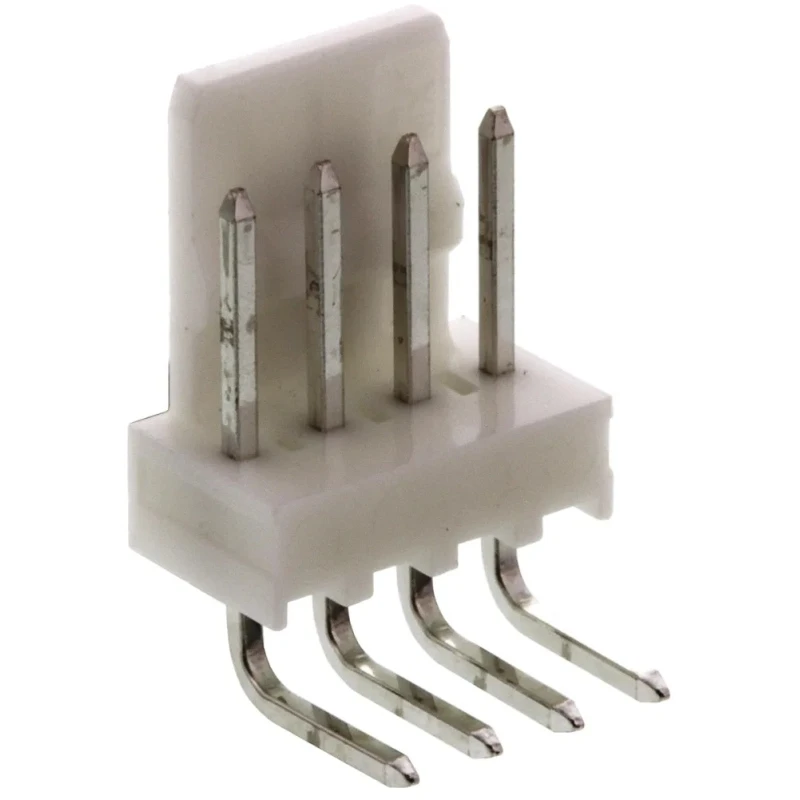

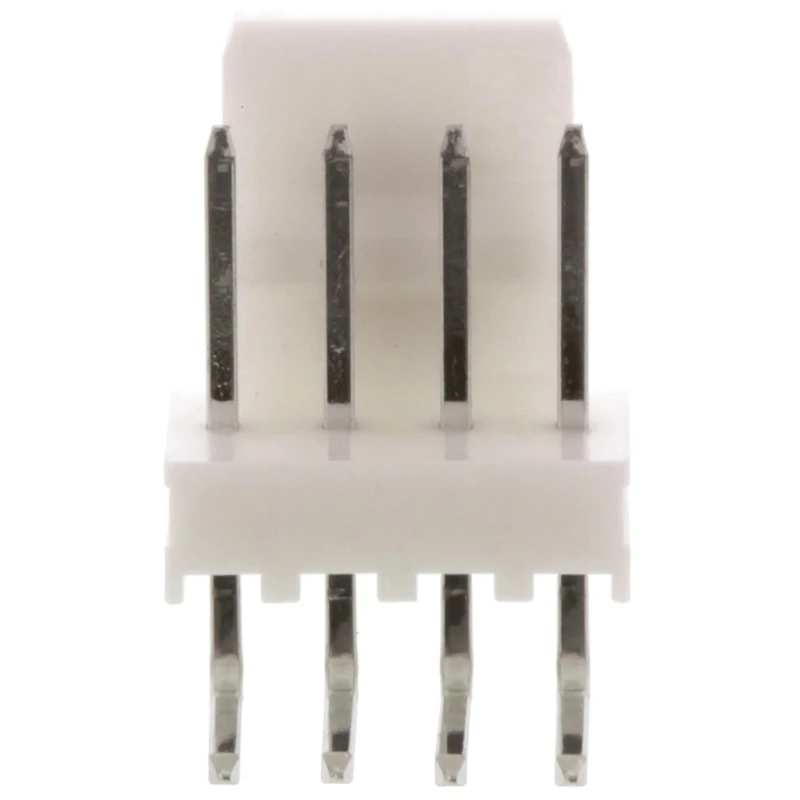

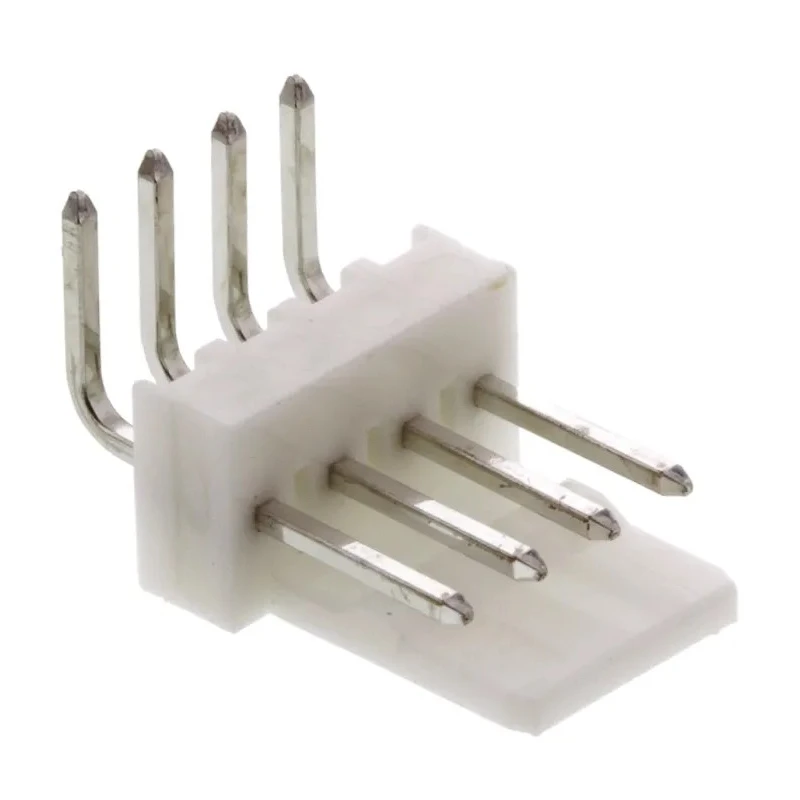

Molex KK 254 Series Right Angle Through Hole Pin Header 4 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-7048

Molex 22-05-7048 KK 254 Series Right Angle Through Hole Pin Header is a precision wire-to-board connector featuring 4 male contacts arranged in a single row with 2.54 mm pitch. This connector facilitates reliable electrical connections in various industrial and electronic applications.

Its right-angle orientation is advantageous in designs where PCB space optimization is critical, offering reduced cable strain while maintaining solid mechanical stability through through-hole mounting. The brass contacts are tin-plated to ensure excellent conductivity and corrosion resistance, supporting current up to 4 A and voltage up to 500 V.

The housing is constructed from UL 94V-0 rated nylon, providing self-extinguishing safety characteristics suitable for demanding electrical environments. Operating temperature range is from -40°C to 105°C, ensuring performance under varied thermal conditions.

Solder termination ensures secure and durable board connections, making this header suitable for automation equipment, consumer electronics, computer networks, and other industrial devices.

Constructed with brass male contacts for excellent conductivity and corrosion resistance. Features a right-angle orientation reducing cable strain and saving PCB space. Nylon housing material rated UL 94V-0 ensures electrical safety with self-extinguishing properties.

Designed for through-hole mounting with solder termination for secure, durable connections. Operates reliably between -40°C to 105°C temperature range. Supports voltage rating up to 500 V and current carrying capacity of 4 A.

Unshrouded design facilitates easy mating with counterpart connectors. Tail pin length measures 3.8 mm and mating pin length is 6.71 mm for robust contacts. Ideal for electronic devices, automation systems, and computer network interfacing.

This header is indispensable in applications requiring compact, secure PCB connections, particularly in industrial electronics and automation. Molex connectors are known for their reliability and high-quality standards, ensuring dependable performance in production environments.
