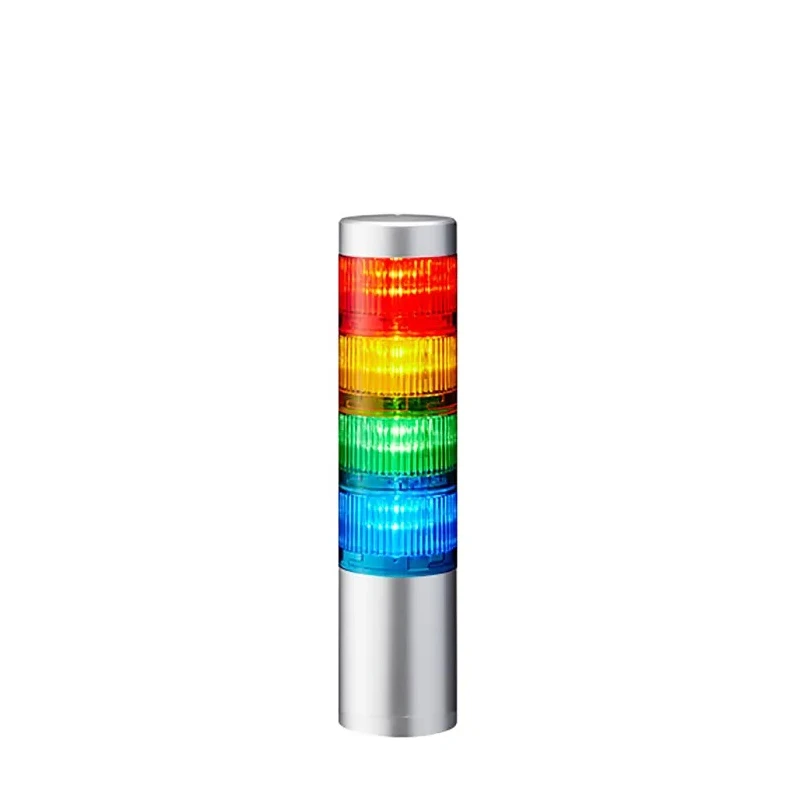

Patlite LR6 Series Blue, Clear, Green, White, Amber, Red Signal Tower Buzzer, 4 Lights 24V DC Direct Mount LR6-402WJNU-RYGB
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 259mm |
| Model | LR6-402WJNU-RYGB |
| IP Rating | IP65 |
| Mount Type | Direct Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 45mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Terminal Block |
| Lens Colour | Blue, Clear, Green, White, Amber, Red |
| Standards/Approvals | EMC (EN 61000-6-4,EN 61000-6-2), UL 508, UL Recognized Component (File No.E215660), FCC Part 15 Subpart B Class A, RoHS (EN 50581), KC (KN 61000-6-4,KN 61000-6-2), CSA-C22.2 No. 14 |
| Maximum Supply Voltage | 24V |
| Housing Colour | Silver |
| Light Effect | Flashing |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 4 |
| Connection Cable Length | 3.3m |
| Multifunction | Yes, Yes |
Key Features
- This signal tower features a modular twist and lock system for easy customization and reconfiguration of LED and sound modules.
- It offers a bright, even flashing light effect with buzzer sound for effective industrial signalling.
- The device includes a re-engineered enclosed sound module producing omnidirectional buzzer sound at 85 to 90 dB.
- Constructed with a silver housing and IP65 rating, it is suitable for harsh environmental conditions including temperature ranges from -20°C to 50°C.
- Compact design with 259mm height and 60mm base diameter facilitates easy installation in diverse industrial applications.
- Connectivity is provided by a 3.3m cable and terminal block, supporting 24V DC supply with current consumption of 45mA.
- Suitable for use in automation signalling, electrical control gear systems, and safety alert environments.
Product Description
Patlite LR6-402WJNU-RYGB is a high-quality 4-light signal tower buzzer designed for industrial automation signalling applications. It features multi-colored LED lenses in blue, clear, green, white, amber, and red, enabling clear, visible alerts with flashing light effects and buzzer sound output for comprehensive signal communication.
The signal tower is constructed with a sturdy silver housing and incorporates a modular twist and lock system, allowing quick customization and module replacement for flexibility. The direct mount base ensures solid installation with a compact footprint measuring 259mm in height and 60mm in diameter, ideal for machines and control panels.
With an IP65 ingress protection rating, the unit offers reliable operation in dusty and wet conditions, and operational temperature ranges from -20°C to 50°C ensure durability in demanding environments. The device draws only 45mA current at a 24V DC supply, making it energy efficient.
The integrated buzzer produces an omnidirectional sound level ranging between 85 dB minimum and 90 dB maximum, suitable for alerting personnel effectively in noisy industrial settings.
Modular twist and lock system for easy LED and buzzer module customization. Multi-colored LEDs with flashing effects for enhanced visibility. Enclosed sound module providing loud, omnidirectional buzzer sound. IP65 rated housing suitable for harsh environments.
Operating temperature from -20°C to 50°C for versatile application. Compact dimensions with 259mm height and 60mm base diameter. Terminal block connection with 3.3m cable length. Energy efficient 24V DC operation with 45mA current consumption.
This Patlite LR6 Series signal tower buzzer is ideal for electrical and automation control, manufacturing facilities, safety systems, and other industrial applications requiring visual and audible signalling. It complies with standards and approvals including EMC (EN 61000-6-4 and EN 61000-6-2), UL 508, RoHS, FCC Part 15 Class A, KC, and CSA-C22.2 No. 14 certifications.
EnvMart offers this state-of-the-art Signal Tower solution for enhancing industrial safety, automation efficiency, and control communication.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 50°C.
This unit has a current consumption of 45mA when operating at 24V DC.
The signal tower has a height of 259mm and a base diameter of 60mm.
It features an enclosed sound module that produces an omnidirectional buzzer sound with a sound level ranging from 85dB to 90dB.
The housing of this model has an IP65 rating, making it suitable for dusty and wet conditions.
It utilizes a terminal block connection with a cable length of 3.3m.
The LED lenses are available in blue, clear, green, white, amber, and red.
The minimum operating temperature is -20°C.
This model is designed for direct mounting.
It complies with several standards including EMC (EN 61000-6-4, EN 61000-6-2), UL 508, RoHS, FCC Part 15 Class A, KC, and CSA-C22.2 No. 14.
This signal tower features a total of 4 light elements.
The light effect produced by this signal tower is flashing.
