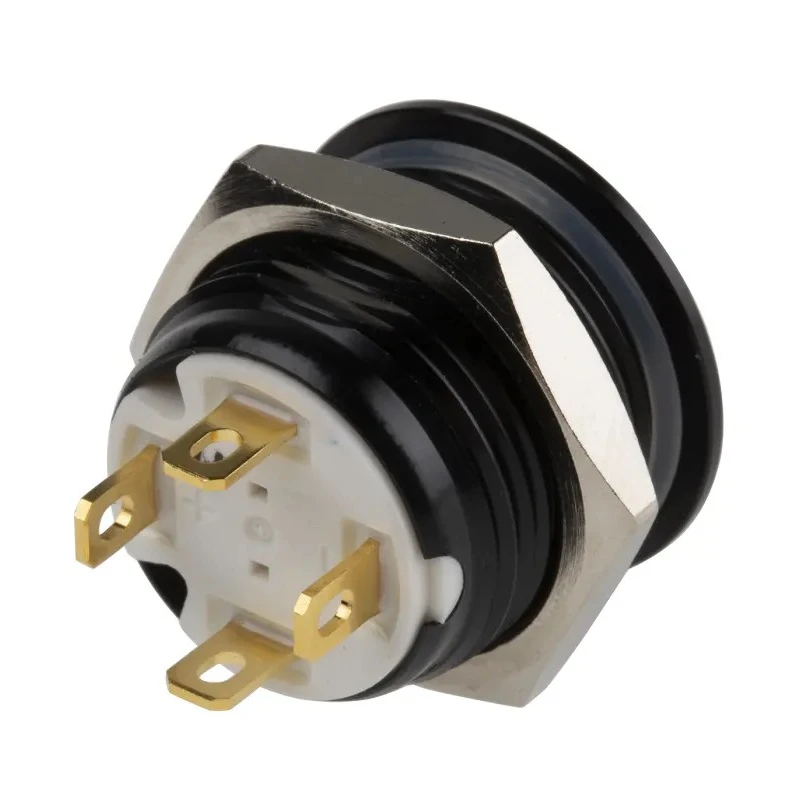

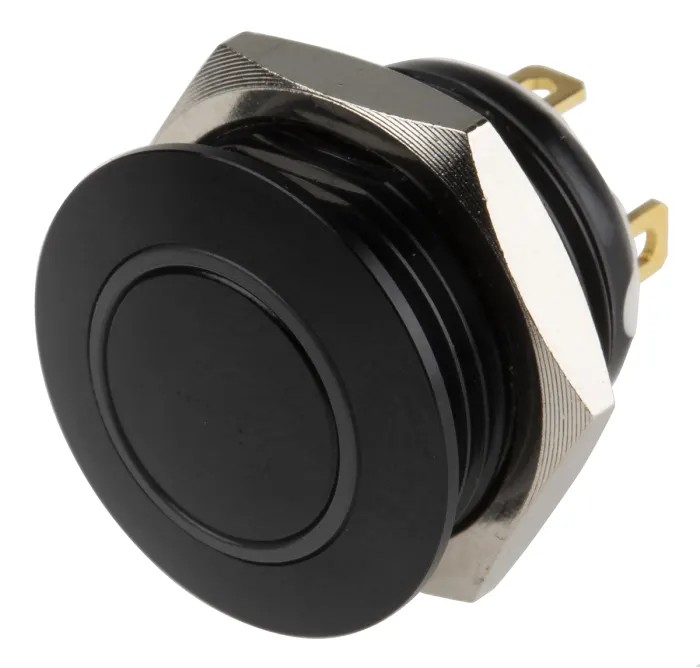

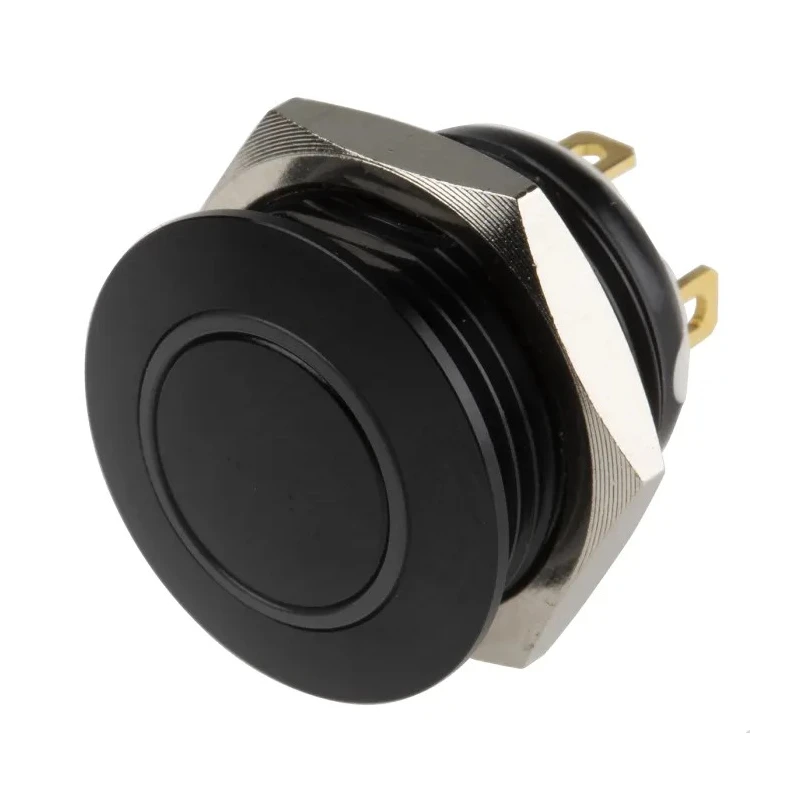

KNITTER-SWITCH MAV Series Illuminated Push Button Switch Momentary Panel Mount SPST White LED IP67 36V dc MAV16CBRE-1-JR-12V
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MAV16CBRE-1-JR-12V |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| LED Colour | White |
| Switch Operation | Momentary |
| Contact DC Voltage | 36V dc |
| Actuator Style | Round |
| Switch Contact Current | 2A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch provides reliable momentary on-off operation for industrial control applications.
- Designed for panel mounting with a 16 mm cutout size, ensuring secure and easy installation.
- Features a white LED illumination with solder lug terminal type for visibility and easy wiring.
- Constructed to withstand an operating temperature range of -20°C to 120°C for harsh environments.
- IP67 rated, providing excellent protection against dust and water ingress.
- Utilizes silver alloy contact material for superior electrical conductivity and durability.
- Suitable for use in conveyor controls, heavy equipment, industrial instruments, and lifts.
- Switch contact current rating of 2A supports moderate electrical loads.
Product Description
The KNITTER-SWITCH MAV16CBRE-1-JR-12V illuminated push button switch offers a momentary, single-pole single-throw (SPST) on-off functionality suitable for numerous industrial automation and control applications. Designed to mount on panels with a 16 mm cutout, it provides reliable tactile feedback through its round actuator style and white LED illumination for operational visibility.
Operating at a contact DC voltage rating of 36 V dc and with an allowable current of 2A, this switch is built with silver alloy contacts ensuring high conductivity and long-lasting performance. Its robust IP67 rating confirms its excellent resistance to dust and water ingress, making it ideal for demanding industrial environments.
The switch supports temperatures from -20°C to 120°C, accommodating a wide range of ambient conditions. The solder lug terminal type facilitates secure and easy wiring connections. This component is certified to meet CSA and UL standards, reflecting stringent safety and quality benchmarks.
Typical applications for this illuminated push button switch include conveyor system controls, heavy-duty machinery, industrial instrumentation panels, and lift control systems. Its reliable momentary operation and panel mount design increase the versatility and ease of integration in control panels.
Momentary on-off SPST switch operation with white LED illumination. Panel mount using a 16 mm cutout with a round actuator style. Silver alloy contacts ensure high reliability and electrical performance. IP67 rated for protection against dust and water ingress.
Wide operating temperature range from -20°C to 120°C. Solder lug terminals for dependable wiring connections. Rated for 2A contact current at 36 V dc. Meets CSA and UL certifications for safety and quality. Ideal for industrial automation, conveyor controls, and lift panels.
Durable and compact design for versatile panel installation.
Choose KNITTER-SWITCH illuminated Push Button Switches for reliable and precise control in industrial automation systems. Explore the Electronics & Electricals category for compatible switches and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this switch is 2A, which supports moderate electrical loads.
It operates within a temperature range of -20°C to 120°C, making it suitable for various ambient conditions.
This model has an IP67 rating, providing excellent protection against dust and water ingress.
The switch utilizes solder lug terminals, which facilitate secure and easy wiring connections.
It requires a panel cutout size of 16 mm for installation.
The MAV16CBRE-1-JR-12V is certified to meet CSA and UL standards, ensuring safety and quality compliance.
The contact DC voltage rating is 36V dc, and it can also handle an AC voltage of 250V ac.
It provides momentary on-off operation with a single-pole single-throw (SPST) configuration.
The switch features white LED illumination for operational visibility.
This illuminated push button switch is suitable for applications such as conveyor controls, heavy equipment, industrial instruments, and lift control systems.
It has a round actuator style, which provides reliable tactile feedback during operation.
This model is part of the MAV series of illuminated push button switches.
