Dormer M10 Thread Metric Standard Hand Tap Set, HSS, Straight Flute, ISO 529, DIN 352 E100M10NO8

Free Delivery in India | Lowest Global Shipping Charges

Dormer M10 Thread Metric Standard Hand Tap Set, HSS, Straight Flute, ISO 529, DIN 352 E100M10NO8

Name: Dormer M10 Thread Metric Standard Hand Tap Set, HSS, Straight Flute, ISO 529, DIN 352 E100M10NO8
Brand: Dormer
SKU: 95423
Price: 79.25 USD
Availability: InStock



Category Threading Tap Set Brand Dormer Condition New

Specifications

Country of Origin	Brazil
Brand	Dormer
Material	HSS
Model	E100M10NO8
Standard	DIN 352
Overall Length	70mm
Thread Size	M10
Sub Type	Straight Flute
Shank Diameter	7mm
Number of Pieces	3
Pitch	1.5mm
Standards/Approvals	ISO 529
Thread Standard	Metric
Thread Direction	Right Hand
Hand/Machine Tap	Hand Tap
Straight Flute Taps	most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool
Spiral Point Taps	suitable for threading through holes. They push chips through holes ahead of the tool
Spiral Flute Taps	intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole
Forming Taps	produce a thread by pressing the material rather than cutting and no chips are created

Key Features

Set contains taper, intermediate, and finishing tap bits for precise thread creation.
Suitable for metric M10 thread size with 1.5mm pitch.
Complies with ISO 529 and DIN 352 standards for quality assurance.
Ideal for tapping in blind or through-holes in metals and plastics.
Right hand thread direction designed to tighten clockwise.
Overall tap length of 70mm with 7mm shank diameter.
Provides durable performance with high corrosion resistance due to HSS material.
Used in engineering and manufacturing for creating internal threads.

Product Description

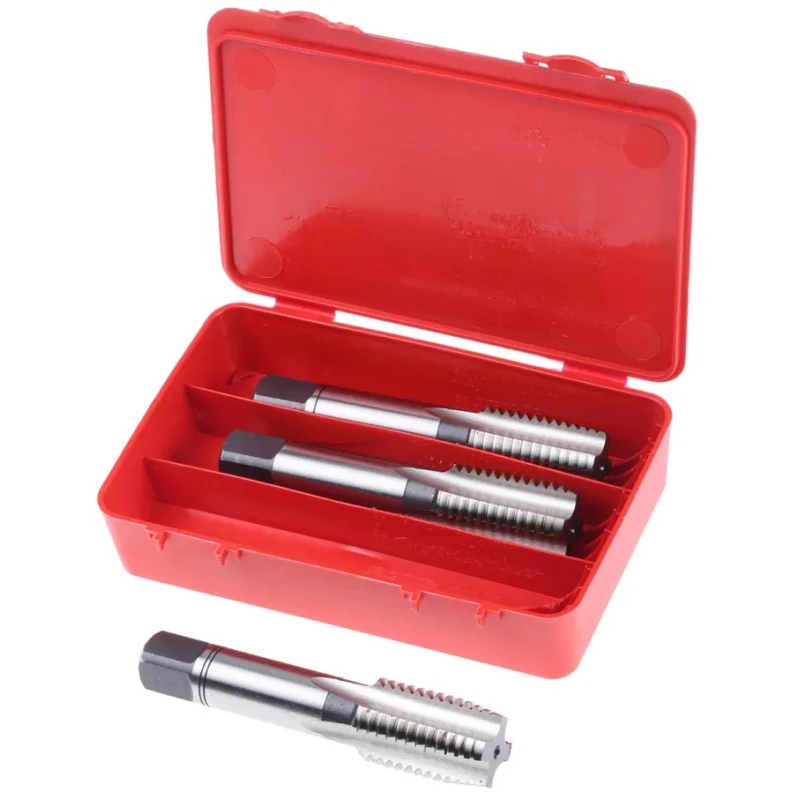

Dormer E100M10NO8 M10 Thread Metric Standard Hand Tap Set includes three high-speed steel (HSS) taps ideal for precise internal threading applications. This set features taper, intermediate, and finishing taps with straight flutes, optimized for right-hand threading in metric M10 size with 1.5mm pitch.

These taps conform to ISO 529 and DIN 352 standards, ensuring quality and durability. The tap bits are constructed from HSS material which provides excellent heat resistance and corrosion durability, suitable for metals and plastics. The overall length of each tap is 70mm with a shank diameter of 7mm.

The set contains a taper tap bit with 5 threads in the initial pitch, an intermediate with 3.5 threads, and a finishing tap with 2 threads in the initial pitch, allowing for a progressive and accurate threading process. The cutting angle is 10°, with a tolerance class of 6H, enabling high precision in thread formation.

These hand taps are specifically designed for manual use, making them ideal for engineering and manufacturing applications where threaded holes are required. Taps and dies are essential tools in creating screw threads; taps form the internal threads (nuts), while dies form external threads (bolts).

Set contains taper, intermediate, and finishing tap bits for precise thread creation. Suitable for metric M10 thread size with 1.5mm pitch. Complies with ISO 529 and DIN 352 standards for quality assurance. Ideal for tapping in blind or through-holes in metals and plastics.

Right hand thread direction designed to tighten clockwise. Overall tap length of 70mm with 7mm shank diameter. Provides durable performance with high corrosion resistance due to HSS material. Used in engineering and manufacturing for creating internal threads.

Tap bit tolerance class of 6H and cutting angle of 10° ensure accurate threading.

This Dormer M10 Thread Hand Tap Set is a reliable choice for users needing high-quality threading taps for mechanical, fabrication, and fluid power tool applications. Discover this and other precision threading tools in EnvMart’s Industrial Tools & Equipment catalog.

Explore more products in our Threading Tap Set category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This tap set is designed for a metric M10 thread size with a pitch of 1.5mm.

It complies with ISO 529 and DIN 352 standards, ensuring quality assurance in its construction.

Each tap has an overall length of 70mm and a shank diameter of 7mm.

The taps are made from high-speed steel (HSS), which provides excellent heat resistance and corrosion durability.

The set includes three pieces: a taper tap, an intermediate tap, and a finishing tap.

The taps have a cutting angle of 10° and a tolerance class of 6H, which enables high precision in thread formation.

These taps are designed for right-hand threading, which tightens clockwise.

They are suitable for tapping in metals and plastics, making them versatile for various applications.

The taps in this set are classified as straight flute taps, which are commonly used for blind or through-hole thread production.

This tap set is used in engineering and manufacturing for creating internal threads in various materials.

The set includes a taper tap with 5 threads, an intermediate tap with 3.5 threads, and a finishing tap with 2 threads, allowing for a progressive threading process.
