Metal Bellow Seals MB66L Series
Specifications
| Pressure | 25 Bar (kg/cm 2) |
|---|---|
| Temperature | -20 C to 400 C |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 4000 RPM According to Shaft Size & Pressure. |
| Hardware | AISI 316 SS 304 Carpenter-42 |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon-M Silicon Carbide Tungsten Carbide. |
| Secondary Seal | Grafoil |
| Welded bellow | AM 350 |
Key Features
- Easy to install
- easy to remove
- Firm grip
Product Description

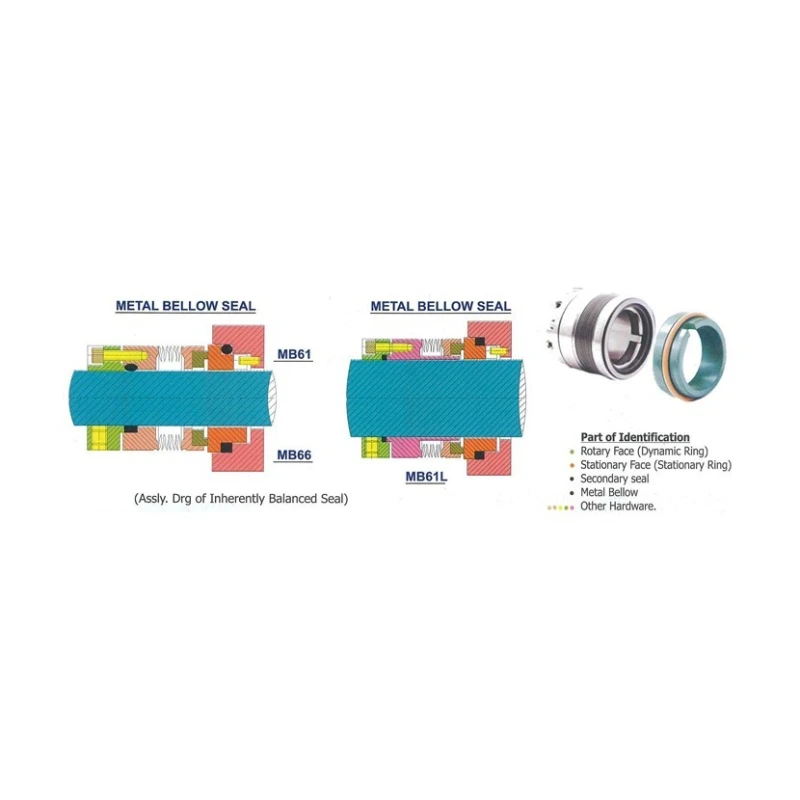

Metal Bellow Seals MB66L Series - a specialist metal bellow seals manufacturer and supplier in India. Metal bellow seals are best for high-temperature applications.Being one of the top most manufacturer, suppliers, and exporters of various types of mechanical seals, we provide the metal bellow seal made of high-quality raw material.We have specially designed and fabricated the MB61 and MB66 series of welded metal bellow seals, for moderate temperature/pressure and high temperature/moderate pressure. The metal bellow seals are proven ideal for high temperature and high corrosive application. These bellow seals are fabricated by welding a series of diaphragms together at the edges to form a bellows unit.The metal bellows seals are used in place of the spring and provide flexibility to the seal. The seal is available as a rubber o-ring and grafoil to use at extremely high temperatures.Application Petrochemical Chemical Refinery Thermic FluidSeal Characteristics Independent of Direction of Rotation Single Acting Welded Metal Bellows Inherently Balanced
- Low maintenance
- Sturdy construction
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can operate within a temperature range of -20°C to 400°C.
The Metal Bellow Seals MB66L Series is rated for a maximum pressure of 25 Bar (kg/cm²).
The maximum shaft speed is up to 4000 RPM, depending on the shaft size and pressure.
The dynamic and stationary rings are made from materials such as Carbon-M, Silicon Carbide, and Tungsten Carbide.
The secondary seal is made of Grafoil, suitable for high-temperature applications.
The welded bellows are fabricated using AM 350 material, providing flexibility to the seal.
These seals are ideal for applications in petrochemical, chemical, refinery, and thermic fluid processes.
The hardware is constructed from AISI 316 SS, 304, and Carpenter-42 materials.
Yes, the Metal Bellow Seals MB66L Series are proven ideal for high-temperature and highly corrosive applications.
The seals are independent of the direction of rotation and are single acting with a welded metal bellow design.
This model is designed for low maintenance, enhancing its usability in various applications.
