Single Spring Balance Unbalance Seal U76 Series
Specifications
| Pressure | Unbalance 10 Bar (kg/cm 2) & Balance upto 35 bar (kg/cm 2) |
|---|---|
| Temperature | -60 C to 260 C |
| Shaft Diameter | 12 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS 316 SS 304 Hast - C Monel Alloy -20. |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid. |
| (Secondary Seal) | GFT PTFE FEP Grafoil |
Key Features
- High Durability
- High performance
Product Description

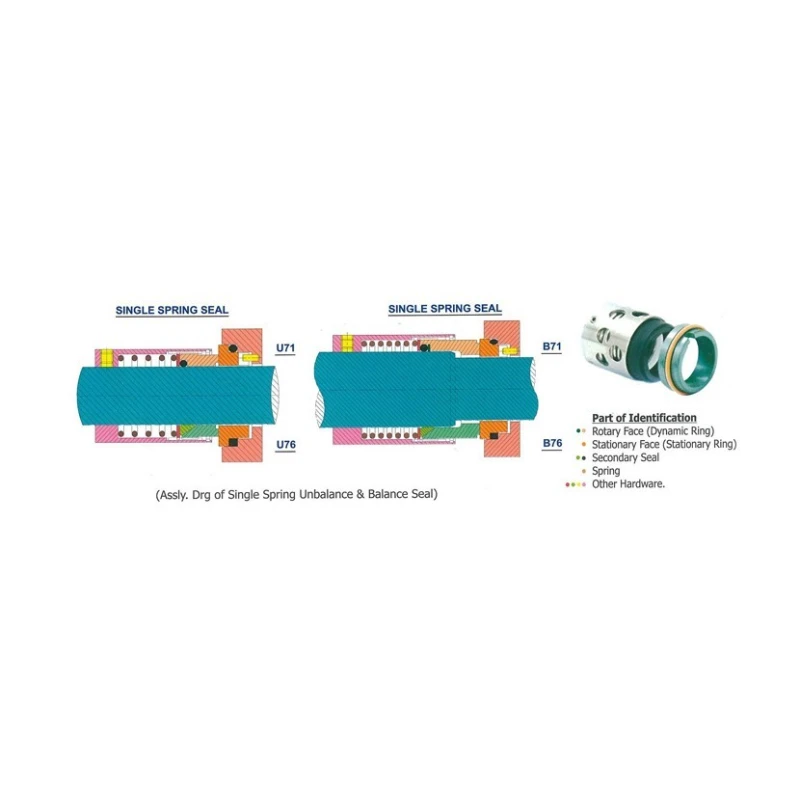

U76 Series of Seals are Single Helical Coil Spring Seals Developed for Dirty Media & Clogging type applications. Torque Transmission from Retainer Shell to Dynamic Ring is done through Drive Lugs. All components are held together by a Snap Ring which helps in Easier Installation & Removal. As all Parts are Interchangeable one can convert series U76 by changing only the Dynamic Ring and the Secondary Seal. This Principle is ideal for Stock Rationalisation.Seal CharacteristicsInside MountedSingle ActingUnbalanced & BalancedIndependent Of the Direction Of RotationApplication Light Hydrocarbon, Dirty, Media. Petrochemicals Petroleum Refinery General Chemicals
