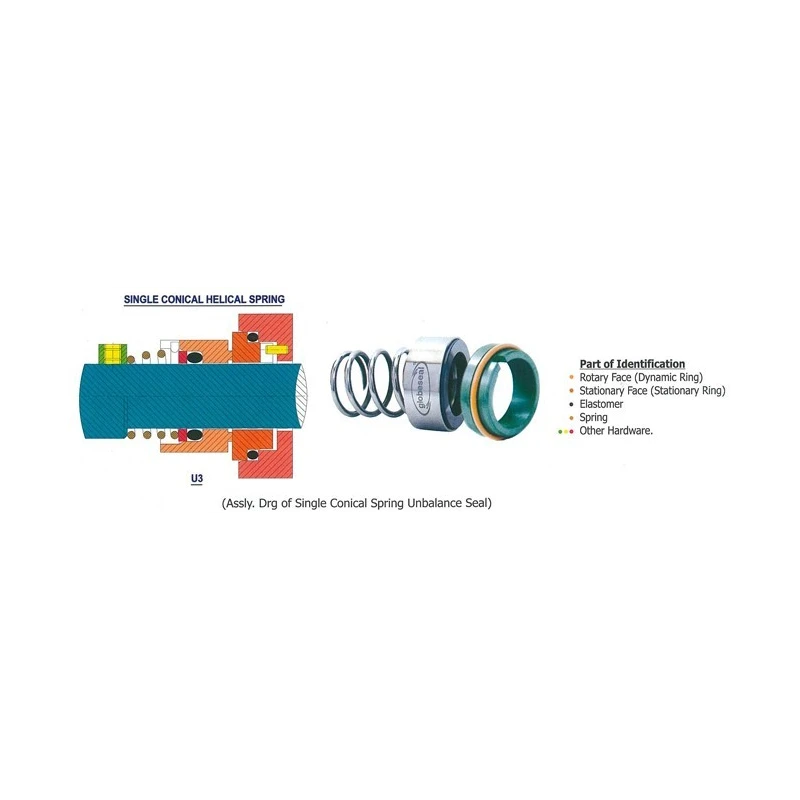

Conical single spring unbalance seals
Specifications
| Pressure | 10 Bar (kg/cm 2) |
|---|---|
| Temperature | -60 C to 180 C |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According to Shaft Size & Pressure |
| Hardware | SS 316 SS 304 Hast - C Monel Alloy -20. |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel & Which Are Suitable For Fluid. |
| Elastomer | (Secondary Seal) Viton EPDM Silicon Aflas PTFE GFT & Grafoil Kalrez FEP TCV |
Key Features
- High Durability
- High performance
Product Description
The seal contains the secondary seal, the o ring. The face materials and elastomers can be varied as per the requirement of the application. The conical helical springs transmit the torque. The seals depend on the direction of the rotation. The conical helical spring can be fitted easily by pushing on the shaft and twisting as the spring winding. So, the spring diameter enlarges easily to make it easy to fit. One can judge the direction of the rotation from the drive end of the shaft.The clockwise rotating shaft requires a right-handed spring and the anti-clockwise rotating shaft requires a left-handed spring.The conical single spring unbalanced seals are used in the central heating systems in circulation pumps. Its also used in chemical process pumps, sewage and submersible pumps, and chemical process pumps.Seal Characteristics Inside Mounted Single Acting unbalanced Dependent On the Direction Of RotationApplication Circulation Pumps For Central Heating. Water Pumps Sewage & Submersible Pumps Chemical Process Pumps
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The seals have a pressure rating of 10 Bar (kg/cm²).
They can operate within a temperature range of -60°C to 180°C.
The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.
The face materials can include carbon ceramic, silicon carbide, tungsten carbide, and chrome cast steel, suitable for fluid applications.
The springs can be fitted easily by pushing on the shaft and twisting, allowing the spring diameter to enlarge for easier fitting.
These seals are designed as inside mounted, single acting unbalanced seals that depend on the direction of rotation.
The direction of rotation determines the type of spring required; a clockwise rotating shaft needs a right-handed spring, while an anti-clockwise shaft requires a left-handed spring.
The hardware materials include SS 316, SS 304, Hast-C, and Monel Alloy -20.
