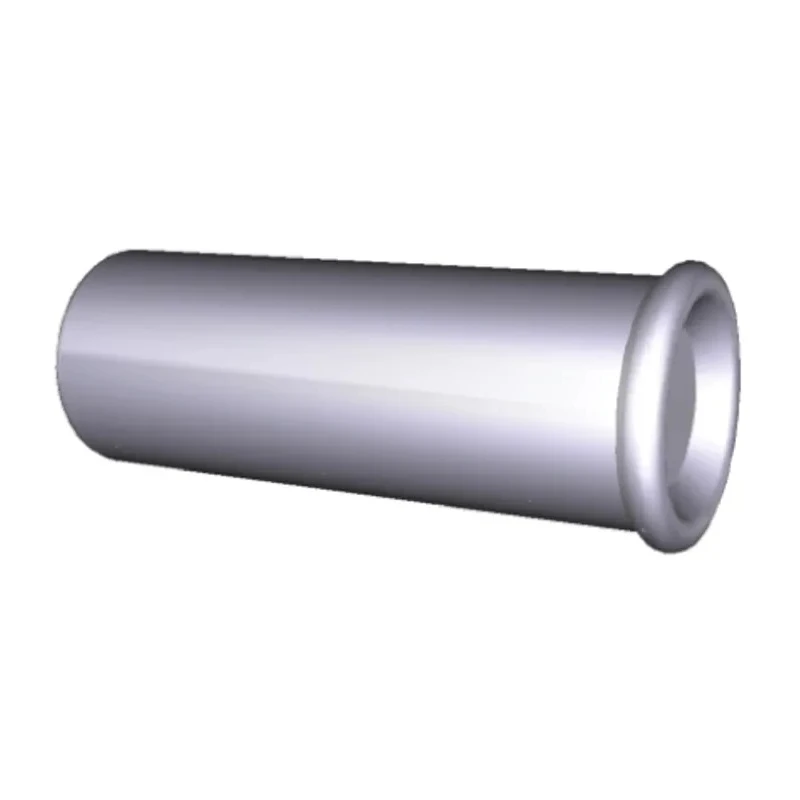

TE Connectivity Mini-Spring PCB Socket Female, 7.5A Current, 19-25 AWG Wire Size, Straight Orientation, Gold Plated 380598-1

TE Connectivity offers the 380598-1 Mini-Spring PCB Socket, a high-quality electronic component engineered for secure and efficient wire connections on printed circuit boards. This female socket is tailored to accommodate wire sizes ranging from 19 AWG to 25 AWG, handling currents up to 7.5 amps reliably in low-voltage electronic applications.

The socket utilizes a beryllium copper alloy for contacts, providing excellent electrical conductivity and mechanical strength. Gold plating on these contacts ensures optimal corrosion resistance, maintaining signal integrity and long service life in demanding environments.

The straight orientation of the socket allows for easy and predictable placement on PCBs, making it suitable for a diverse range of industrial electronic assemblies, including power connectors and discrete socket installations.

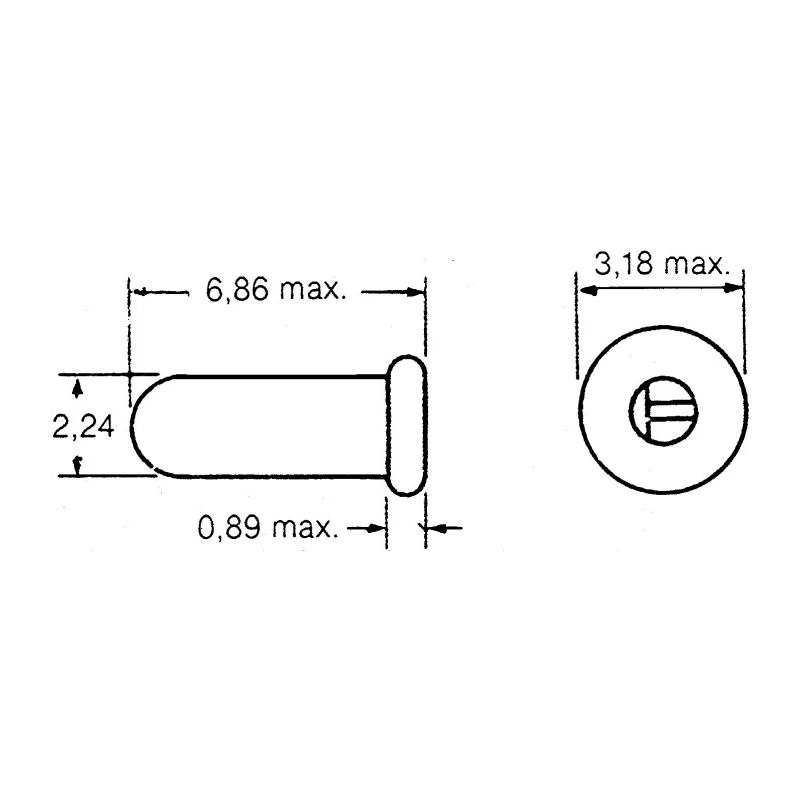

Measuring 6.65 mm in length, the component is compact yet robust, ideal for applications where space savings are critical. The termination type is solder, enabling secure and permanent connections, enhancing the overall durability of the electronic device.

This product does not carry specific standards or approvals but aligns with TE Connectivity's rigorous manufacturing standards to ensure product consistency and reliability in industrial and commercial electronics settings.

Rated current capacity of 7.5A supports a wide range of PCB power applications. Beryllium copper alloy contacts deliver superior conductivity and strength. Gold plated contacts improve corrosion resistance and device longevity.

Designed with straight orientation for efficient PCB integration. Compact 6.65 mm length saves PCB space without compromising durability. Compatible with solder termination methods for firm, lasting connections. Female gender socket enables reliable connections with male connectors.

Part of the Mini-Spring series, ensuring quality and consistent specifications.

This TE Connectivity Mini-Spring PCB Socket is appropriate for use in electronics manufacturing, power connection modules, and general PCB hardware applications across industrial, commercial, and research sectors. It forms an integral part of high-quality connector assemblies, enabling efficient and dependable electrical interconnections.
