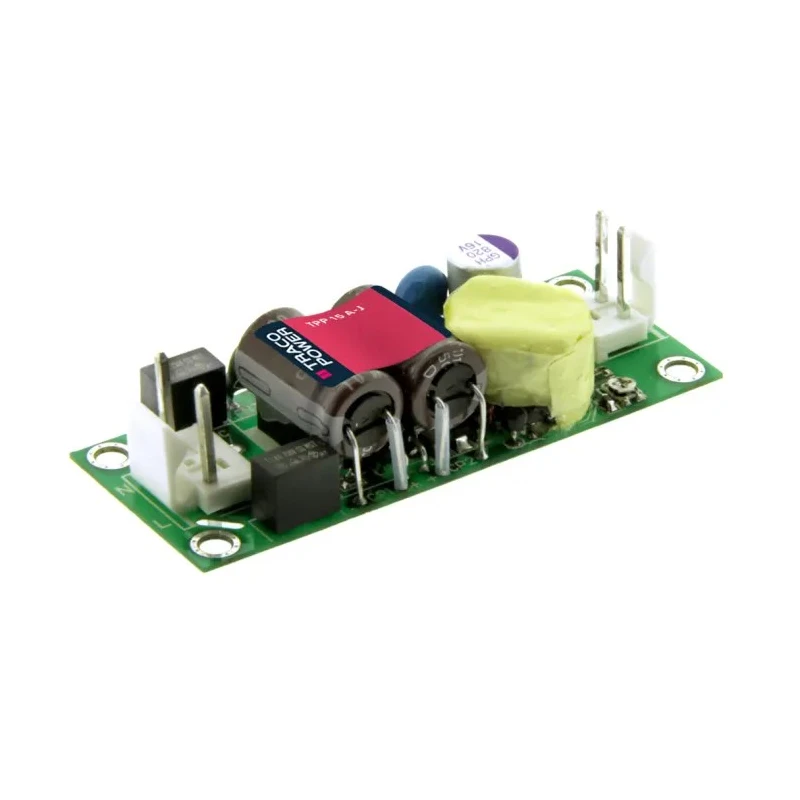

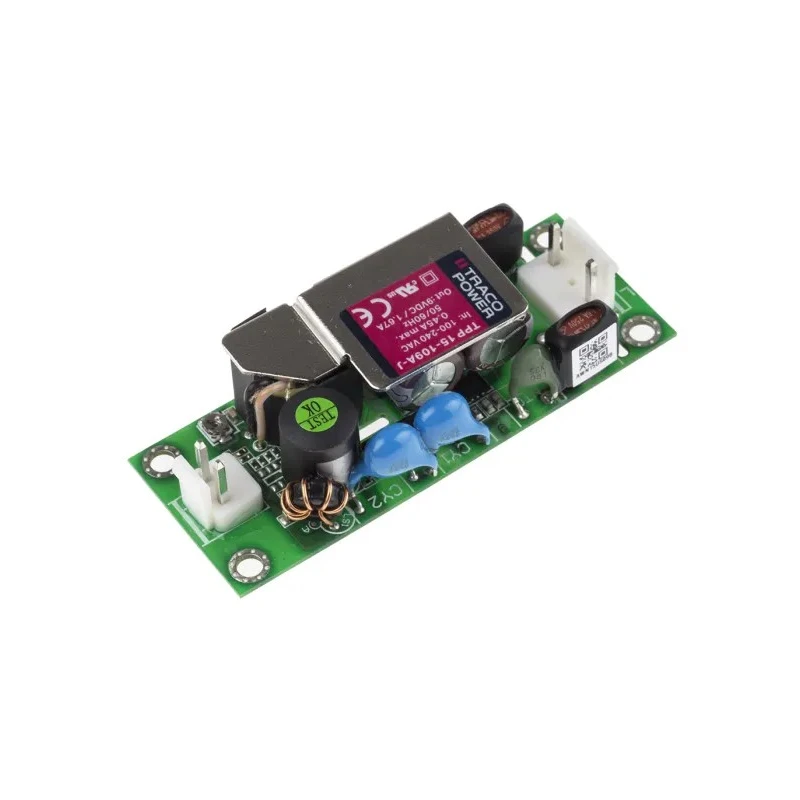

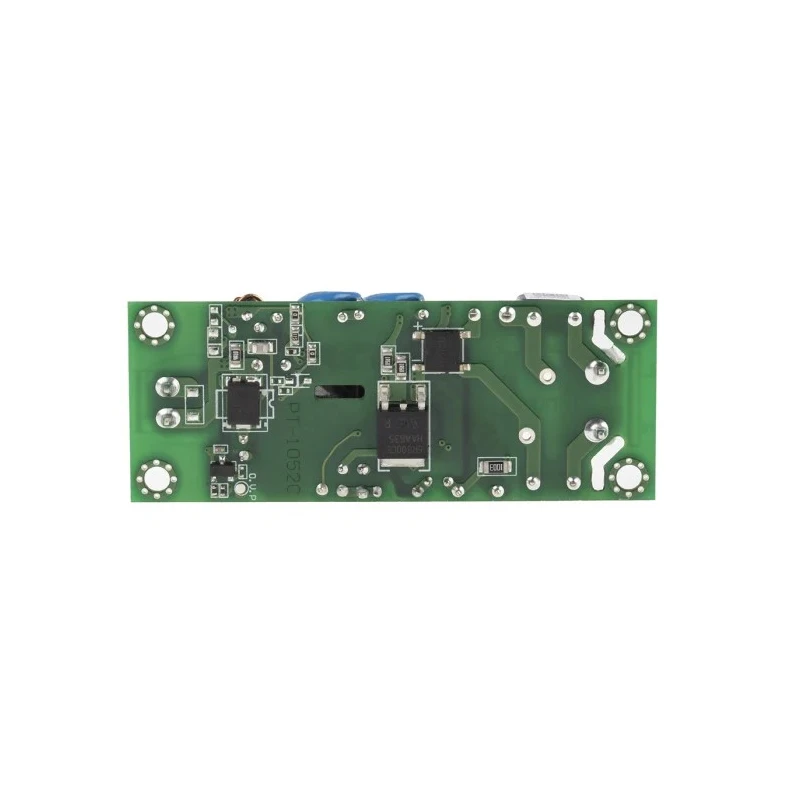

TRACOPOWER Switching Power Supply 9V 15W 1.67A Chassis Mount Medical Grade TPP 15-109A-J
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 15W |
| Efficiency | 86% |
| Length | 66.2mm |
| Model | TPP 15-109A-J |
| Depth | 15.7mm |
| Gross Weight | 19g |
| Width | 25.4mm |
| Mount Type | Chassis |
| Series | TPP 15A-J |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 9V |
| SMPS Output Current | 1.67A |
| Minimum Input Voltage | 85V ac |
| Energy Efficiency Level | III |
Key Features
- Certified medical-grade power supply compliant with IEC/EN/ES 60601-1 3rd edition standards.
- Reinforced double I/O isolation providing 2 x MOPP protection and low earth leakage current below 75μA.
- Wide operating temperature range from -40°C to 85°C suitable for demanding environments.
- High efficiency up to 86%, ensuring minimal energy loss and heat generation.
- Compact design with dimensions 66.2 x 25.4 x 15.7 mm and lightweight 19 g chassis mount format.
- Supports input voltage range from 85V AC to 264V AC with maximum output voltage 9V DC.
- Ideal for BF (body floating) applications and use in medical, industrial, and laboratory power systems.
- Energy efficiency level III compliant to reduce power consumption and environmental impact.
Product Description
TRACOPOWER TPP 15-109A-J Switching Power Supply is a specialized 15W medical-grade power supply designed for safe and efficient power conversion with a 9V DC output and 1.67A current capability. The unit features reinforced double input-output isolation, meeting stringent IEC/EN/ES 60601-1 3rd edition standards, providing 2 x MOPP (Means of Patient Protection), essential for medical and BF (body floating) applications. It maintains a low earth leakage current below 75 μA, ideal for sensitive medical environments.
With a compact chassis mount design measuring 66.2 mm in length, 25.4 mm in width, and 15.7 mm in depth, this lightweight 19 g power supply is suited for space-constrained installations. It operates efficiently across a wide temperature range from -40°C to 85°C, ensuring reliable performance in diverse industrial, medical laboratory, and manufacturing settings.
This power supply supports a broad AC input voltage range of 85 to 264V AC, allowing flexible deployment in international environments. Its outstanding energy efficiency of 86% minimizes heat generation and reduces operational costs. The product also carries multiple international safety and performance approvals including EN 62368-1, UL 62368-1, IEC 62368-1, IEC 60601-1, EN 60601-1, and ANSI/AAMI ES 60601-1, ensuring compliance and trustworthiness in critical applications.
Certified medical-grade Switching Power Supply with IEC/EN/ES 60601-1 3rd edition compliance. Reinforced isolation with 2 x MOPP and low earth leakage suitable for BF applications. High efficiency (86%) and energy efficiency level III for eco-friendly power use.
Compact chassis mount form factor with lightweight 19 g design. Wide input voltage range: 85 - 264V AC; output: 9V, 1.67A, 15W. Operating temperature from -40°C to 85°C for industrial and medical robustness. Multiple international safety certifications for assured quality and reliability.
Ideal for industrial, laboratory, medical, manufacturing, and HVAC power setups.
Choose TRACOPOWER switching power supplies for dependable, efficient, and safe DC power conversion in professional electronic systems. Browse more switching power supplies at EnvMart for compatible technology solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 9V DC.
It has a power rating of 15W.
This power supply has an efficiency rating of up to 86%.
It supports an input voltage range from 85V AC to 264V AC.
The dimensions are 66.2 mm in length, 25.4 mm in width, and 15.7 mm in depth.
It operates within a temperature range of -40°C to 85°C.
This model has a gross weight of 19 grams.
It is designed for chassis mounting.
It is ideal for medical, industrial, and laboratory power systems, particularly for BF applications.
It carries multiple certifications including IEC/EN/ES 60601-1, EN 62368-1, and UL 62368-1.
The output current capability is 1.67A.
It is compliant with Energy Efficiency Level III.
