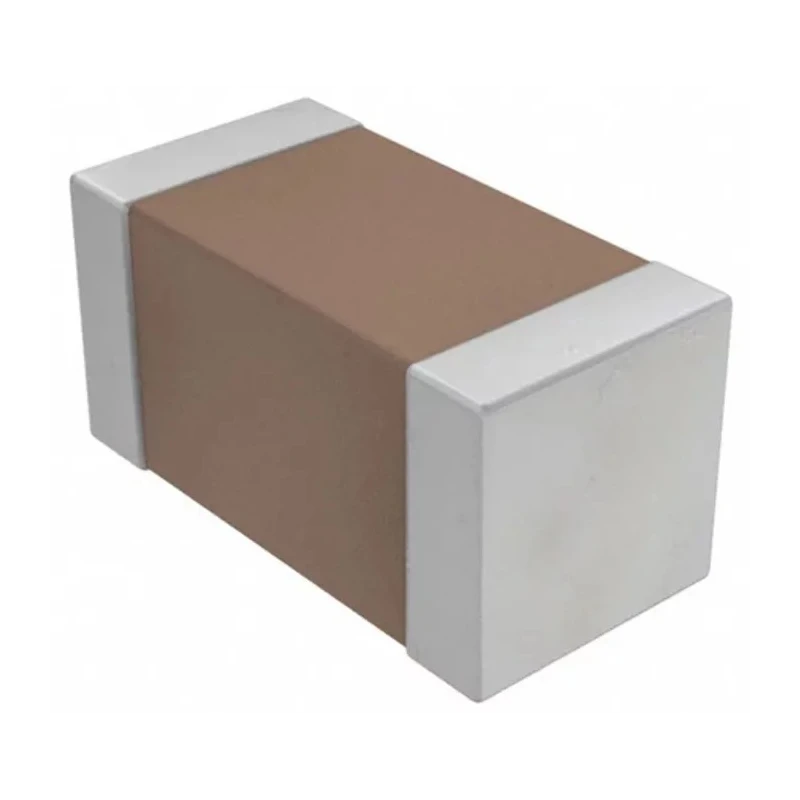

TDK 56 pF 25V dc ±5 % Multilayer Ceramic Capacitor Surface Mount 0603 CGA1A2C0G1E560J030BA

Free Delivery in India | Lowest Global Shipping Charges

TDK 56 pF 25V dc ±5 % Multilayer Ceramic Capacitor Surface Mount 0603 CGA1A2C0G1E560J030BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	25V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1E560J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	56pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

This capacitor utilizes multiple thin ceramic layers ensuring high reliability and precision.
It features low ESR and ESL for minimal self-heating and excellent frequency response.
Constructed with solder termination type suitable for automatic mounting.
Rated for operating temperatures from -55°C to 125°C, meeting automotive AEC-Q200 standards.
Compact dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height enable use in space-constrained applications.
Capacitor is ideal for automotive battery line smoothing, sensor modules, engine control units, and infotainment systems.
Also suitable for smart meters, smart grids, solar inverters, AC-DC battery chargers, transportation, and agriculture applications.
Uses Class I suppression (C0G/NP0) providing stable temperature characteristics and low capacitance drift.

Product Description

TDK CGA1A2C0G1E560J030BA is a 56 pF multilayer ceramic capacitor designed for surface mount applications with a maximum DC voltage rating of 25V. Featuring a C0G dielectric with tight ±5 % tolerance, this 0603 size capacitor provides superior reliability and precision for industrial and automotive electronics.

The capacitor construction includes multiple thin ceramic dielectric layers, enhancing capacitance density and minimizing equivalent series resistance (ESR). Its low stray inductance (ESL) and excellent frequency characteristics enable high ripple resistance and stable operation across wide frequency ranges.

Certified to the automotive AEC-Q200 standard, it supports demanding environments with operating temperature spanning -55°C up to 125°C. The nickel barrier termination coated with tin ensures strong solder joint integrity optimized for automatic surface mounting.

Typical industrial and automotive use cases include battery line filtering, sensor interface modules, engine control units, and infotainment subsystems. Further applications extend to smart metering, smart grids integration, solar power inverters, AC-DC chargers, transportation, and agricultural electronics.

This capacitor features Class I suppression characteristics (C0G/NP0), guaranteeing temperature compensation and minimal capacitance change over temperature variations, essential for precision circuitry.

This product is supplied in tape & reel packaging format suitable for modern PCB assembly lines. Its miniature 0603 case size (0.6 mm x 0.3 mm x 0.3 mm) promotes design flexibility in compact devices and densely packed boards.

The highly reliable manufacturing process ensures consistent performance and longevity in harsh operating conditions.

Choose TDK Multilayer Ceramic Capacitors for dependable performance in automotive, industrial, and consumer electronics applications. Browse the Electronics Components category at EnvMart for more high-quality passive components.
