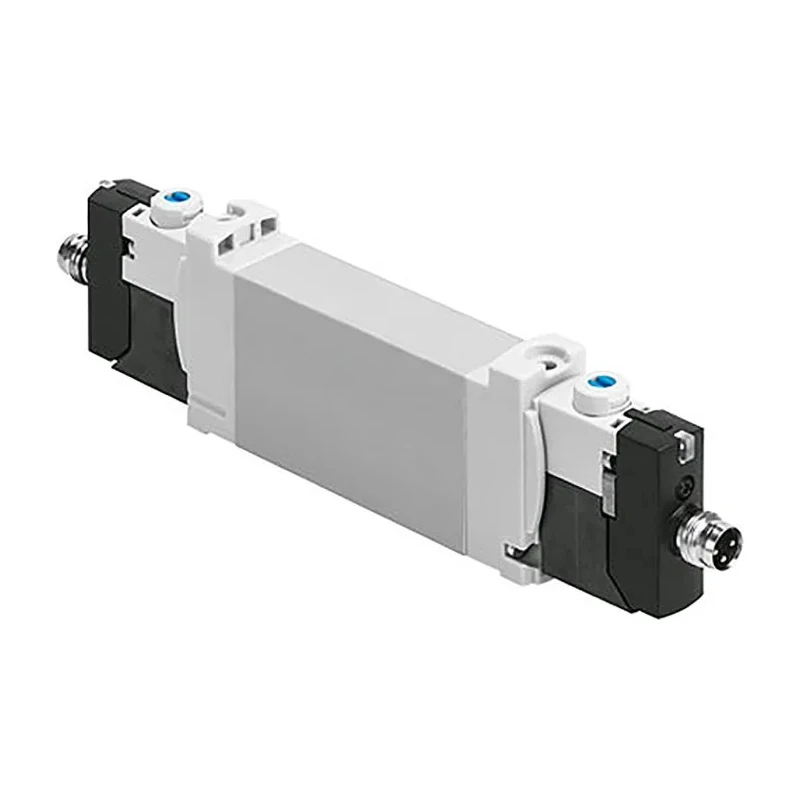

Festo Pneumatic Solenoid Valve 3/2 NC Electric VUVG Series 24V DC Aluminium Alloy Manifold Mount VUVG-BK14-T32C-AT-F-1R8L-S
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 7 bar |
| Height | 1mm |
| Length | 74.3mm |
| Model | VUVG-BK14-T32C-AT-F-1R8L-S |
| Width | 10mm |
| Mount Type | Manifold |
| Series | VUVG |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | M3 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Protection | IP 40/IP 65 |
| Maximum Flow Rate | 350L/min |
| Standards/Approvals | RoHS, cULus, CE |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | 3-Pin Plug |
| Solenoid Type | Single |
| Port Gender | Male |
| Solenoid Power Consumption | 0.7W |
Key Features
- The valve has a compact aluminium alloy body with manifold mounting.
- Operates with a single solenoid and 3 ports designed for male gender connections.
- Supports maximum operating pressure up to 7 bar and maximum flow rate of 350 L/min.
- Features a 3/2 normally closed valve function with 2 positions.
- Electrical connection is through a 3-pin plug for secure connection.
- Seal material is nitrile rubber (NBR), suitable for various pneumatic applications.
- Designed for operating temperatures ranging from -5°C to 50°C.
- Provides protection class IP 40/IP 65 and meets RoHS, cULus, and CE standards.
Product Description
Festo VUVG-BK14-T32C-AT-F-1R8L-S pneumatic solenoid valve is a 3/2 normally closed electric valve operating at 24V DC, ideal for precise pneumatic control in industrial systems.
This valve features a robust aluminium alloy body designed for manifold mounting with three male ports, supporting a maximum operating pressure of 7 bar and a maximum flow rate of 350 L/min. The valve function is 3/2 NC with two positions, allowing effective control of air flow.
The solenoid valve operates efficiently with low power consumption of 0.7W and is equipped with a 3-pin plug electrical connection for reliable interfacing. Sealed with nitrile rubber (NBR), it withstands operating temperatures from -5°C up to 50°C.
Protection classes IP 40 and IP 65 ensure durability against dust and water ingress, while adherence to RoHS, cULus, and CE standards confirm compliance with international safety and environmental regulations.
Compact dimensions - 74.3 mm length, 10 mm width, and 1 mm height - facilitate installation in space-constrained applications. The valve's innovative design supports internal or external pilot air supply, enabling flexible system integration and faster maintenance with easy valve replacement.
Festo pneumatic solenoid valves are widely used in industrial automation, manufacturing, fluid power systems, and pneumatic machinery for precise control, long service life, and high reliability.
The valve has a compact aluminium alloy body with manifold mounting. Operates with a single solenoid and 3 ports designed for male gender connections. Supports maximum operating pressure up to 7 bar and maximum flow rate of 350 L/min.
Features a 3/2 normally closed valve function with 2 positions. Electrical connection is through a 3-pin plug for secure connection. Seal material is nitrile rubber (NBR), suitable for various pneumatic applications. Designed for operating temperatures ranging from -5°C to 50°C.
Provides protection class IP 40/IP 65 and meets RoHS, cULus, and CE standards. Compact length of 74.3 mm, width 10 mm, and height 1 mm facilitate space-saving installation. Equipped with efficient solenoid power consumption at 0.7W for energy savings.
For enhanced pneumatic system performance and reliable operation, the Festo VUVG series valves stand as a smart, efficient choice. Browse EnvMart's extensive catalog for more Festo Pneumatic Solenoid Valves and related industrial valve solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 7 bar.
It supports a maximum flow rate of 350 L/min.
The valve is equipped with a 3-pin plug for secure electrical connection.
It is designed to operate within a temperature range of -5°C to 50°C.
This valve has three ports designed for male gender connections.
The dimensions of the valve are 74.3 mm in length, 10 mm in width, and 1 mm in height.
It features a 3/2 normally closed (NC) valve function with two positions.
The body is made of aluminium alloy, and the seal material is nitrile rubber (NBR).
It provides protection classes IP 40 and IP 65.
This valve meets RoHS, cULus, and CE standards.
The solenoid has a power consumption of 0.7W.
The minimum pilot pressure required for this valve is 1.5 bar.
