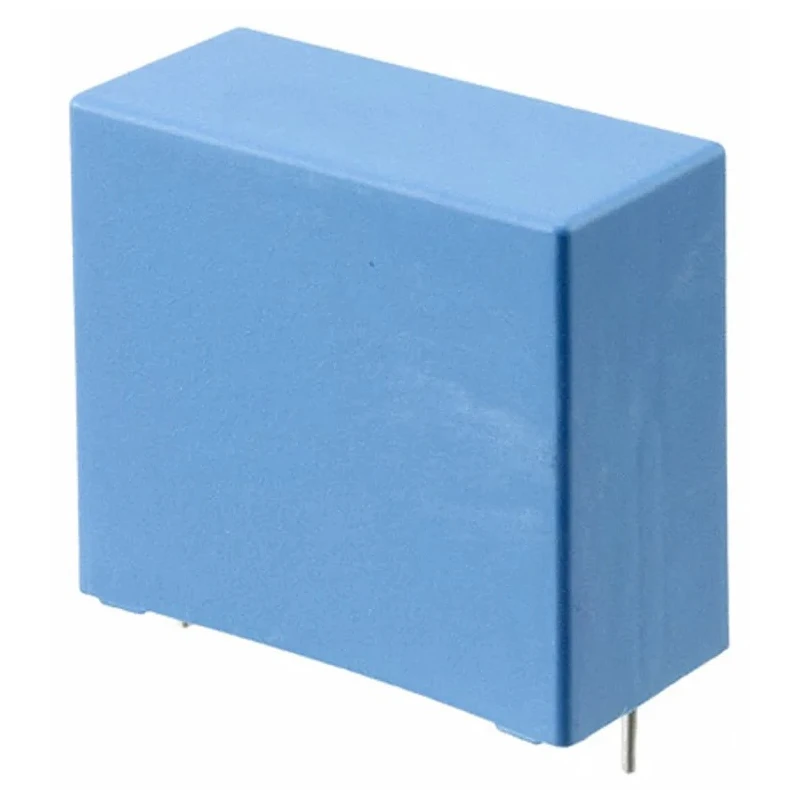

KEMET Metallized Polypropylene Capacitor 33 nF ±5 %, 400 V DC, 180 V AC, Through Hole PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Metallized Polypropylene Capacitor 33 nF ±5 %, 400 V DC, 180 V AC, Through Hole PHE450

Name: KEMET Metallized Polypropylene Capacitor 33 nF ±5 %, 400 V DC, 180 V AC, Through Hole PHE450
Brand: KEMET
SKU: 93836
Price: 0.57 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	10.5mm
Length	18mm
Model	PHE450
Packaging	Tape & Reel
Width	5.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	33nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	17mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	400V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

High-quality metallized polypropylene film capacitor for pulse and snubber applications.
Rated for DC voltage up to 400 V and AC voltage up to 180 V.
Tolerance of capacitance ±5 % ensures precise performance.
Through hole mounting with radial terminal type and 2 pins for secure PCB assembly.
Operating temperature range from -55°C to 105°C for reliable use in harsh environments.
Lead pitch is 15 mm with lead length of 17 mm and lead diameter of 0.8 mm.
Encapsulated in a self-extinguishing resin casing meeting UL 94 V-0 standards.
Low dissipation factor of 0.0003 % for minimal energy loss during operation.

Product Description

KEMET PHE450 Metallized Polypropylene Capacitor model PHE450 is a precision passive electronic component rated for 33 nF capacitance with ±5 % tolerance. Designed for through hole mounting, it provides reliable performance in electronic circuits requiring pulse and snubber protection.

This capacitor supports a rated DC voltage of 400 V and AC voltage rating of 180 V with a dissipation factor of only 0.0003 %, making it highly efficient for switch mode power supplies, television deflection circuits, and other applications involving high current stress.

The capacitor features a radial terminal type with 2 pins, a lead pitch of 15 mm, lead length of 17 mm, and lead diameter of 0.8 mm. Its compact dimensions are 18 mm in length, 5.5 mm in width, and 10.5 mm in height, enabling integration in space-constrained electronic assemblies.

The PHE450 series is encapsulated in a self-extinguishing resin that meets UL 94 V-0 safety standards, ensuring superior flame retardance. It operates reliably over a temperature range from -55°C minimum to 105°C maximum, making it suited for industrial, laboratory, and consumer electronics environments.

High capacitance stability with ±5 % tolerance. Rated for both AC and DC voltages suitable for demanding applications. Radial through-hole mounting for robust PCB installation. Encapsulated in fire-retardant material conforming to UL 94 V-0.

Low dissipation factor reduces power losses in circuits. Suitable for pulse, snubber, and power supply filtering circuits. Meets RoHS environmental compliance standards.

This polypropylene capacitor is ideal for electronic components assemblies in power supply distributors, industrial electronic manufacturing, commercial and residential electronics repair, as well as research institutions requiring high-quality passive components.

Explore more KEMET capacitors and related electronic components in the EnvMart catalog for your next project or production line enhancement.
