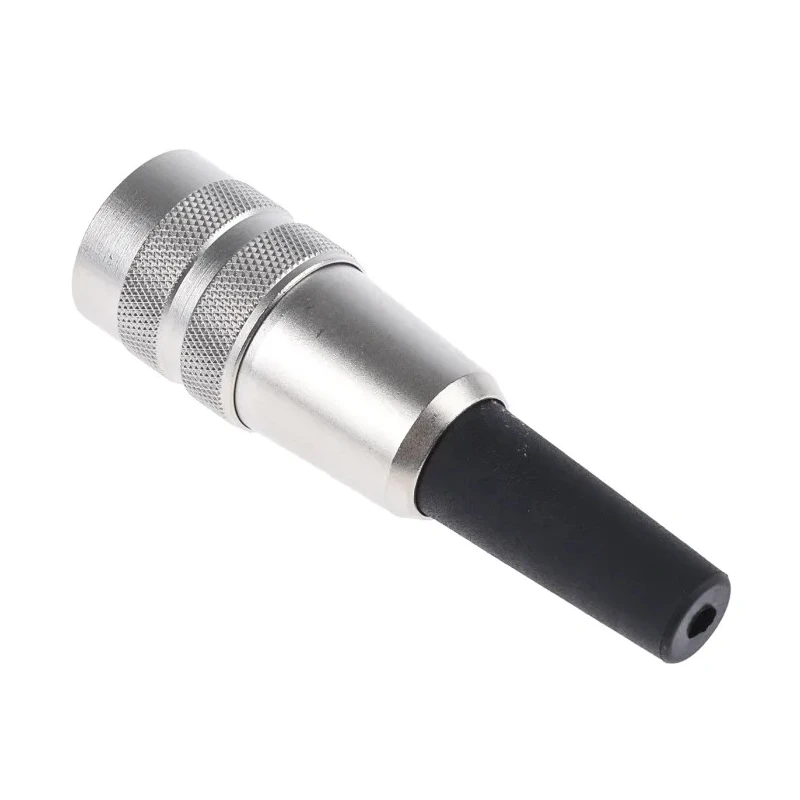

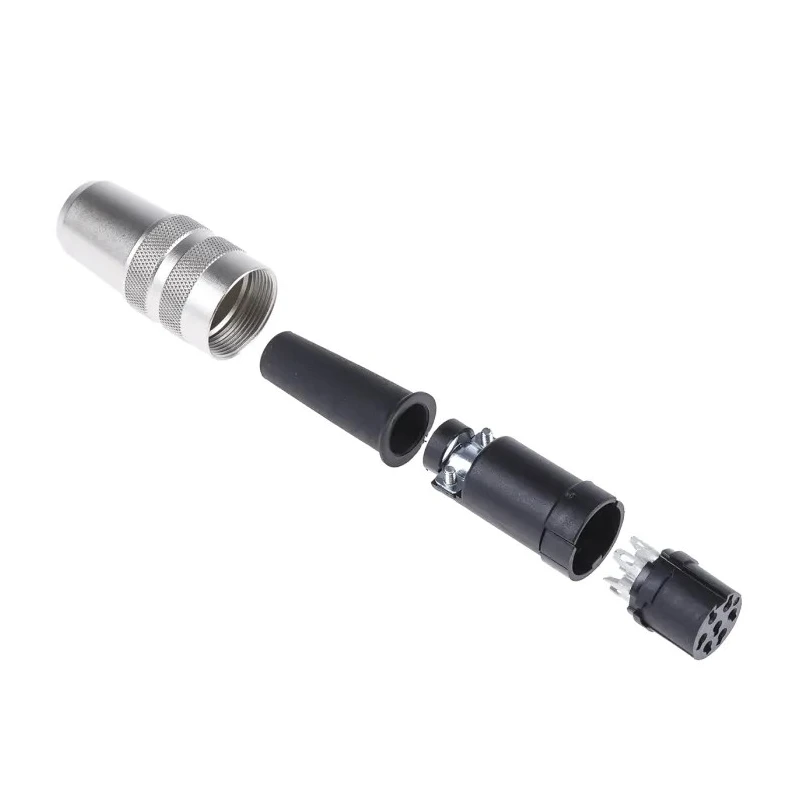

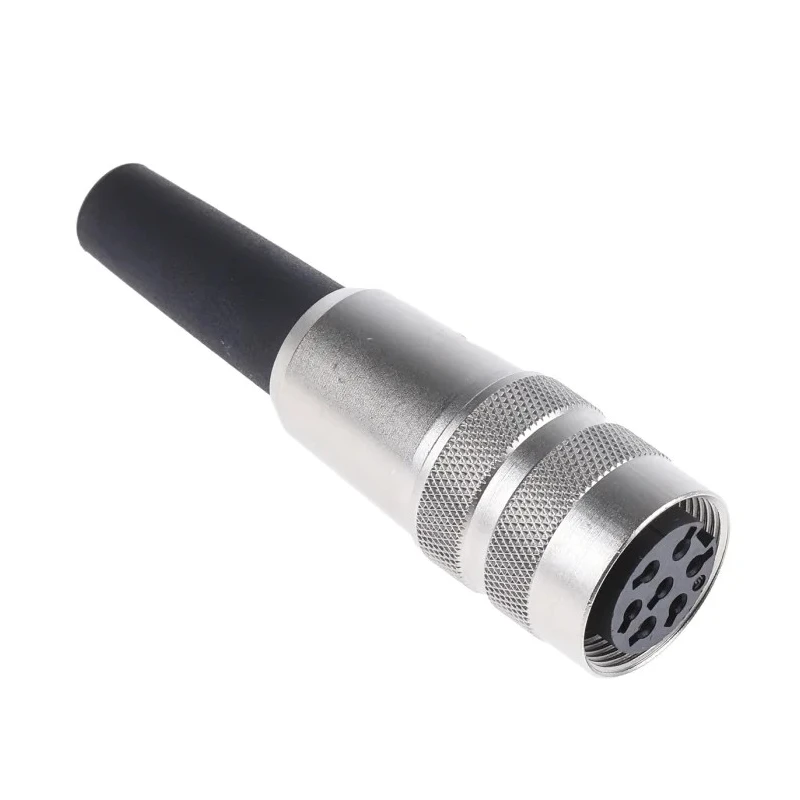

binder M16 Circular Connector, 7 Contacts, Female Socket, Cable Mount, IP40, Polyamide Housing, Straight 09-0326-00-07
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125.0V |
| Brand | binder |
| Orientation | Straight |
| Current | 5A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Features a compact, miniature M16 form factor for space-constrained applications.
- Includes 7 silver-plated bronze contacts ensuring reliable conductivity.
- Female socket design with straight orientation and cable mount for versatile installation.
- IP40 ingress protection suitable for indoor environments not exposed to dust or moisture.
- Robust polyamide housing with internal bend protection sleeve for cable stability.
- Supports a current rating up to 5A and voltage up to 125V.
- Solder termination allows quick and easy assembly.
- Operating temperature range from -40°C to +85°C expands its usability.
Product Description
binder 09-0326-00-07 M16 Circular Connector is engineered for demanding industrial and electronic applications, featuring a durable polyamide housing and 7 silver-plated bronze contacts. Designed for cable mounting with a female socket and straight orientation, this connector ensures dependable performance and ease of installation.
The compact M16 size makes it ideal for equipment where space is limited, such as process control systems, industrial instrumentation, and automation panels. The robust polyamide shell provides mechanical strength and internal bend protection, resulting in enhanced cable retention and stability.
IP40 ingress protection ensures suitability for protected indoor settings, though not intended for harsh or wet environments. Solder termination design allows for efficient assembly and reliable signal transmission. Operational over a temperature range from -40°C to 85°C, this connector maintains functionality in diverse conditions.
Compliance with DIN EN 61076-2-106 guarantees compatibility with other industry-standard DIN connectors. The series 680 brings reliability to industrial automation, electrical equipment, medical devices, plant installations, and machine tool applications.
Each connector contains 7 contacts, rated for 5A current and 125V voltage, providing secure electrical connections for signal or low-power circuits. The socket is female and straight, simplifying cable routing and panel layouts.
The silver-plated contact finish maximizes conductivity, while the bronze contact material offers longevity and durability. Housing material is polyamide to withstand usage stresses.
Typical use cases: industrial process control, instrumentation, assembly line equipment, medical system cabling, and factory automation wiring. Miniature M16 size, 7 contacts for multi-signal connectivity. Robust polyamide housing with bend protection sleeve.
Straight female socket for cable mount, solder termination. Compliant with international DIN standards for industrial performance. Operational from -40°C to 85°C, 5A current, 125V rating. For more industrial connectors, browse EnvMart's category of Circular Connectors and binder brand solutions.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of up to 5A and a voltage rating of 125V.
It has an IP40 ingress protection rating, making it suitable for indoor environments not exposed to dust or moisture.
The operating temperature range for this connector is from -40°C to 85°C.
This model features 7 contacts, which are silver-plated bronze for reliable conductivity.
It utilizes solder termination, allowing for quick and easy assembly.
The housing is made of polyamide, providing mechanical strength and stability.
This connector has a straight orientation and is designed for cable mounting.
Yes, it complies with DIN EN 61076-2-106, ensuring compatibility with other industry-standard DIN connectors.
The shell size of this connector is 18.5 mm, which is part of its compact M16 design.
It is suitable for industrial process control, instrumentation, assembly line equipment, medical system cabling, and factory automation wiring.
The contacts are made of bronze and are silver-plated to maximize conductivity.
This connector is manufactured in Germany.
