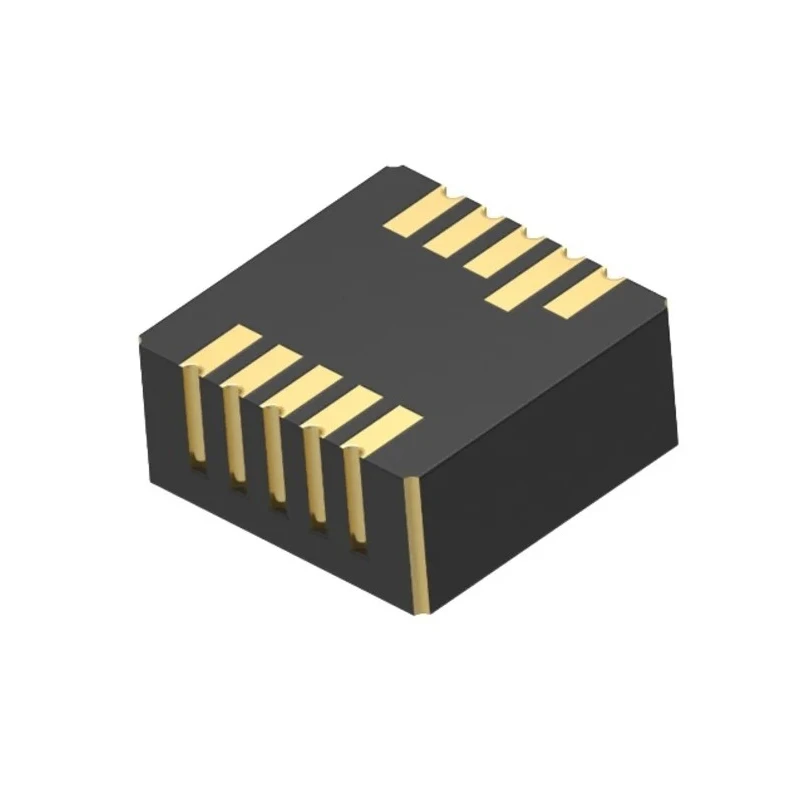

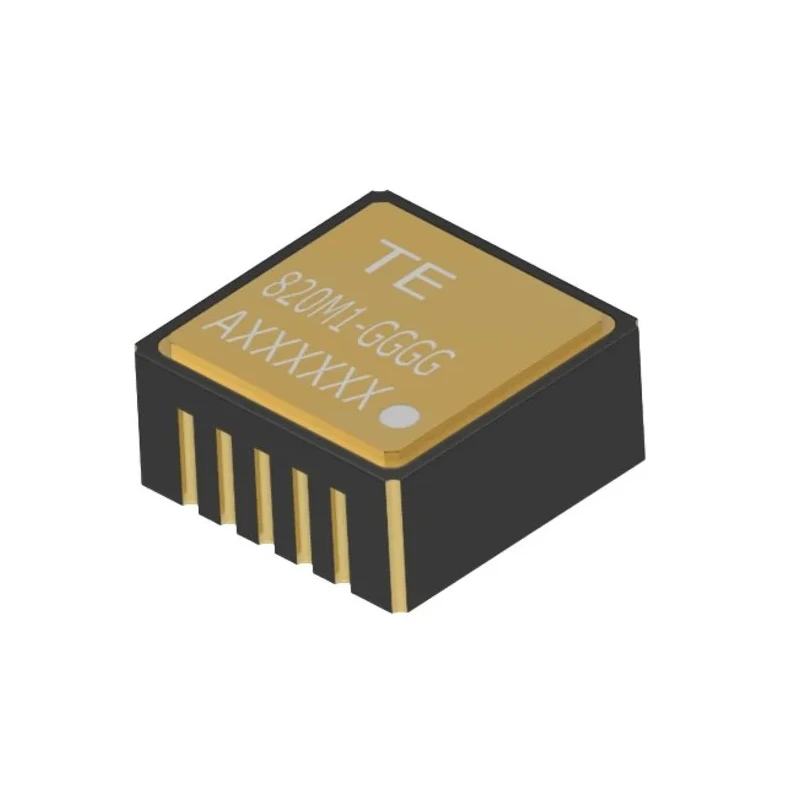

TE Connectivity 1 Axis Surface Mount Accelerometer Analogue 2.8 - 5.5V LCC 10-Pin 20005836-01
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 4.2mm |
| Length | 8.89mm |
| SENSITIVITY | 50mV/g |
| Technology | Digital |
| Sensor Type | Accelerometer |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | LCC |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | Analogue |
| Standards/Approvals | RoHS |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.8V |
| Supply Current | 62μA |
| Maximum Frequency Response | 10000Hz |
| Minimum Frequency Response | 2Hz |
Key Features
- Single axis surface mount accelerometer for precise motion detection.
- Operates with an analogue interface and offers sensitivity of 50 mV/g.
- Wide supply voltage range from 2.8 V to 5.5 V.
- Compact LCC package with 10 pins for easy PCB integration.
- Extensive frequency response from 2 Hz to 10,000 Hz.
- Low typical supply current consumption of 62 μA.
- Operating temperature from -40°C to 125°C for harsh environments.
Product Description
TE Connectivity 20005836-01 1 Axis Analogue Surface Accelerometer is designed for robust and accurate motion sensing applications. This component is presented in a Low-Profile Leadless Chip Carrier (LCC) with a 10-pin package, making it easy to mount on printed circuit boards. It provides an analogue output and a sensitivity of 50 mV/g, making it suitable for condition monitoring and preventive maintenance solutions.
The sensor operates over a voltage range of 2.8 V to 5.5 V, supporting flexibility for various power supply requirements. Its broad frequency response from 2 Hz up to 10,000 Hz allows detection of a wide range of motion signals, linking both high- and low-frequency measurement needs. With a minimal current supply of 62 μA (typical), the device is optimized for low-power embedded applications.
Single axis motion detection for applications requiring precise acceleration monitoring. Surface mount LCC-10 package provides compact integration for circuit designs. Supports analogue interface for compatibility with standard measurement systems.
Wide operating temperature range (-40°C to 125°C) allows use in harsh environmental conditions. RoHS compliant, designed for industrial and electronics industry standards. Suitable for predictive maintenance, condition monitoring, and embedded system development.
Ideal for laboratory, industrial, automotive, and manufacturing applications where reliability is critical.
This accelerometer is especially useful in sectors such as industrial automation, motion control, predictive maintenance solutions, and research and development environments. Its small footprint and long-term output stability ensure minimal PCB space usage and consistent performance over time.
TE Connectivity's 20005836-01 accelerometer is an excellent choice for engineers and system integrators looking for best-in-class single-axis acceleration measurement solutions. Browse more Sensor ICs and industrial motion sensor products from TE Connectivity and leading manufacturers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a supply voltage range from 2.8 V to 5.5 V, providing flexibility for various power supply requirements.
The sensitivity of this model is 50 mV/g, making it suitable for precise motion detection applications.
It features an extensive frequency response from 2 Hz to 10,000 Hz, allowing it to detect a wide range of motion signals.
This model uses an analogue interface, which is compatible with standard measurement systems.
The accelerometer is housed in a compact LCC package with dimensions of 8.89 mm in length and 4.2 mm in height.
It has a typical supply current consumption of 62 μA, optimized for low-power embedded applications.
This model is designed for single-axis motion detection, focusing on precise acceleration monitoring.
The package features a pin count of 10, facilitating easy integration onto printed circuit boards.
Yes, it is RoHS compliant, adhering to industrial and electronics industry standards.
This model uses a surface mount type, which allows for compact integration in circuit designs.
