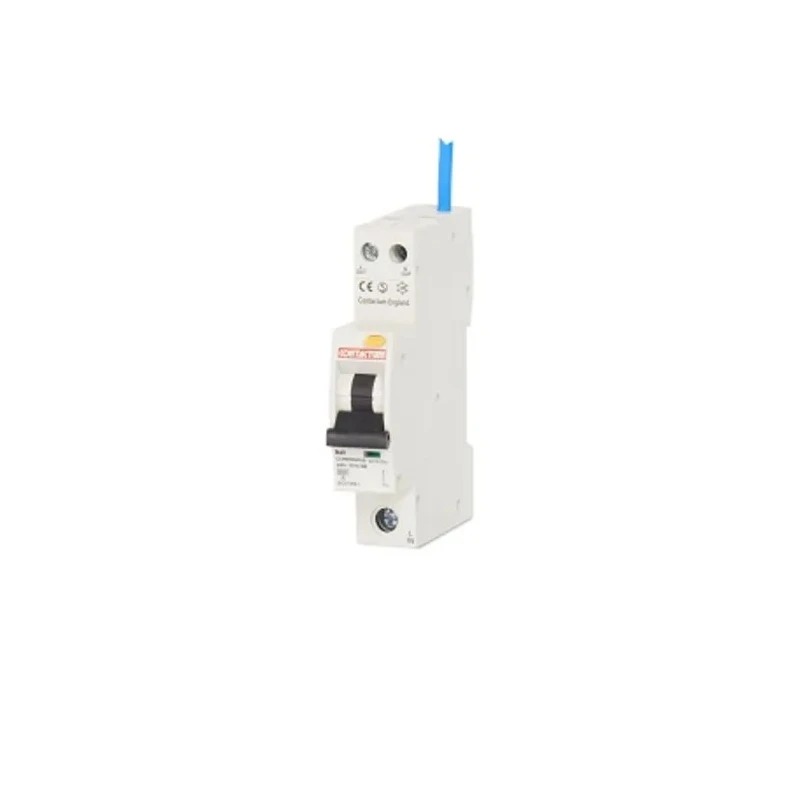

Contactum Residual Current Circuit Breaker with Overload Protection, 40A, 1-Pole, 30mA Sensitivity, Compact DIN CCPBR0640AB
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 50-60Hz |
| Range | CCPBR |
| Brand | Contactum |
| Colour | White |
| Height | 90mm |
| Model | CCPBR0640AB |
| Depth | 75mm |
| Width | 19mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | Compact |
| Ambient Operating Temperature | -5 to 40°C (24hour average not exceeding 25°C) |
| Terminal type | Screw |
| Rated Voltage | 220-250V |
| Breaking Capacity | 6kA |
| Wiring System | 1 pole |
| Mounting Method | DIN Rail |
| Number of Poles | 1 |
| Standards/Approvals | CE, IEC, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
| ABC indicator | A |
| Associated standards | BS EN 61009 |
| Rated kA | 6 |
| Width in number of modular spacing's | 1 |
| Nature of supply | AC |
| Release characteristic | B |
Key Features
- 40A current rating suitable for demanding circuit protection needs.
- Single-pole configuration with DIN rail mounting for easy installation.
- 30mA trip sensitivity provides enhanced safety against earth leakage.
- Type B thermal-magnetic tripping mechanism ensures accurate operation.
- Compact design saves space in distribution panels.
- White colour with lever reset actuator for quick service.
- Approved to CE, IEC, RoHS standards for reliable operation.
- Rated AC operating voltage from 220V to 250V, frequency 50-60Hz.
Product Description
Contactum CCPBR0640AB Residual Current Circuit Breaker with Overload Protection combines reliable performance and enhanced safety for electrical systems. Featuring a 40A current rating and single-pole design, this compact RCBO provides precise earth leakage protection with a 30mA trip sensitivity. Built for easy DIN rail mounting, it is ideal for integration in industrial, commercial, and residential panels.
40A current rating tailored for robust protection of circuits. Single-pole structure optimizes panel space and circuit management. Compact build saves installation space and suits distribution boards. Thermal-magnetic tripping mechanism delivers accurate overload and leakage detection.
30mA trip sensitivity supports enhanced human and equipment safety. Type B tripping characteristics accommodate a wide range of applications. Approved to CE, IEC, and RoHS for global standards compliance.
The CCPBR0640AB is part of the CCPBR range and has a breaking capacity of 6kA, making it suitable for circuits exposed to high short-circuit currents. Rated voltage spans 220 - 250V AC with a frequency of 50 - 60Hz, ensuring compatibility with most standard electrical networks worldwide. The earth leakage protection type is 'A' for efficient performance.
Designed with screw terminal connectors, this RCBO offers secure wire fixing and a lever actuator for easy reset. The ambient operating temperature range lies between -5°C and 40°C (average max 25°C), so the unit remains reliable across various environments.
Its white colour and compact size (90mm height, 75mm depth, 19mm width) fit neatly into modular panels, and mounting via DIN rail streamlines installation and servicing. Application areas include industrial manufacturing, commercial buildings, laboratories, and general-purpose electrical protection scenarios.
Suitable for industrial, laboratory, and commercial sectors. General-purpose circuit protection for electrical distribution boards. Effective for applications where compact size and safety compliance are critical. Explore more RCBOs and residual current devices from Contactum and other brands in the Circuit Breakers & Fuse category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A, making it suitable for demanding circuit protection needs.
The trip sensitivity of this unit is 30mA, providing enhanced safety against earth leakage.
The dimensions of this model are 90mm in height, 75mm in depth, and 19mm in width.
It has a breaking capacity of 6kA, suitable for circuits exposed to high short-circuit currents.
This circuit breaker is designed for DIN rail mounting, which allows for easy installation.
The rated voltage for this unit ranges from 220V to 250V AC.
The ambient operating temperature range is from -5°C to 40°C, with an average maximum of 25°C.
This unit features Type B thermal-magnetic tripping characteristics, accommodating a wide range of applications.
It is approved to CE, IEC, and RoHS standards, ensuring reliable operation.
This circuit breaker offers Type A earth leakage protection for efficient performance.
It features a lever reset actuator for quick and easy service.
It is suitable for industrial, commercial, and laboratory applications, providing general-purpose circuit protection.
