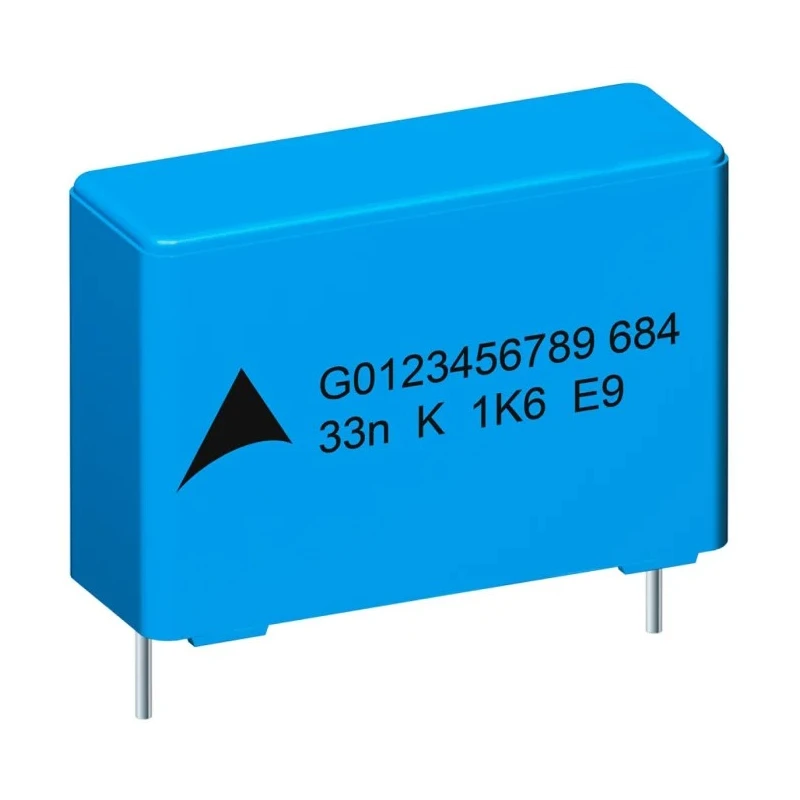

TDK B32642B Film Capacitor, 27nF, 500V AC, 1kV DC, Through Hole, 2 Pin, B32642B0273J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 12mm |
| Length | 18mm |
| Model | B32642B0273J000 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B32642B |
| Maximum Operating Temperature | 110°C |
| Capacitance | 27nF |
| Standards/Approvals | RoHS, UL |
| Pin Count | 2 |
| Rated AC Voltage | 500V ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Compact polypropylene film capacitor for high frequency applications.
- Capacitance of 27nF enables precise filtering and energy storage.
- Rated for 500V AC and 1kV DC for robust voltage handling and safety.
- Through hole mounting with a lead pitch of 15mm for secure PCB insertion.
- Maximum operating temperature of 110°C provides thermal reliability.
- 2-pin configuration ensures straightforward integration into circuits.
- AEC-Q200 automotive standard for enhanced durability and performance.
- RoHS and UL approved for compliance with global standards.
Product Description
TDK B32642B0273J000 Film Capacitor is a reliable electronic component engineered for high frequency and high current stress applications. This product features a wound polypropylene film technology, offering a compact design that is suitable for demanding industrial, automotive, and electronics uses. With a capacitance of 27nF and rated voltages of 500V AC and 1kV DC, this capacitor is designed to provide optimal filtering and energy storage in power supplies, resonant circuits, and switched-mode power supplies.
The B32642B Series is recognized for its high pulse strength and current withstand capability, making it an ideal choice for electronic ballasts, LLC typology in resonant circuits, and high frequency switching. Its through hole mounting with a 15mm lead pitch ensures easy placement and solid mechanical stability on printed circuit boards, improving production efficiency. The maximum operating temperature of 110°C allows for reliable functioning under challenging thermal conditions.
Automotive Standard AEC-Q200 Rev D compliance guarantees robust performance in vehicular environments. RoHS and UL certifications signify adherence to international safety and environmental standards. Dimensions of 18mm length, 12mm height, and 6mm width provide a small footprint for space-constrained applications.
The 2-pin configuration and 0.8mm lead diameter offer straightforward electrical integration and compatibility with standard PCB layouts. EPCOS B32641B-B32642B Series provides additional features including high pulse strength and compact construction.
This film capacitor is widely utilized in industrial automation, manufacturing electronics, automotive electronics, HVAC systems, laboratory equipment, and commercial electronic assemblies. Its design also supports resonant circuits and electronic ballasts operating at high frequencies.
The product comes supplied in a box, ready for insertion into machinery, further improving assembly processes in bulk production scenarios. Explore EnvMart's range of TDK Film Capacitors for precision, reliability, and performance in your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 27nF, which enables precise filtering and energy storage in various applications.
It is rated for 500V AC and 1kV DC, providing robust voltage handling capabilities.
The maximum operating temperature is 110°C, ensuring thermal reliability in demanding conditions.
This capacitor features a through hole mounting type with a lead pitch of 15mm for secure PCB insertion.
The dimensions are 18mm in length, 12mm in height, and 6mm in width, making it compact for space-constrained applications.
It has a 2-pin configuration, which allows for straightforward integration into circuits.
It is RoHS and UL approved, ensuring compliance with global safety and environmental standards.
This model complies with the AEC-Q200 Rev D automotive standard, enhancing its durability and performance in vehicular applications.
The lead diameter is 0.8mm, compatible with standard PCB layouts for easy integration.
It is widely utilized in industrial automation, automotive electronics, HVAC systems, and commercial electronic assemblies, among others.
This capacitor is part of the B32642B series, which is recognized for its high pulse strength and current withstand capability.
The country of origin for this film capacitor is India.
