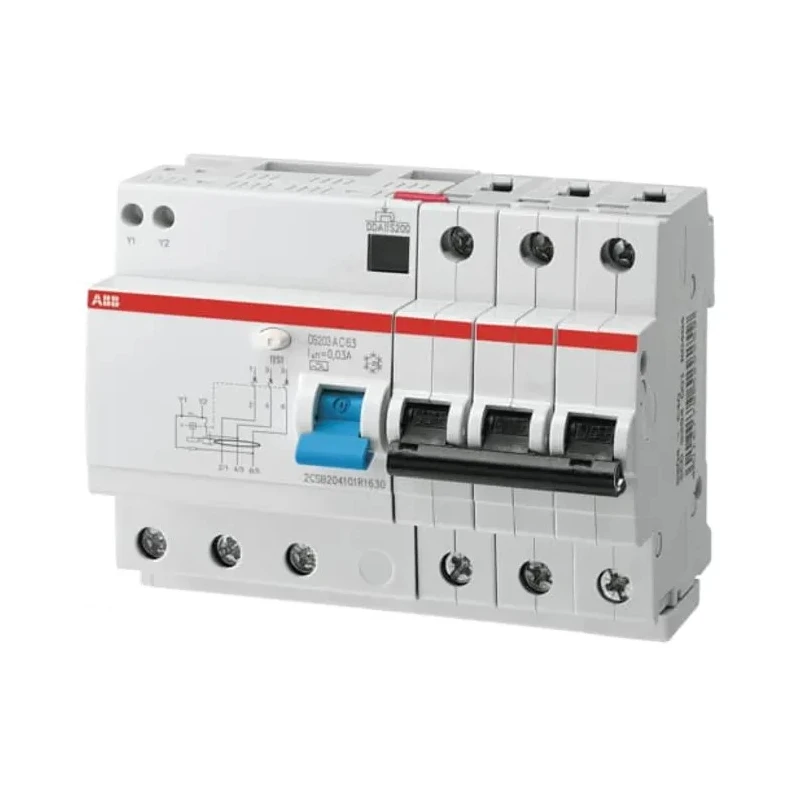

ABB Residual Current Circuit Breaker with Overload Protection, 63A, 3-Pole, 400V AC, Type DS200, 30mA Trip 2CSR253101R1635

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection, 63A, 3-Pole, 400V AC, Type DS200, 30mA Trip 2CSR253101R1635



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	93mm
Model	2CSR253101R1635
Depth	69mm
Width	87mm
Standards	IEC/EN 60947-2
Current Rating	63A
Series	DS200
Ambient air temperature	Operation -25 ... +55 °C
Terminal type	Busbar
Breaking Capacity	10kA
Number of Poles	3
Standards/Approvals	UL/CSA, IEC/EN 61009-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Combines residual current and overload protection in one compact device.
Three-pole design supports multi-phase systems for enhanced safety.
Rated current up to 63A ensures compatibility with high-demand circuits.
30mA trip sensitivity provides reliable earth leakage protection.
High breaking capacity of 10kA for robust fault clearance.
Earth leakage protection conforms to Type A requirements for safe operation.
Type B tripping characteristics suitable for diverse electrical environments.
Quick reset actuator lever enables fast restoration after tripping.

Product Description

ABB's 2CSR253101R1635 Residual Current Circuit Breaker with Overload Protection delivers comprehensive safety for electrical systems by combining overload, short-circuit, and earth fault current protection in a single unit. With a 63A current rating and a three-pole configuration, it is ideal for applications requiring reliable performance across multi-phase supply networks.

Equipped with a 30mA trip sensitivity, the device ensures effective detection and interruption of earth leakage, fulfilling Type A protection classifications to prevent accidental electric shocks. Its robust design features a rated operational voltage of 400V AC and a high breaking capacity of 10kA, safeguarding both residential and commercial environments.

The DS200 series incorporates instantaneous operating characteristics for rapid fault response, while a lever reset actuator allows for convenient manual restoration of the circuit following a trip event. The device is assembled with busbar terminals for easy integration and supports ambient operation from -25°C up to +55°C, suiting varied installation scenarios.

Combines overload and earth fault protection in a single unit for enhanced safety. Rated for 63A and 400V AC, compatible with high-capacity circuits. Three-pole design enables safe multi-phase distribution. 30mA trip sensitivity achieves stringent electrical protection standards.

Busbar terminals simplify wiring and installation procedures. Conforms to UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2 standards, ensuring universal acceptance. Type B tripping characteristic ensures suitability for complex loads.

Compact dimensions (93mm height, 69mm depth, 87mm width) facilitate panel fitting.

Typical applications include residential main distribution boards, commercial facility panels, and other sites requiring advanced fault and leakage protection. The RCBO (Residual Current Circuit Breaker with Overload) helps to prevent electrical fires and protects both equipment and human safety.
