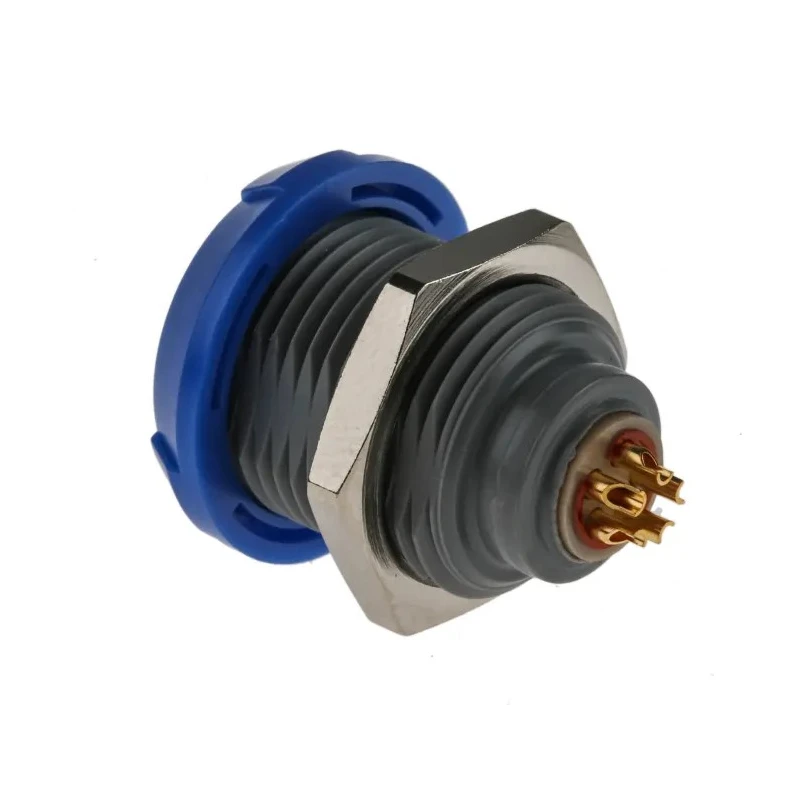

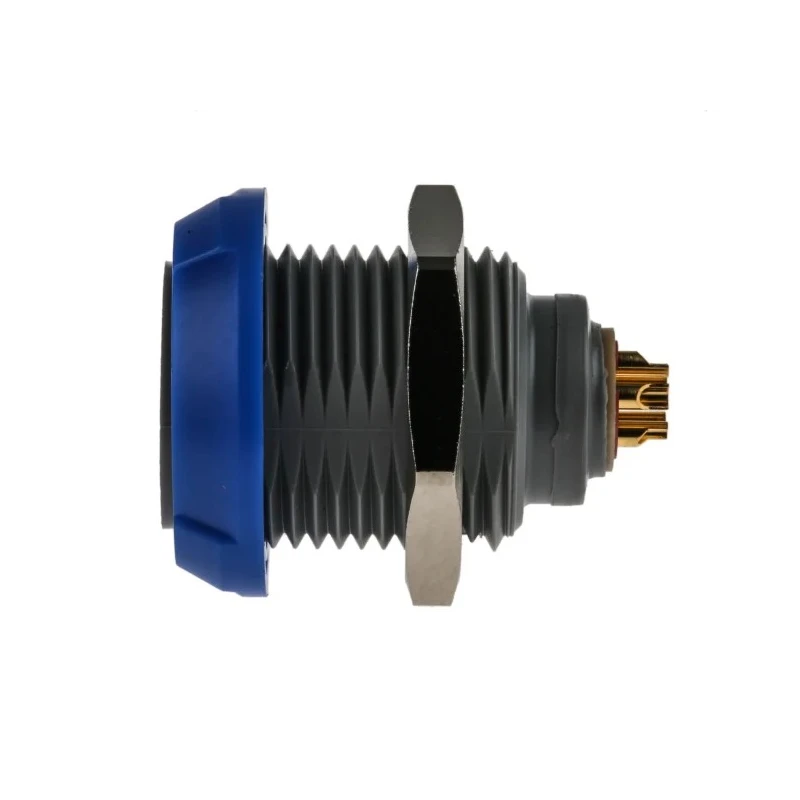

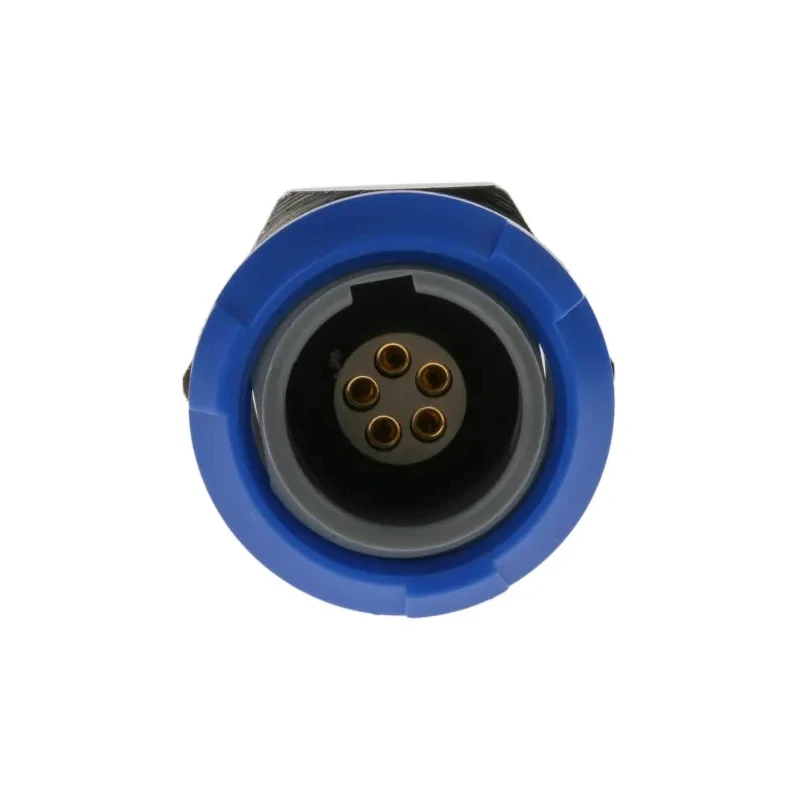

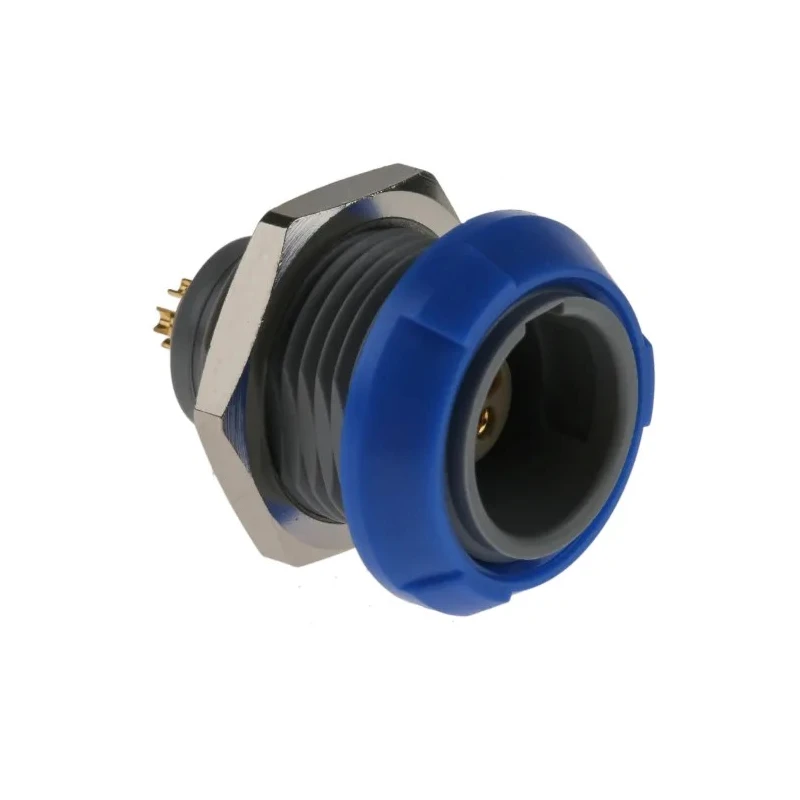

LEMO Redel P Series Circular Connector, 5 Contacts, Panel Mount, Socket, Female, IP50, Straight, 7A, 500V PKG.M0.5GL.LA

LEMO PKG.M0.5GL.LA Circular Connector is designed for demanding industrial and laboratory applications requiring secure, reliable connections. This connector features the Redel P series' precision push-pull self-latching system, providing a highly secure mating for panel-mounted setups.

With 5 gold over nickel plated copper contacts and a female socket configuration, the PKG.M0.5GL.LA supports a current rating up to 7A and voltage of 500V per contact. The connector's straight orientation and keyed mating type ensure correct connection every time, reducing the risk of misalignment and electrical faults.

Constructed from durable grey-colored polysulphone (PSU) housing and PEEK insulation, this connector offers long-term reliability even in environments subject to vibration and shock. The assembly supports solder termination for secure attachment, and its cable acceptance ranges from 1.70mm to 6.50mm, making it versatile for various cable sizes.

This model is IP50 rated, providing effective dust ingress protection, and endures more than 2000 mating cycles, confirming its suitability for repeated industrial usage. The operating temperature range from -50°C to 150°C further underlines its robustness for extreme conditions.

Features a robust push-pull self-latching system for secure connections. Supports a current rating up to 7A and voltage up to 500V per contact. Offers straight body orientation with keyed mating type for precise alignment.

Utilizes gold over nickel plated copper contacts and polymer housing for durability. Endurance exceeds 2000 mating cycles, with high vibration and shock resistance. Housing material is grey polysulphone (PSU) and uses PEEK insulating material.

Supports solder termination and cable acceptance ranges from 1.70mm to 6.50mm. Rated IP50 for protection against dust, suitable for industrial and laboratory use. Operating temperature from -50°C to 150°C ensures reliability in harsh environments.

LEMO Redel P Series Circular Connector is commonly deployed in medical equipment, research instrumentation, test and measurement setups, and other industrial environments where reliable connections and high durability are essential.

This premium connector is part of LEMO's broad range of industrial circular connectors, offering high pin-count density and proven service life for critical application scenarios. Browse more LEMO Redel P Series products and discover a complete range of Industrial Circular Connectors at EnvMart.
