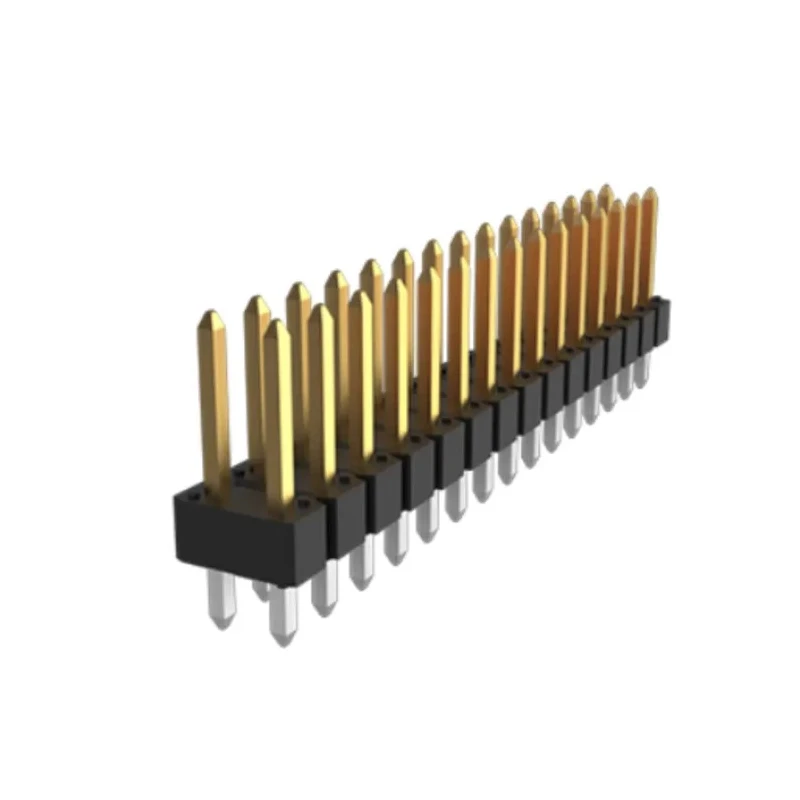

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header 14 Contacts 2.54 mm Pitch 77313-101-14LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 77313-101-14LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL Approval:E66906 |
| Contact Plating | Phosphor Bronze |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.41mm |
| Mating Pin Length | 5.84mm |
| Standards/ApprovalsUL Approval | E66906 |
| UL Approval | E66906 |
Key Features
- This unshrouded pin header features 14 contacts for board-to-board and wire-to-board interconnect solutions.
- 2.54 mm pitch offers standard spacing for versatile PCB layouts.
- Durable thermoplastic housing ensures reliable performance at high temperatures.
- Through hole mount type supports secure and stable mechanical connection.
- Rated for 3A current and 1500V voltage, suitable for demanding electronic applications.
- Male phosphor bronze contacts with solder termination provide robust electrical connectivity.
- Vertical orientation and dual-row structure optimize space and stacking options.
- UL Approval E66906 ensures compliance with industrial quality standards.
Product Description
Amphenol Communications Solutions presents the Bergstik Series Vertical Through Hole Pin Header, model 77313-101-14LF. This advanced connector is engineered for high-performance electronic equipment, offering 14 reliable contact points with a standard 2.54 mm pitch and a convenient 2-row configuration. Designed for board-to-board, wire-to-board, and cable-to-board connections, it caters to versatile PCB layouts and industrial projects.
The housing is constructed from high-temperature thermoplastic material, making it suitable for environments up to 130°C. Its unshrouded design provides flexible access, allowing dual entry from the top or bottom. The through hole mounting ensures robust mechanical stability during installation, ideal for both prototyping and production runs.
Contact elements are made from phosphor bronze and plated for performance, providing a secure and reliable electrical connection. Tail pin length is precisely set at 2.41 mm, with mating pin length at 5.84 mm, ensuring compatibility with standard PCB designs. Solder termination offers a permanent bond for high-vibration or critical applications.
The component is rated for 3A current and 1500V voltage, fulfilling requirements in professional industrial, laboratory, and commercial electronic systems. UL Approval E66906 and European standards compliance signify trusted safety and manufacturing quality.
Operating temperature range from -65°C to 130°C adapts to a variety of uses in harsh environments. Its dual-row layout and vertical orientation enable high-density stacking, making it particularly suitable for mezzanine and flexible PCB applications.
Industries and projects benefiting from this pin header include industrial automation, PCB prototyping, sensor systems, communications equipment, laboratory instrumentation, and commercial electronics.
Package contains one Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header, model 77313-101-14LF. Browse similar PCB headers and connectors from leading brands in the Electronics & Electricals category for additional solutions.
Explore more PCB Pin Headers and electronic connectors from Amphenol Communications Solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 1500V, making it suitable for demanding electronic applications.
It has a current rating of 3A, which allows it to handle various electronic connections effectively.
The contacts are spaced at a standard pitch of 2.54 mm, facilitating versatile PCB layouts.
This model features 14 contacts, providing multiple connection points for board-to-board and wire-to-board applications.
It uses solder termination, which provides a permanent bond suitable for high-vibration or critical applications.
The maximum operating temperature is 130°C, allowing it to function in high-temperature environments.
The tail pin length is 2.41 mm, ensuring compatibility with standard PCB designs.
The housing is constructed from thermoplastic, which contributes to its performance in high-temperature conditions.
This pin header has a vertical orientation, optimizing space and stacking options on PCBs.
The minimum operating temperature is -65°C, allowing it to be used in harsh environments.
It has UL Approval E66906, ensuring compliance with industrial quality standards.
It is suitable for applications in industrial automation, PCB prototyping, sensor systems, and communications equipment.
