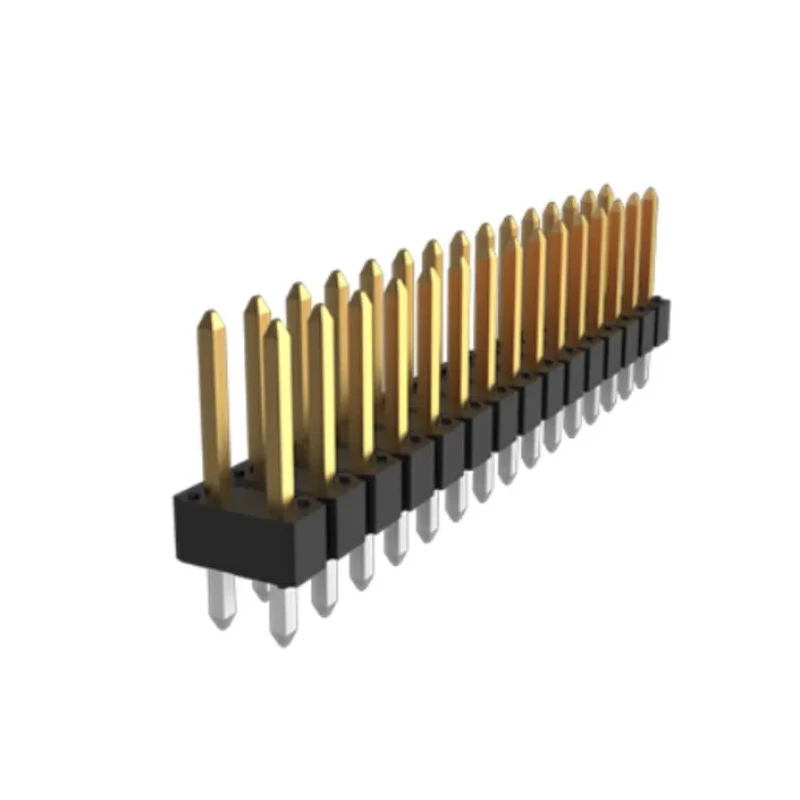

Amphenol Communications Solutions BergStik Series Vertical Through Hole Pin Header, 12 Contacts, 2.54 mm 77313-124-12LF

Amphenol Communications Solutions 77313-124-12LF BergStik Series Vertical Through Hole Pin Header delivers superior performance for board-to-board, wire-to-board, and cable-to-board interconnect solutions. With 12 male contacts spaced at a 2.54 mm pitch organized in 2 rows, the header provides reliable connectivity for electronic equipment and devices requiring robust electrical parameters.

Designed for secure mounting, the vertical through hole configuration ensures strong mechanical integrity during soldering, making it suitable for industrial, instrumentation, medical, and commercial applications. The unshrouded design allows dual entry, enabling mating from either the top or bottom, which gives more flexibility in meeting varied stack height requirements.

Offers 12 male contacts with 2.54 mm pitch for optimal spacing. Features vertical through hole mounting for secure PCB integration. Rated for 3A current and 1500V voltage, supporting robust electrical performance. Unshrouded, dual-entry design allows mating from top or bottom for versatile configurations.

Constructed from high-temperature thermoplastic and phosphor bronze for durability and compatibility with reflow soldering.

Tail pin length is 2.9 mm, and mating pin length is 6.75 mm, supporting precise PCB fit. The housing is made of thermoplastic, with contact plating and contact material both of phosphor bronze. Operating temperature ranges from -65°C to 130°C, making it suitable for demanding environments.

UL Approval: E66906 ensures a recognized safety standard for industrial and laboratory equipment. Applications include PCB assembly in consumer electronics, industrial automation, laboratory instruments, and commercial systems requiring high reliability interconnects.
