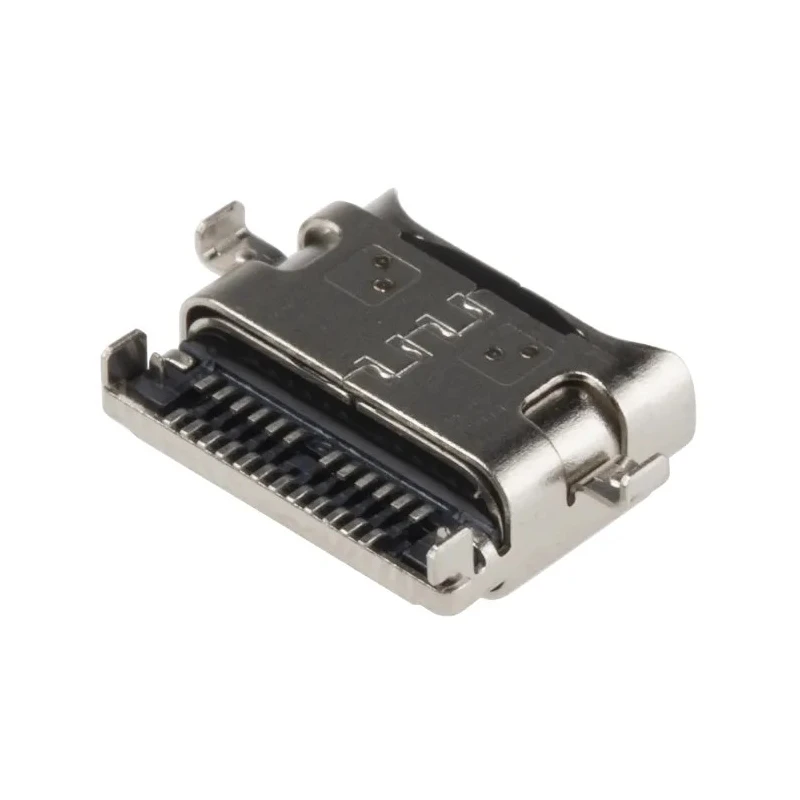

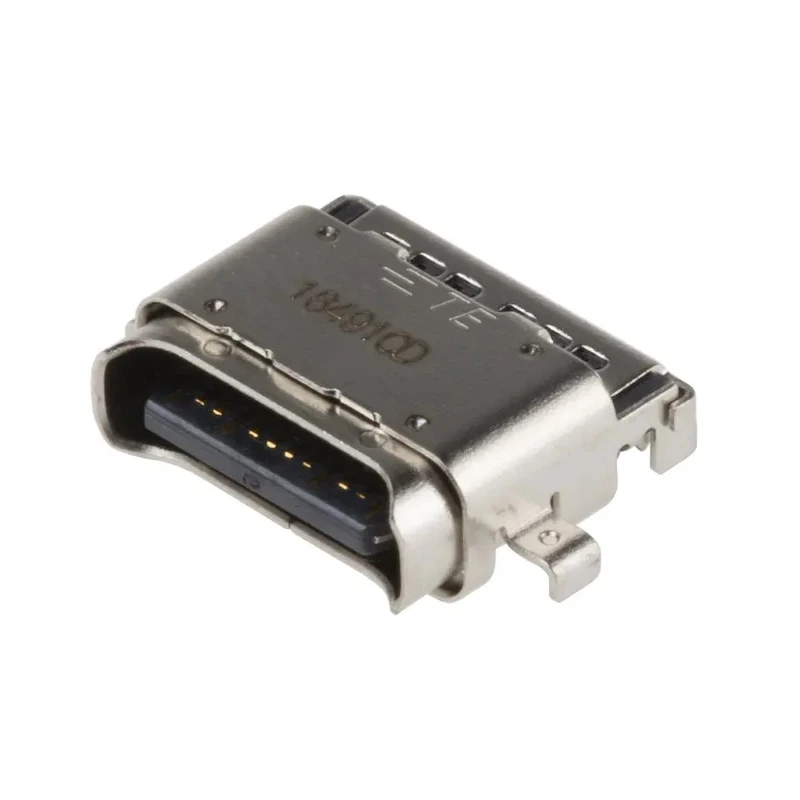

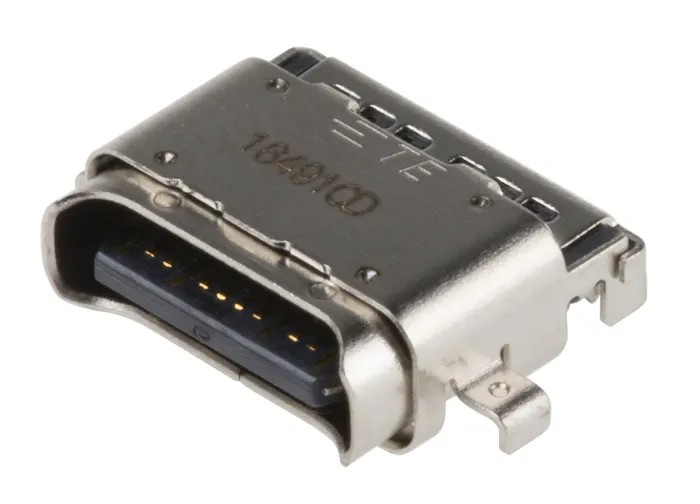

TE Connectivity USB Type C Straight Surface Mount Female Connector, 1 Port, IPX4, USB 3.1, 6.25A, 30V, 2295018-2

TE Connectivity presents the 2295018-2 USB Type C Straight Surface Mount Female Connector, engineered to deliver reliable, high-speed connectivity for various electronic and industrial applications. This USB Connector features a surface mount design and is constructed with robust materials, making it an ideal choice for demanding environments where performance and durability are paramount.

This female connector incorporates the latest USB Type C standard, allowing reversible plug orientation and supporting USB 3.1 protocol. With a single port configuration and IPX4 ingress protection, it is splash-proof and suitable for applications requiring both fast data transfer and reliable power delivery. The stainless steel shell and copper alloy contacts ensure excellent mechanical and electrical performance, and solder termination provides secure PCB mounting.

Surface mount female USB Type C connector is designed for modern high-speed electronics. Single port, straight orientation allows for efficient PCB layout and integration. IPX4 rating provides resistance against water splashes, supporting use in semi-industrial and commercial environments.

Supports up to 6.25A of current and 30V of voltage, making it suitable for high power and fast charging applications. Compliant with USB 3.1 standards, supporting data transfer rates up to 10 Gbps. Stainless steel shell resists corrosion, and copper alloy contacts provide reliable electrical connectivity.

Solder termination ensures secure attachment to the PCB in production environments. Operational temperature range from -30°C to 85°C for use in varied industrial and commercial settings.

This connector is widely used in data centers, factory automation systems, PCs, laptops, tablets, power packs, business equipment, and lighting systems that require USB 3.1 performance. Its compact and robust design also makes it suitable for mobile and portable electronic devices.

TE Connectivity’s USB C connectors are engineered for ease of use and compatibility, featuring board retention for robust mounting, elimination of unwanted electromagnetic interference, backward compatibility via adapters, and support for delivering data, power, and audio/video signals over a single connection.

Typical industrial and commercial use cases include assembly lines, laboratory testing equipment, information technology infrastructure, and portable consumer electronics. The product comes delivered ready for assembly as part of an efficient manufacturing workflow.
