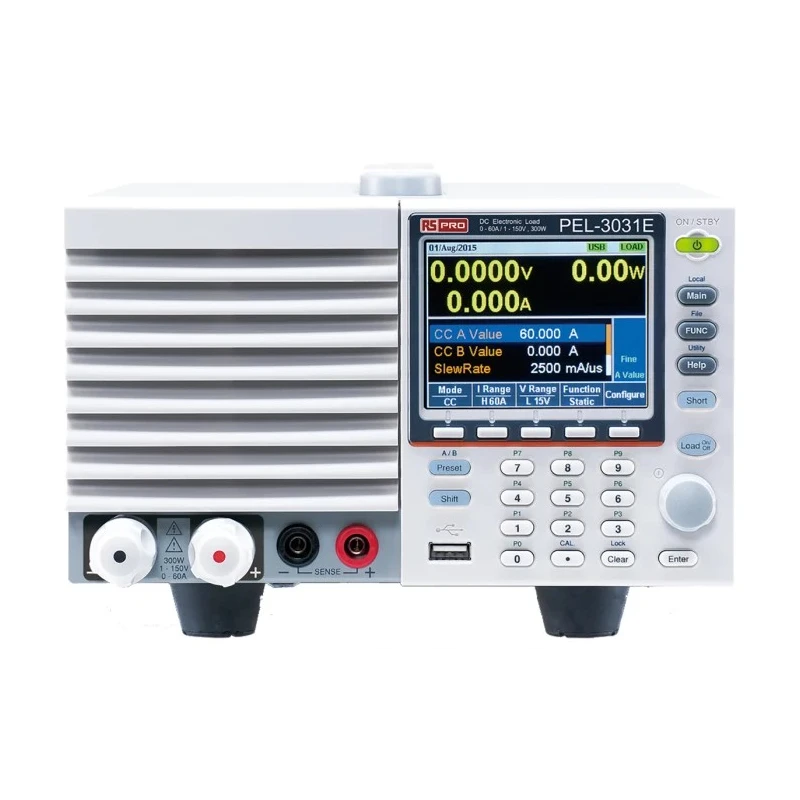

RS PRO PEL Series Electronic DC Load 122-5545, Programmable, 3–300 W, 1–150 V, 0–60 A

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PEL Series Electronic DC Load 122-5545, Programmable, 3 - 300 W, 1 - 150 V, 0 - 60 A

Name: RS PRO PEL Series Electronic DC Load 122-5545, Programmable, 3 - 300 W, 1 - 150 V, 0 - 60 A
Brand: RS PRO
SKU: 90906
Price: 2482.72 USD
Availability: InStock



Category Bench Power Supply Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	122-5545
Series	PEL
Load Type	Programmable
Operating Modes	Constant Current, Constant Power, Constant Resistance, Constant Voltage
Interface Type	GPIB, USB
Constant Voltage Mode Range	1/150 V
Constant Current Mode Range	0 to 60 A
Constant Resistance Mode Range	0.016 to 5000Ω
Constant Wattage Mode Range	3 to 300 W

Key Features

Provides a programmable DC load with a wide 3 - 300 W power range.
Supports constant voltage mode from 1 - 150 V for flexible application use.
Delivers constant current mode up to 60 A for comprehensive testing capabilities.
Features multiple operating modes including CC, CV, CR, and CP for diverse test requirements.
Equipped with GPIB and USB interfaces for easy connectivity and control.
Soft Start and Timer functions enhance safety and adaptability to different test scenarios.
Ideal for laboratory, manufacturing, battery testing, and power supply validation applications.
Includes advanced protection functions such as OCP, OVP, OPP, OTP, RVP, and UVP.

Product Description

RS PRO PEL Series Electronic DC Load model 122-5545 is a programmable single-output instrument designed for rigorous testing of DC power sources in laboratory and industrial environments. With a power handling range from 3 to 300 W, voltage range from 1 V to 150 V, and current sink capabilities up to 60 A, this electronic load accommodates a broad spectrum of test requirements for power supply equipment, batteries, adapters, and portable chargers.

The electronic load offers seven operational modes, allowing users to select constant current, constant power, constant resistance, constant voltage, or combinations thereof for enhanced flexibility. Its Static function enables sinking a fixed current, while Dynamic and Sequence functions allow periodic switching between sink conditions and simulating consecutive current changes to mirror real-world load profiles. The Soft Start function allows adjustment of current rise times for controlled ramping and safe operation.

Programmable load operation with comprehensive control over voltage, current, resistance, and power. Supports GPIB and USB interfaces for remote control and integration with test systems. Provides advanced test adaptability with Sequence, Dynamic, Static, and Timer functions.

Utilizes remote sense terminals to compensate voltage drops in test leads for precise readings. Includes protection features - Over Current, Over Voltage, Over Power, Over Temperature, Reverse Voltage, Under Voltage Protection - ensuring reliable testing and safety.

Applicable for battery discharge tests, product development, and compliance verification.

Designed for industrial and laboratory applications, the RS PRO 122-5545 DC load empowers professionals in power supply manufacturing, battery testing, electronics development, and solar panel evaluation to validate performance and establish compliance with safety standards. Its programmable features and connectivity make it an essential tool for automated testing, R&D, and quality assurance.

Commonly used in electronic component verification, charger and adapter performance testing, power supply equipment, laboratory studies, and solar panel research and development. Browse additional test and measurement equipment from RS PRO and explore Bench Power Supply solutions at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a power handling range of 3 to 300 W.

It supports a constant voltage mode range from 1 to 150 V and can sink current up to 60 A.

This unit features multiple operating modes including Constant Current, Constant Power, Constant Resistance, and Constant Voltage.

It is equipped with GPIB and USB interfaces for easy connectivity and control.

The constant resistance mode range is from 0.016 to 5000Ω.

Yes, it includes Dynamic and Sequence functions that allow periodic switching between sink conditions to mimic real-world load profiles.

It includes advanced protection features such as Over Current, Over Voltage, Over Power, Over Temperature, Reverse Voltage, and Under Voltage Protection.

It is ideal for laboratory, manufacturing, battery testing, and power supply validation applications.

The Soft Start function allows for controlled ramping of current rise times, enhancing safety during operation.

The specific weight and dimensions are not provided in the product details.

The remote sense terminals compensate for voltage drops in test leads, ensuring precise readings during testing.

Yes, its programmable features and connectivity make it an essential tool for automated testing and quality assurance.
