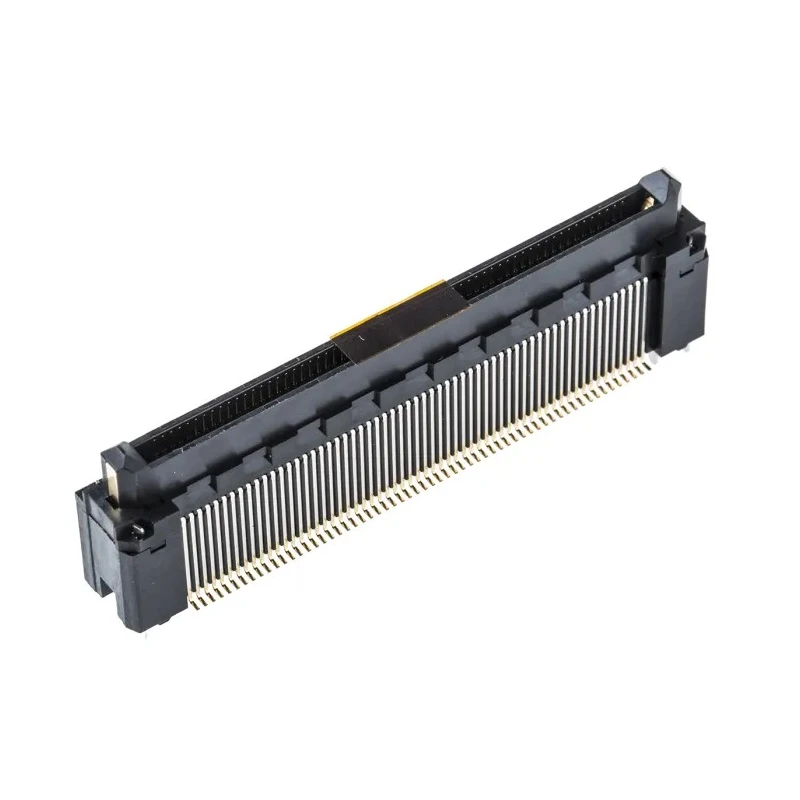

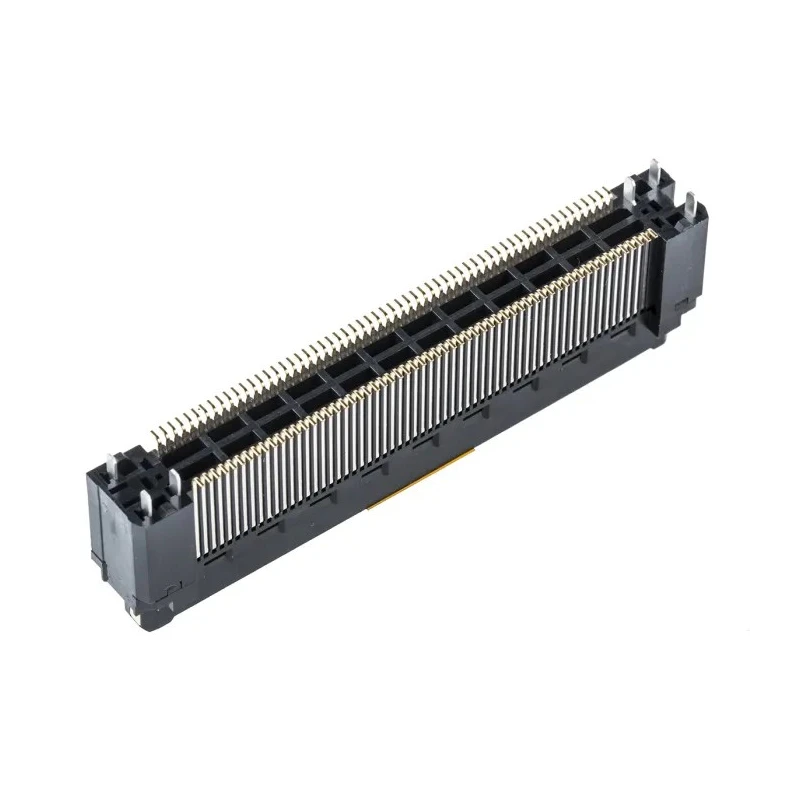

Hirose FunctionMAX FX18 Series PCB Header 120 Contacts 0.8 mm Pitch 2 Row Shrouded Surface Mount

Hirose FX18-120P-0.8SV10 is a FunctionMAX FX18 Series straight surface mount PCB header engineered for high-speed and high-reliability board-to-board connections in advanced electronic assemblies. Featuring 120 contacts distributed in two rows at a 0.8 mm pitch, this shrouded header is optimized for applications where both space efficiency and transmission quality are paramount.

With a durable polyamide resin housing and gold-plated phosphor bronze contacts, the connector ensures robust mechanical strength and long-term corrosion resistance. The shrouded design assists precise mating and further protects the contacts, supporting both coplanar, vertical, and stacking mating styles typically required in modern industrial and commercial environments.

Supporting high-speed signal transmission rates up to 10 Gbit/s and PCI Express Ver. 2.0, the FX18 Series delivers versatile performance suitable for sectors needing rapid, reliable data exchange. The advanced multifunctional contacts include dedicated ground and power supply contacts, minimizing cross-talk, reducing pin count, enabling space-saving designs, and enhancing PCB retention.

The surface mount technology (SMT) and solder termination facilitate integration into automated production lines, ensuring both cost efficiency and production scalability. Large mating guides and through-hole pins provide increased resistance to wrenching forces and simplify installation and removal. The header is rated for 100 V and supports up to 3A per pin, with a total of 12A possible across power supply contacts.

High-speed board-to-board header designed for advanced industrial electronics applications. Offers 120 contacts arranged in 2 rows with a 0.8 mm pitch for reliable data transmission. Shrouded male connector with gold-plated phosphor bronze contacts ensures durability and low contact resistance.

Polyamide resin housing provides excellent mechanical strength and heat resistance. Supports coplanar, vertical, and stacking mating with large mating guides for easier assembly. Surface mount configuration with solder termination suitable for automated production lines.

Accommodates high-speed transmission up to 10 Gbit/s and PCI Express Ver. 2.0. Advanced multifunctional contacts, including ground and power supply, reduce cross-talk and increase PCB retention. Operating temperature range from -55°C to 85°C for extended environmental reliability.

Ideal for medical equipment, industrial controllers, motors, servers, measurement equipment, and smart meters.

Applications span industrial controllers, medical devices, servers, measurement equipment, and smart meters, making the FX18-120P-0.8SV10 a preferred connector for equipment demanding superior electrical performance. As part of Hirose's FunctionMAX product line, this connector is built to meet the demanding needs of advancing technologies within the industrial market and performs reliably in diverse environments.
